Configuring links on the dashboard
Written by
Updated at April 24, 2025
To configure links between widgets:
Warning
If you use a new DataLens object model with workbooks and collections:
- In the left-hand panel, select
Collections and workbooks. - Open the appropriate workbook and select an object.
Follow the guide from step 2.
-
In the left-hand panel, click
Dashboards and select the dashboard you need. -
In the upper-right corner, click Edit.
-

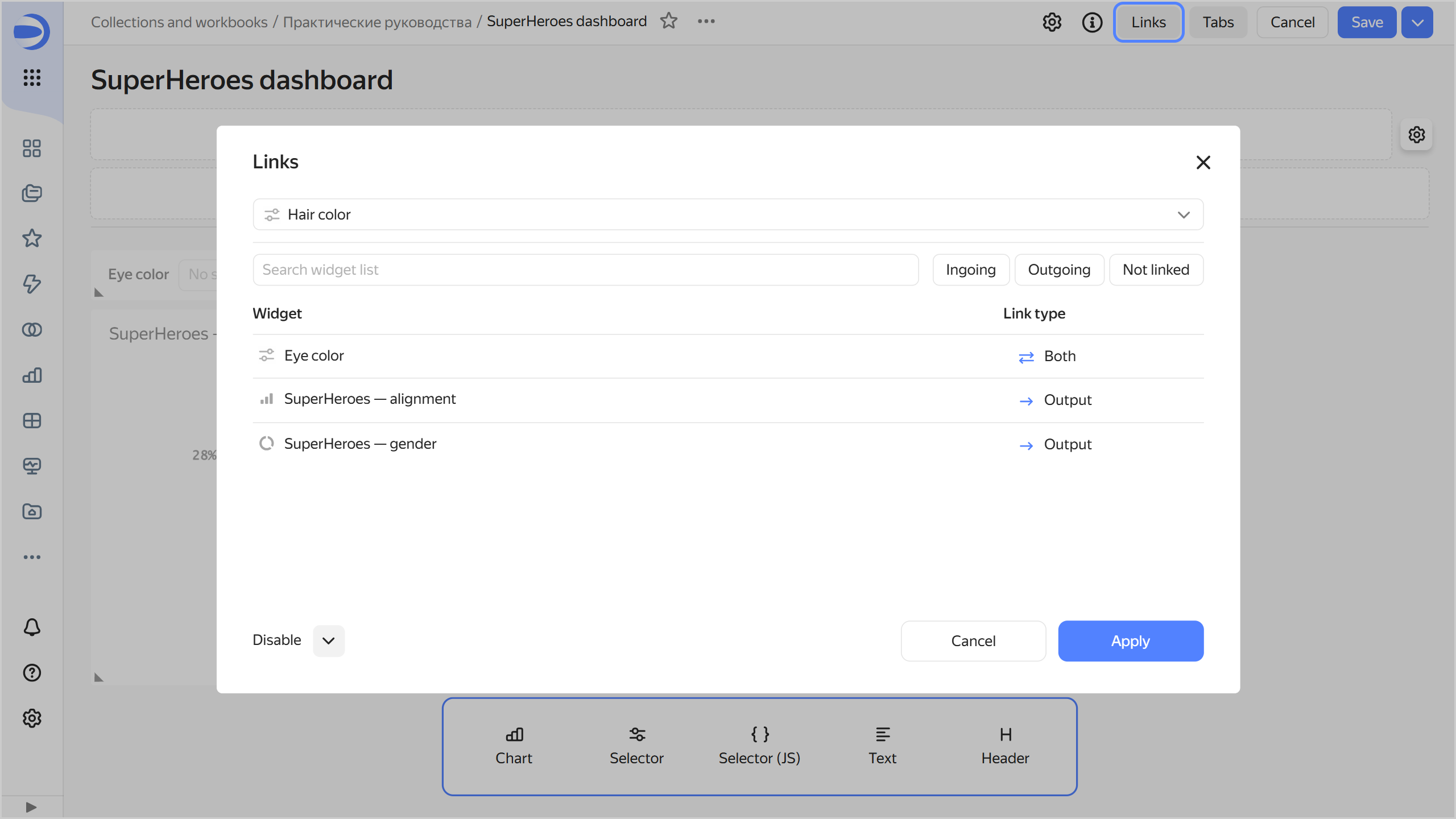

In the top-right corner of the edit window, click Links.
Note
To open the link settings window for a widget, click
to the right of the widget. -
At the top of the window that opens, select the widget you want to set up links for. A list of other widgets will appear below.
-
Select link type for each widget you want to link:
- Two-way: Two-way influence between the widgets.
- Incoming: Incoming influence.
- Outgoing: Outgoing influence.
- Not linked: Widgets are not linked together and have no mutual influence.
To unlink several widgets in one go, click Disable at the bottom left and select:
All
: All widgetsCharts
: All chartsSelectors
: All selectors
-
Click Apply below.
-
-
In the top-right corner of the dashboard, click Save.
