Versioning

Dashboard versioning is the ability to store the history of dashboard configuration changes using versions. A list of versions is available to users with the lowest level of access to the dashboard: View.

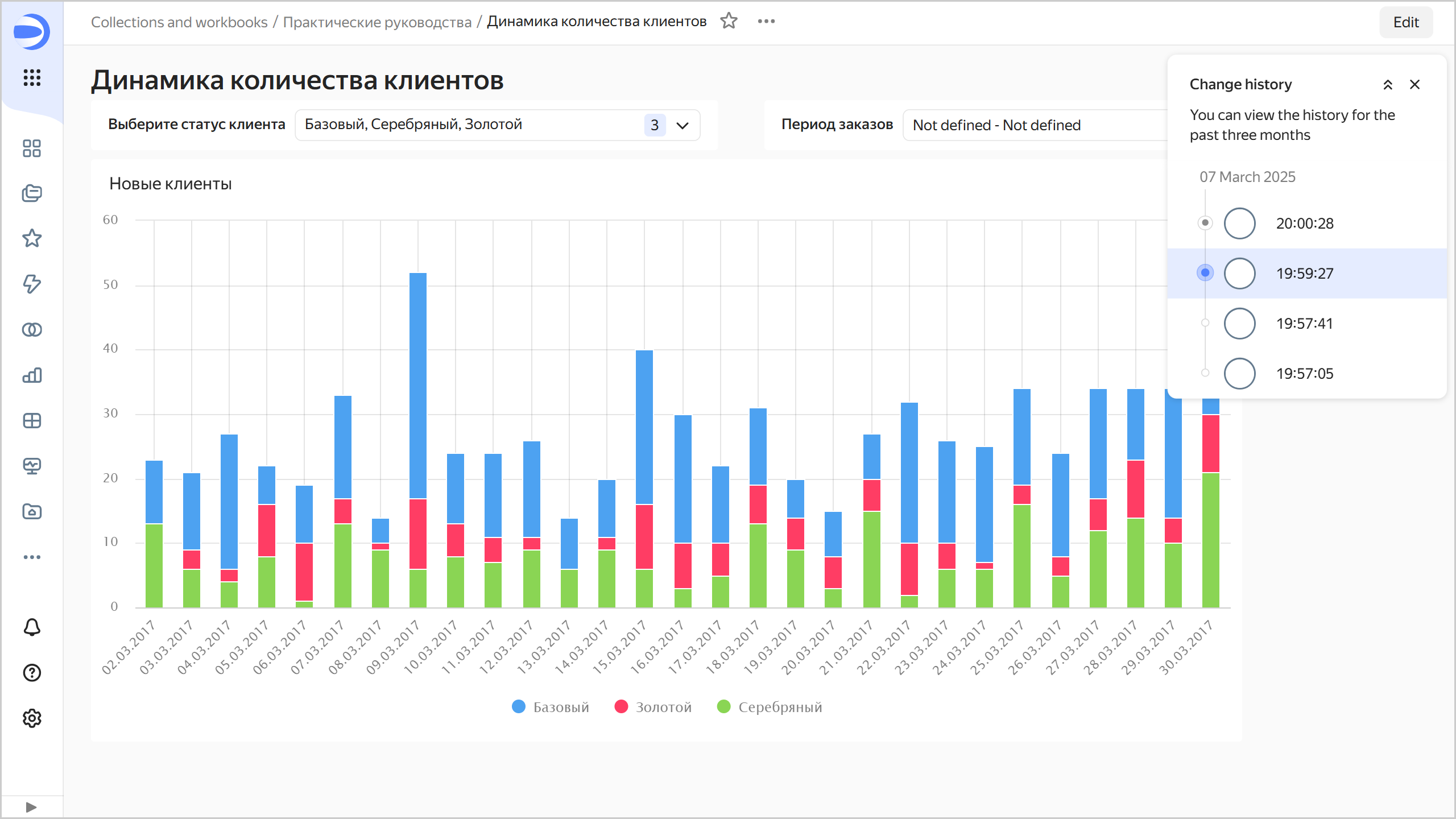

To go to the list of versions, click the icon at the top of the screen and select Change history.

To select a version from the list, click it. The version number will be displayed as the value of the revId parameter in the dashboard address string. Clicking on a link with the version number in the revId parameter will open the relevant version of the dashboard directly.

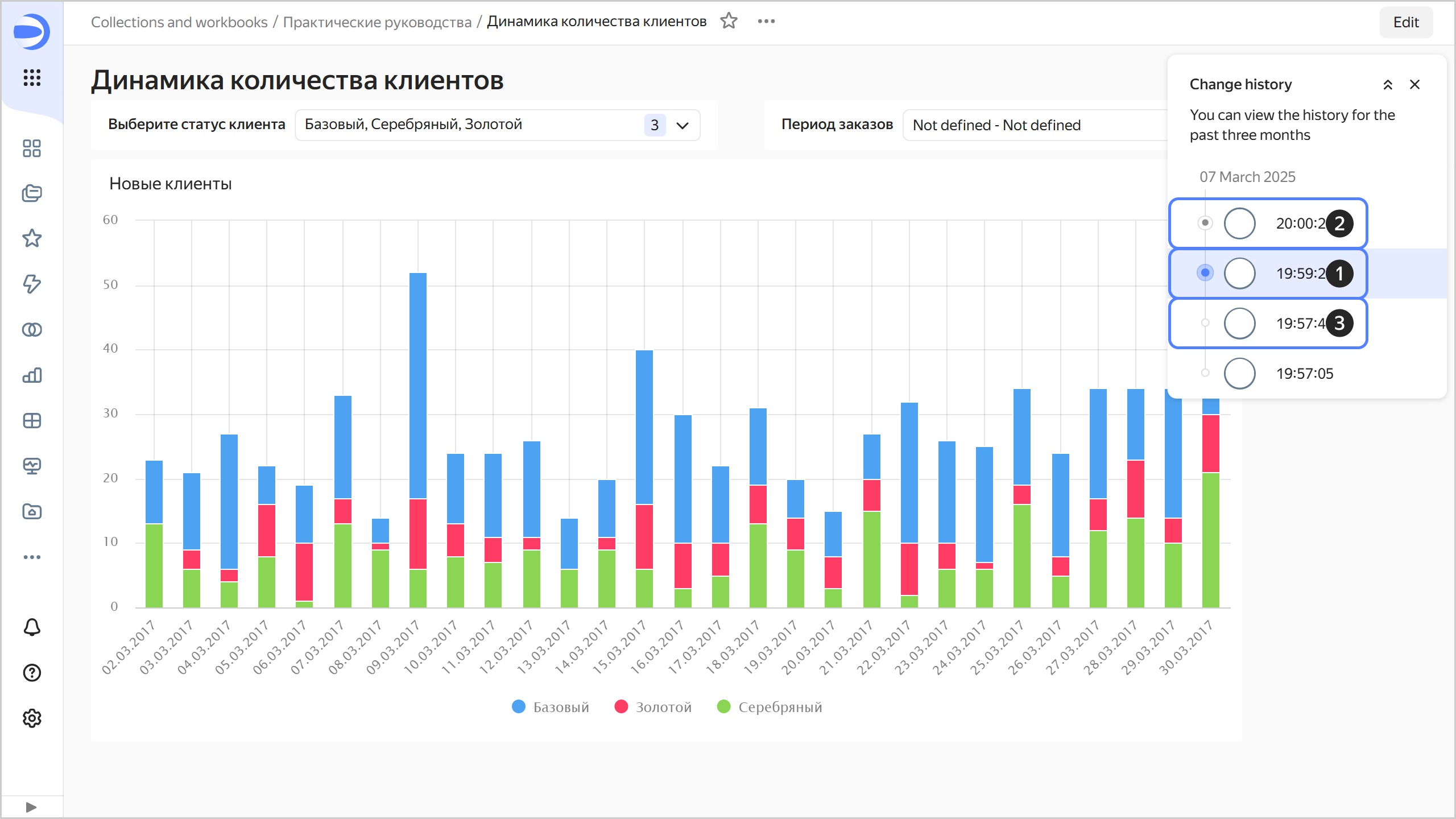

Version typesVersion types

The following distinct versions are available:

• Actual. The most recent saved version of a dashboard. It is displayed for all users that open the dashboard for viewing from the navigation bar. Only one version of a dashboard can be current.

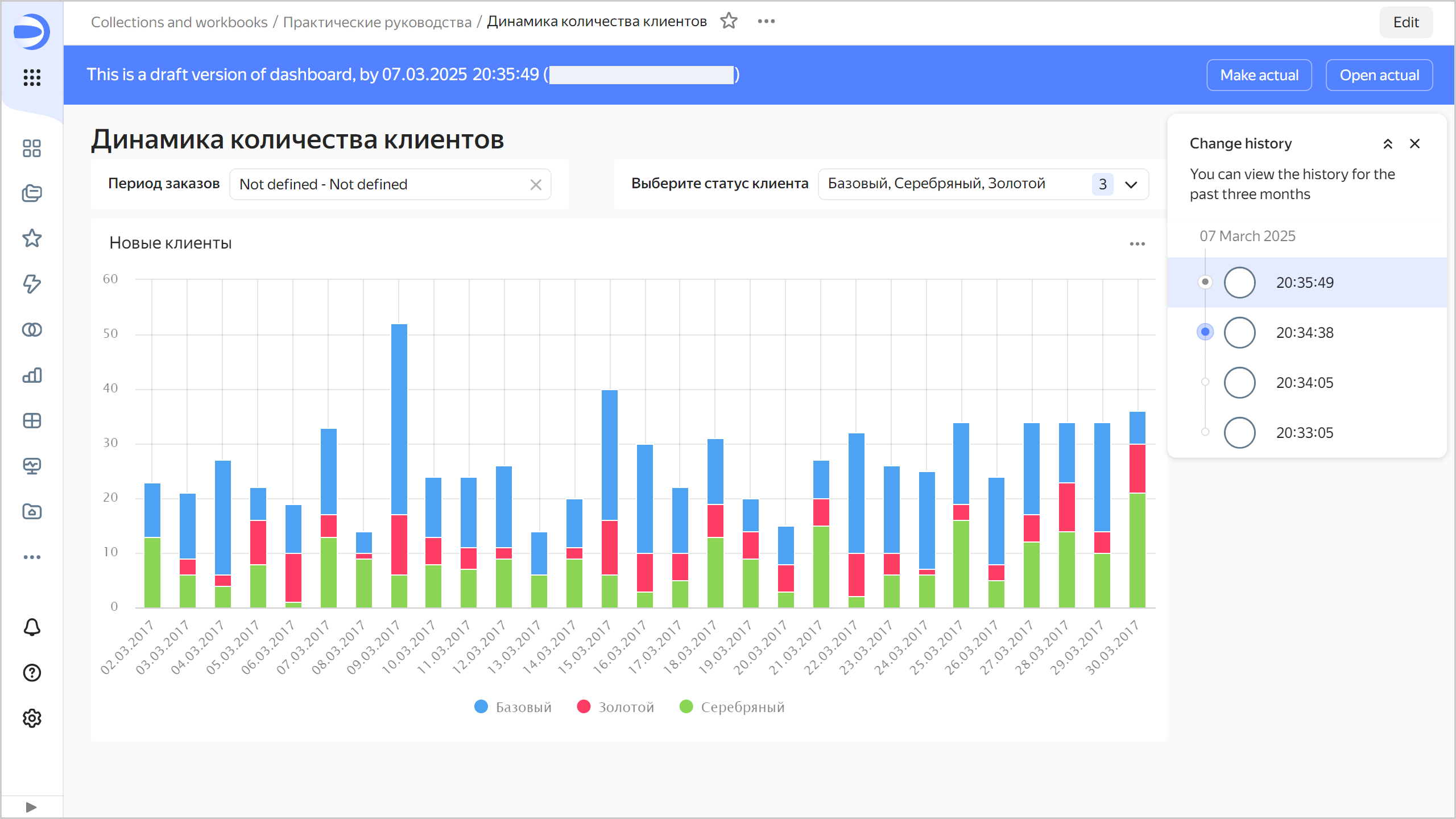

• Draft. A version with unsaved dashboard changes. The main users do not see changes being made to a draft. This enables you to hide dashboard edits until a version update. A dashboard can only have one draft.

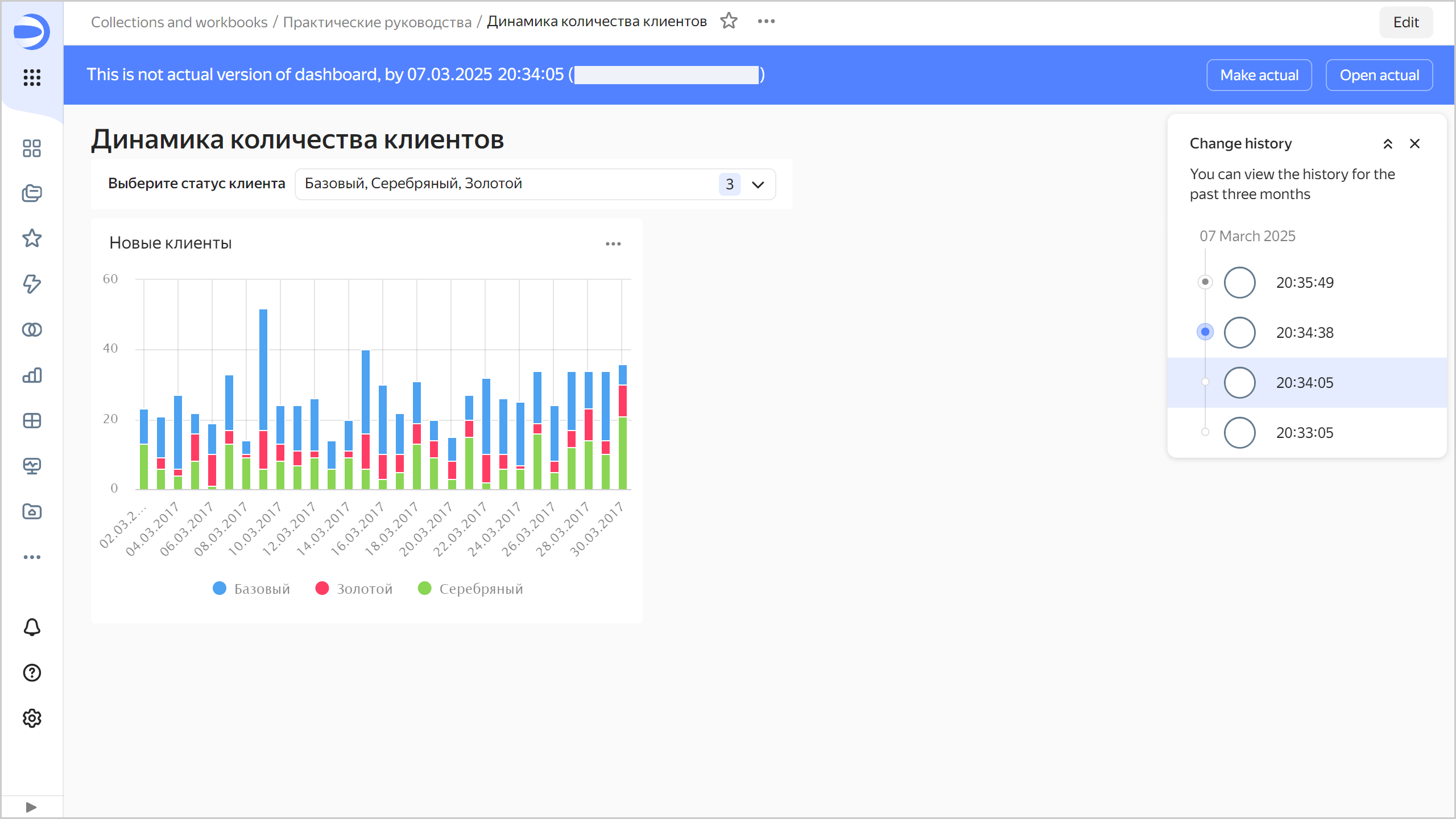

• Not actual. A version that is neither actual nor a draft.



Creating a new versionCreating a new version

A new version is automatically created when you click Save in dashboard edit mode. Dashboard configuration changes that result in a new version:

• Changing dashboard settings that can be accessed by clicking at the top of the screen.
• Adding, renaming, or deleting dashboard tabs.
• Editing links.
• Adding and removing widgets.
• Editing widgets, such as Title and Text.
• Editing widget tabs.
• Editing selector settings.

LimitationsLimitations

• The change history only contains a list of dashboard versions and includes: version type, save date and time, and the author of the edits.

• Dashboard versions do not include:

  • Access permission changes (this operation is separate from editing the dashboard itself).
  • Chart setting changes, that is, changes made from the Wizard, QL Chart, or Editor.
  • Changes to dataset settings made from the dataset interface.
  • Changes to connection settings made using the interface for editing connection parameters.
  • Data changes to the source (rows added, updated, or deleted in the data source).

• Versions do not display a list of changes. You can only view the saved status of the dashboard configuration.
