Creating an OpenCart online store using Terraform

Written by
Updated at November 26, 2024

To create an OpenCart online store using Terraform:

  1. Prepare your cloud.
  2. Create an infrastructure.
  3. Configure OpenCart.

If you no longer need the resources you created, delete them.

Prepare your cloud

Sign up for Yandex Cloud and create a billing account:

  1. Go to the management console and log in to Yandex Cloud or create an account if you do not have one yet.
  2. On the Yandex Cloud Billing page, make sure you have a billing account linked and it has the ACTIVE or TRIAL_ACTIVE status. If you do not have a billing account, create one.

If you have an active billing account, you can go to the cloud page to create or select a folder for your infrastructure to operate in.

Learn more about clouds and folders.

The cost of supporting an OpenCart online store infrastructure includes:

Create an infrastructure

With Terraform, you can quickly create a cloud infrastructure in Yandex Cloud and manage it using configuration files. These files store the infrastructure description written in HashiCorp Configuration Language (HCL). If you change the configuration files, Terraform automatically detects which part of your configuration is already deployed, and what should be added or removed.

Terraform is distributed under the Business Source License. The Yandex Cloud provider for Terraform is distributed under the MPL-2.0 license.

For more information about the provider resources, see the documentation on the Terraform website or mirror website.

To host your OpenCart online store via Terraform:

  1. Install Terraform, get the authentication credentials, and specify the source for installing the Yandex Cloud provider (see Configure a provider, step 1).

  2. Prepare files with the infrastructure description:

    1. Clone the repository with configuration files:

      git clone https://github.com/yandex-cloud-examples/yc-opencart-store.git

    2. Go to the directory with the repository. Make sure it contains the following files:

      • opencart.tf: New infrastructure configuration.
      • opencart.auto.tfvars: User data file.

    1. Create a directory for configuration files.

    2. In the directory, create:

      1. opencart.tf configuration file:

        opencart.tf
        # Declaring variables for confidential parameters

variable "folder_id" {
  type = string
}

variable "vm_user" {
  type = string
}

variable "ssh_key_path" {
  type = string
}

variable "db_user" {
  type = string
}

variable "db_password" {
  type      = string
  sensitive = true
}

# Adding other variables

locals {
  network_name = "network-1"
  subnet_name1 = "subnet-1"
  subnet_name2 = "subnet-2"
  sg_db_name   = "opencart-sg"
  sg_vm_name   = "opencart-sg-vm"
  vm_name      = "opencart"
  cluster_name = "opencart"
  db_name      = "db1"
}

# Configuring a provider

terraform {
  required_providers {
    yandex = {
      source  = "yandex-cloud/yandex"
      version = ">= 0.47.0"
    }
  }
}

provider "yandex" {
  folder_id = var.folder_id
}

# Creating a cloud network

resource "yandex_vpc_network" "network-1" {
  name = local.network_name
}

# Creating subnets

resource "yandex_vpc_subnet" "subnet-1" {
  name           = local.subnet_name1
  zone           = "ru-central1-a"
  network_id     = yandex_vpc_network.network-1.id
  v4_cidr_blocks = ["192.168.1.0/24"]
}

resource "yandex_vpc_subnet" "subnet-2" {
  name           = local.subnet_name2
  zone           = "ru-central1-b"
  network_id     = yandex_vpc_network.network-1.id
  v4_cidr_blocks = ["192.168.2.0/24"]
}

# Creating security groups

resource "yandex_vpc_security_group" "opencart-sg" {
  name       = local.sg_db_name
  network_id = yandex_vpc_network.network-1.id

  egress {
    protocol       = "ANY"
    description    = "any"
    v4_cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    protocol       = "TCP"
    description    = "ext-https"
    v4_cidr_blocks = ["0.0.0.0/0"]
    port           = 3306
  }
}

resource "yandex_vpc_security_group" "opencart-sg-vm" {
  name       = local.sg_vm_name
  network_id = yandex_vpc_network.network-1.id

  egress {
    protocol       = "ANY"
    description    = "any"
    v4_cidr_blocks = ["0.0.0.0/0"]
    from_port      = 0
    to_port        = 65535
  }

  ingress {
    description    = "HTTP"
    protocol       = "TCP"
    v4_cidr_blocks = ["0.0.0.0/0"]
    port           = 80
  }

  ingress {
    protocol       = "TCP"
    description    = "ssh"
    v4_cidr_blocks = ["0.0.0.0/0"]
    port           = 22
  }

  ingress {
    protocol       = "TCP"
    description    = "ext-https"
    v4_cidr_blocks = ["0.0.0.0/0"]
    port           = 443
  }
}

# Specifying a prebuilt VM image

resource "yandex_compute_image" "opencart-image" {
  source_family = "opencart"
}

# Creating a VM instance

resource "yandex_compute_instance" "opencart" {
  name        = "opencart"
  platform_id = "standard-v3"
  zone        = "ru-central1-a"

  resources {
    core_fraction = 20
    cores         = 2
    memory        = 4
  }

  boot_disk {
    initialize_params {
      image_id = yandex_compute_image.opencart-image.id
      type     = "network-ssd"
      size     = "13"
    }
  }

  network_interface {
    subnet_id          = yandex_vpc_subnet.subnet-1.id
    security_group_ids = [yandex_vpc_security_group.opencart-sg-vm.id]
    nat                = true
  }

  metadata = {
    user-data = "#cloud-config\nusers:\n  - name: ${var.vm_user}\n    groups: sudo\n    shell: /bin/bash\n    sudo: ['ALL=(ALL) NOPASSWD:ALL']\n    ssh_authorized_keys:\n      - ${file("${var.ssh_key_path}")}"
  }
}

# Creating a cluster MySQL®
# If you do not need a cluster, delete the code block creating the MySQL® cluster, database, and user

resource "yandex_mdb_mysql_cluster" "opencart-mysql" {
  name               = local.cluster_name
  environment        = "PRODUCTION"
  network_id         = yandex_vpc_network.network-1.id
  version            = "8.0"
  security_group_ids = [yandex_vpc_security_group.opencart-sg.id]

  resources {
    resource_preset_id = "s2.micro"
    disk_type_id       = "network-ssd"
    disk_size          = "10"
  }

  host {
    zone             = "ru-central1-a"
    subnet_id        = yandex_vpc_subnet.subnet-1.id
    assign_public_ip = false
  }

  host {
    zone             = "ru-central1-b"
    subnet_id        = yandex_vpc_subnet.subnet-2.id
    assign_public_ip = false
  }
}

# Creating a database for MySQL®


resource "yandex_mdb_mysql_database" "db1" {
  cluster_id = yandex_mdb_mysql_cluster.opencart-mysql.id
  name       = local.db_name
}

# Creating a user for MySQL®

resource "yandex_mdb_mysql_user" "user1" {
  cluster_id = yandex_mdb_mysql_cluster.opencart-mysql.id
  name       = var.db_user
  password   = var.db_password
  permission {
    database_name = yandex_mdb_mysql_database.db1.name
    roles         = ["ALL"]
  }
}

      2. opencart.auto.tfvars user data file:

        opencart.auto.tfvars
        folder_id    = "<folder_ID>"
vm_user      = "<VM_user_name>"
ssh_key_path = "<path_to_public_SSH_key>"
db_user      = "<DB_user_name>"
db_password  = "<DB_password>"

    For more information about the parameters of resources used in Terraform, see the provider documentation:

  3. In the opencart.auto.tfvars file, set the user-defined parameters:

    • folder_id: Folder ID.
    • vm_user: VM user name.
    • ssh_key_path: Path to the file with a public SSH key to authenticate the user on the VM. For more information, see Creating an SSH key pair.
    • db_user: DB username, e.g., user1.
    • db_password: Password for the database. Password length must be between 8 and 128 characters.

  4. Create resources:

    1. In the terminal, change to the folder where you edited the configuration file.

    2. Make sure the configuration file is correct using the command:

      terraform validate

      If the configuration is correct, the following message is returned:

      Success! The configuration is valid.

    3. Run the command:

      terraform plan

      The terminal will display a list of resources with parameters. No changes are made at this step. If the configuration contains errors, Terraform will point them out.

    4. Apply the configuration changes:

      terraform apply

    5. Confirm the changes: type yes in the terminal and press Enter.

  5. Get the public IP address of the VM: you will need it later to configure OpenCart.

After creating the infrastructure, configure OpenCart.

Configure OpenCart

  1. Open the web interface of the OpenCart online store. In the browser, open http://<VM_public_IP_address>/. The OpenCart settings page opens.

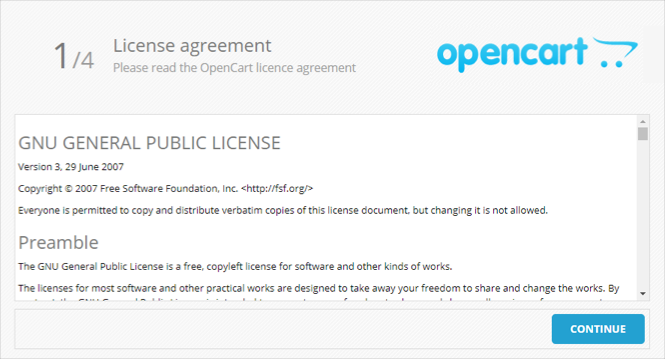

  2. Read the license and click Continue.

    Step 1

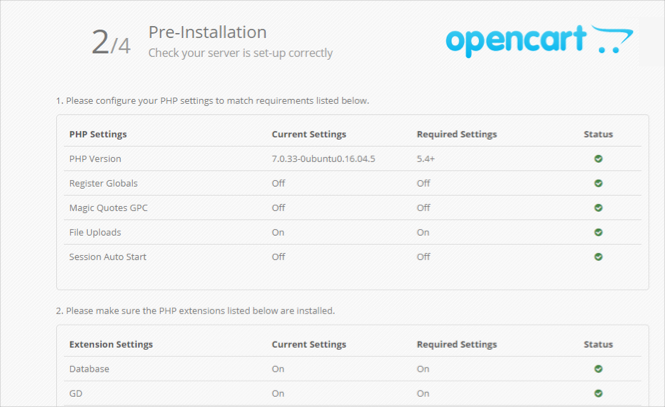

  3. Make sure that all lines with system requirements are marked with green ticks and click Continue.

    Step 2

  4. Set up access to the DB:

    DB connection attributes are generated in a special file when a VM is created:

    1. Log in to the created VM via SSH.

    2. Switch to sudo -i administration mode.

    3. Open default_passwords.txt in the admin's home directory:

      root@opencart:~# cat default_passwords.txt
MYSQL_USER=opencart
MYSQL_PASS=qDbvN1R6tA6ET
MYSQL_ROOT_PASS=5DiVb80l1kXVz
MYSQL_DB=opencart

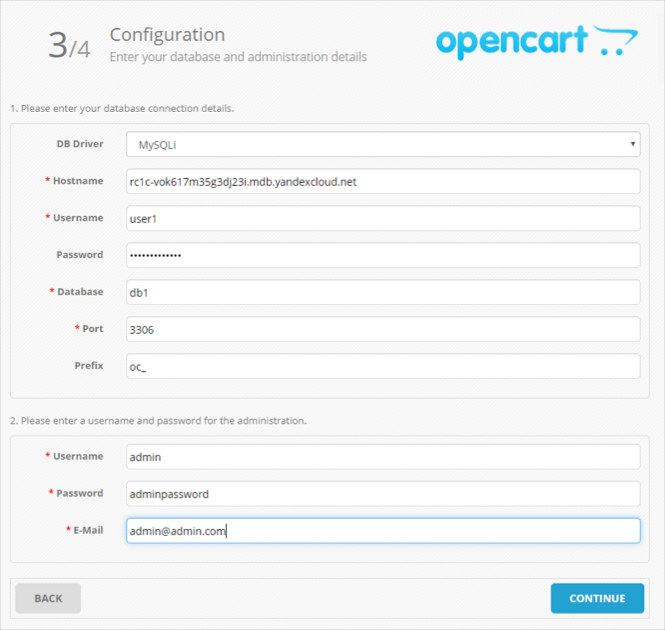

    4. On the OpenCart setup page, in the DB section, enter the relevant data:

      • Username: MYSQL_USER variable value.
      • Database: MYSQL_DB variable value.
      • Password: MYSQL_PASS variable value.

      Leave the other fields unchanged.

    If you are using a Managed Service for MySQL® cluster, enter the required cluster attributes:

    • Hostname: Enter the fully qualified domain name (FQDN) of the created DB. To find out this name:
      1. Open the folder page in the management console in a new browser tab.
      2. Go to the Managed Service for MySQL® section.
      3. Select the cluster you created in the table.
      4. Select the Hosts tab in the left menu.
      5. Hover over the Hostname field (for example, rc1c-vok617m35g3dj23i) and copy the database's FQDN by clicking .
    • Username: Username (user1 in the example).
    • Database: DB name (db1 in the example).
    • Password: User password you specified.

    Leave the other fields unchanged.

  5. Enter the administrator's name, password, and current email address. Then click Continue.

    Step 3

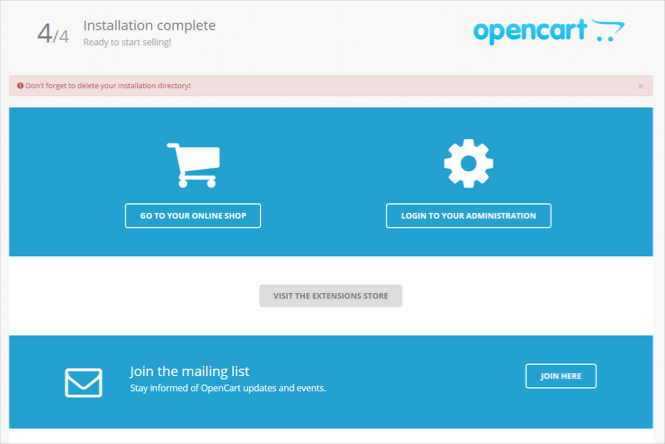

  6. A page will open to notify you that system configuration is complete. To configure the online store, click Login to your administration and enter your admin username and password.

    Step 4

  7. When the installation is complete, log in to the VM via SSH and delete the installation files you no longer need:

    user@opencart:~$ sudo -i
root@opencart:~# rm -rf /var/www/opencart/install/

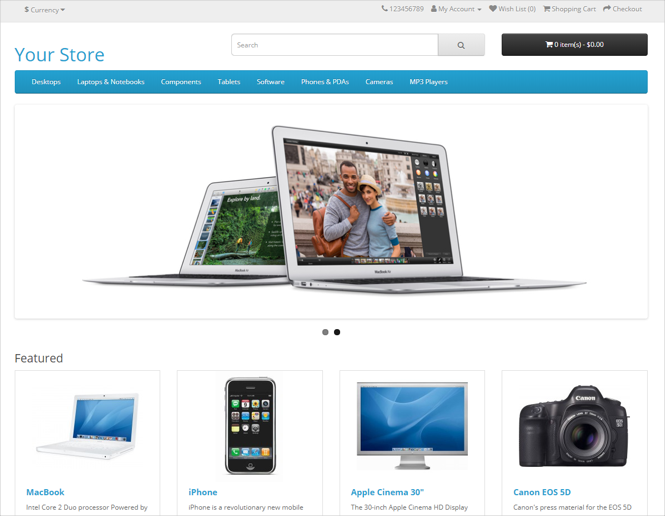

  8. To test the home page, go to http://<VM_public_IP_address>/. You will see your website home page the way your online store visitors will see it.

    Step 5

Delete the resources you created

How to delete the resources you created:

  1. Open the opencart.tf configuration file and delete from it the description of the infrastructure you created.

  2. Apply the changes:

    1. In the terminal, change to the folder where you edited the configuration file.

    2. Make sure the configuration file is correct using the command:

      terraform validate

      If the configuration is correct, the following message is returned:

      Success! The configuration is valid.

    3. Run the command:

      terraform plan

      The terminal will display a list of resources with parameters. No changes are made at this step. If the configuration contains errors, Terraform will point them out.

    4. Apply the configuration changes:

      terraform apply

    5. Confirm the changes: type yes in the terminal and press Enter.
