Adding parameters in dashboard chart settings
To set a parameter:
Warning
If you use a new DataLens object model with workbooks and collections:
- In the left-hand panel, select
Collections and workbooks. - Open the appropriate workbook and select an object.
Follow the guide from step 2.
-
In the left-hand panel, click
Dashboards and select the dashboard you need. If you do not have a dashboard, create one. -
In the top-right corner, click Edit.
-
Select a chart for which you want to set a new parameter.
-
In the top-right corner of the chart, click
. -
In the window that opens, click
Parameters. -
Click
Add parameter at the bottom of the list. -
In the Name column, enter the parameter name (key).
-
In the Value column, click
and set a value for the parameter. You can set multiple values. -
Click Save.
-
In the top-right corner of the dashboard edit window, click Save.
Chart on a dashboard without a parameter
Chart on a dashboard with a parameter
Example of parameters with intervals

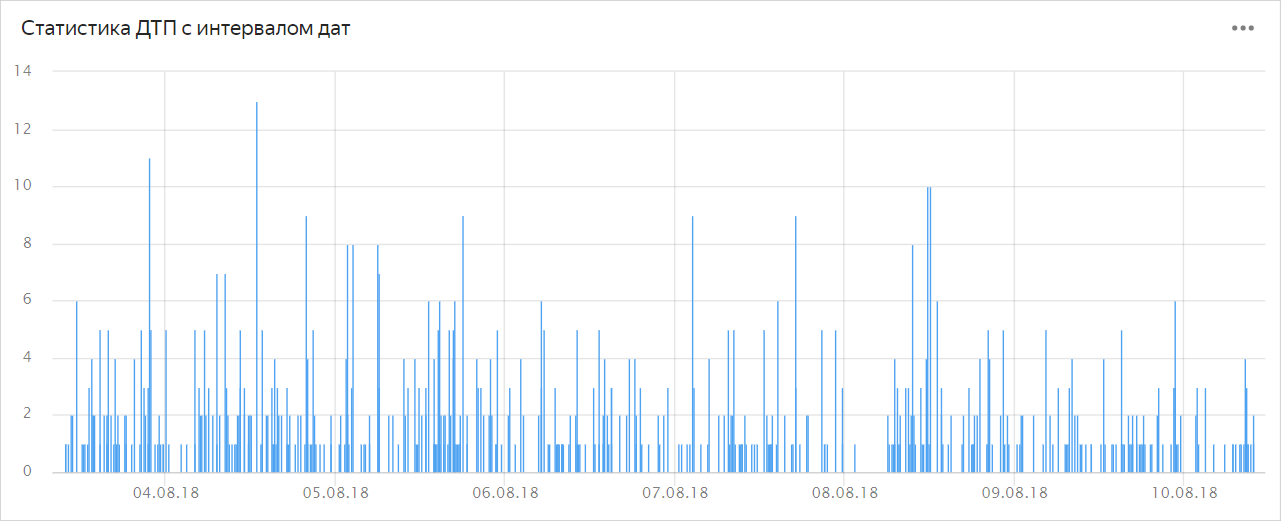

Example of adding a parameter with a date interval
To set the date and time interval between 03-08-2018 09:00:00
and 10-08-2018 10:00:00
, set the parameter to __interval_2018-08-03T09:00:00_2018-08-10T10:00:00
.
Example of adding a parameter with a relative date
To set the date and time interval from the beginning of the last week of 2018 until today, set the parameter to __interval_2018-12-23___relative_+0d
.
To build relative statistics from the beginning of the year, change __relative_-0d
to __relative_-0y_sy
.
Note
Note: If no casting is specified, then for the units of one day and higher, the time is cast to the start of the day, that is, 00:00:00.000
, while casting to the current time is used for smaller time units.
