Methods available in Editor

The supported methods include:

• Editor.generateHtml(arg)
• Editor.getActionParams()
• Editor.getCurrentPage()
• Editor.getId(arg)
• Editor.getLoadedData()
• Editor.getParam(name)
• Editor.getParams()
• Editor.getWidgetConfig()
• Editor.resolveInterval(arg)
• Editor.resolveOperation(args)
• Editor.resolveRelative(arg)
• Editor.setChartsInsights(args)
• Editor.updateActionParams()
• Editor.updateParams(params)
• Editor.wrapFn(conf)

Editor.generateHtml(arg)Editor.generateHtml(arg)

Generates secure HTML markup in a chart.

Supported chart typesSupported chart types

• Chart (Gravity Charts)
• Table
• Advanced chart

ArgumentsArguments

arg: String or JSON object in the following format:

{
  "tag": "<string>",
  "style": "<object>",
  "content": "<string> / <object> / <array_of_objects>"
}

Where:

• tag (string): HTML tag type, required field.

• style (JSON object): Description of CSS properties in the following format:

  {
    "key": "value"
  }


  Where:

  • key (string): CSS property name.
  • value (string): CSS property value.

• content (string, JSON object, array of objects): String, JSON object, or array of objects in the following format:

  {
    "tag": "<string>",
    "style": "<object>",
    "content": "<string> / <object> / <array_of_objects>"
  }


Displaying a tooltip on hoverDisplaying a tooltip on hover

In the markup, you can use the special dl-tooltip tag with the following attributes:

• data-tooltip-content (string, JSON object): Tooltip content. It is specified as a string or in the same way as the arg argument.

• data-tooltip-placement (string): Tooltip location:

  • top: Above the content.
  • bottom: Under the content.
  • left: To the left of the content.
  • right: To the right of the content.

• data-tooltip-open-delay (integer): Tooltip display delay, milliseconds.

• data-tooltip-hide-delay (integer): Tooltip hide delay, milliseconds.

Styles for color themesStyles for color themes

CSS variables for each of the four color schemes are supported:

• Each variable must be defined for both the light and dark themes.
• If their values are not defined for light-hc contrast and/or dark-hc contrast themes, the values from the matching non-contrast themes will be used.
• The variable name should start with the --ce-theme prefix to avoid overriding the DataLens system variables and variables used in Gravity UI.
• A variable only applies to the element inside which it is defined and its descendants.

ExamplesExamples

const result = {
    tag: 'div',
    style: {
        display: 'flex',
        'flex-direction': 'row',
    },
    content: [
        {
            tag: 'a',
            style: {
                display: 'inline-block',
                'vertical-align': 'baseline',
                width: '10px',
                'margin-right': '10px',
            },
            attributes: {
                href: 'https://ya.ru',
                target: '_blank',
            },
            content: {
                tag: 'img',
                attributes: {
                    src: 'https://storage.yandexcloud.net/datalens-public-demo-assets/logo-new.svg',
                    width: '238',
                    height: '32',
                },
                styles: {
                    display: 'block',
                },
            },
        },
        {
            tag: 'span',
            style: {
                'font-style': 'italic',
                color: 'var(--g-color-text-info)',
                'line-height': '1',
                'margin-right': '10px',
            },
         content: 'some text',
        },
        {
            tag: 'svg',
            attributes: {
                'xmlns': 'http://www.w3.org/2000/svg',
                width: 16,
                height: 16,
                fill: 'var(--g-color-text-complementary)',
                viewBox: '0 0 16 16',
            },
            content: {
                tag: 'path',
                attributes: {
                    d: 'M4.355.522a.5.5 0 0 1 .623.333l.291.956A4.979 4.979 0 0 1 8 1c1.007 0 1.946.298 2.731.811l.29-.956a.5.5 0 1 1 .957.29l-.41 1.352A4.985 4.985 0 0 1 13 6h.5a.5.5 0 0 0 .5-.5V5a.5.5 0 0 1 1 0v.5A1.5 1.5 0 0 1 13.5 7H13v1h1.5a.5.5 0 0 1 0 1H13v1h.5a1.5 1.5 0 0 1 1.5 1.5v.5a.5.5 0 1 1-1 0v-.5a.5.5 0 0 0-.5-.5H13a5 5 0 0 1-10 0h-.5a.5.5 0 0 0-.5.5v.5a.5.5 0 1 1-1 0v-.5A1.5 1.5 0 0 1 2.5 10H3V9H1.5a.5.5 0 0 1 0-1H3V7h-.5A1.5 1.5 0 0 1 1 5.5V5a.5.5 0 0 1 1 0v.5a.5.5 0 0 0 .5.5H3c0-1.364.547-2.601 1.432-3.503l-.41-1.352a.5.5 0 0 1 .333-.623zM4 7v4a4 4 0 0 0 3.5 3.97V7H4zm4.5 0v7.97A4 4 0 0 0 12 11V7H8.5zM12 6a3.989 3.989 0 0 0-1.334-2.982A3.983 3.983 0 0 0 8 2a3.983 3.983 0 0 0-2.667 1.018A3.989 3.989 0 0 0 4 6h8z',
                },
            },
        },
    ],
};
...
title: Editor.generateHtml(result),
...

...
dataLabelsFormat: Editor.generateHtml({
    tag: 'i',
    content: '{point.yLabel}'
}),
...

...
text: Editor.generateHtml({
    tag: 'div',
    content: [
        {
            tag: 'dl-tooltip',
            content: 'Tooltip trigger 1',
            attributes: {
                'data-tooltip-content': {
                    tag: 'i',
                    content: 'Italic content',
                },
                'data-tooltip-placement': ['top']
            }
        },
        {
            tag: 'dl-tooltip',
            content: 'Tooltip trigger 2',
            style: { 'font-weight': 'normal' },
            attributes: {
                'data-tooltip-content': 'Hey!',
                'data-tooltip-placement': 'right'
            }
        },
        {
            tag: 'div',
            content: 'Without tooltip',
        },
        {
            tag: 'dl-tooltip',
            content: {
                tag: 'img',
                attributes: {
                    src: 'https://storage.yandexcloud.net/datalens-public-demo-assets/logo-new.svg',
                    width: 238,
                    height: 32,
                },
                style: {
                    'display': 'inline-block',
                    'vertical-align': 'middle',
                },
            },
            attributes: {
                'data-tooltip-content': {
                    tag: 'a',
                    attributes: {
                        href: 'https://ya.ru',
                    },
                    content: 'go to link',
                    style: {
                        'display': 'inline-block',
                        'vertical-align': 'middle',
                    },
                },
                'data-tooltip-placement': 'bottom'
            },
            style: {
                'display': 'inline-block',
                'vertical-align': 'middle',
            },
        },
        {
            tag: 'dl-tooltip',
            content: {
                tag: 'a',
                attributes: {
                    href: 'https://ya.ru',
                },
                style: {
                    'display': 'inline-block',
                    'vertical-align': 'middle',
                },
                content: [{
                    tag: 'img',
                    attributes: {
                        src: 'https://storage.yandexcloud.net/datalens-public-demo-assets/logo-new.svg',
                        width: 238,
                        height: 32,
                    },
                    style: {
                        'display': 'inline-block',
                        'vertical-align': 'middle',
                    },
                }],
            },
            style: {
                'display': 'inline-block',
                'vertical-align': 'middle',
                'margin-left': '20px',
            },
            attributes: {
                'data-tooltip-content': {
                    tag: 'img',
                    attributes: {
                        src: 'https://storage.yandexcloud.net/datalens-public-demo-assets/logo-new.svg',
                    },
                    content: 'some image desc',
                },
                'data-tooltip-placement': 'bottom'
            }
        },
    ]
}),
...

module.exports = {
    title: {
        text: Editor.generateHtml({
            tag: 'div',
            content: [
                {
                    tag: 'div',
                    theme: {
                        dark: {
                            '--ce-theme-bg': 'purple',
                            '--ce-theme-text': 'yellow',
                        },
                        light: {
                            '--ce-theme-bg': 'pink',
                            '--ce-theme-text': 'orange',
                        },
                    },
                    style: {
                        'background-color': 'var(--ce-theme-bg)',
                    },
                    content: {
                        tag: 'div',
                        style: {
                            color: 'var(--ce-theme-text)',
                        },
                        content: 'I can use --ce-theme-text variable',
                    },
                },
                {
                    tag: 'div',
                    style: {
                        color: 'var(--ce-theme-text)',
                    },
                    content: 'I cannot use --ce-theme-text variable',
                },
            ]
        }),
    },
};

module.exports = {
    title: {
        text: Editor.generateHtml({
            tag: 'div',
            style: {
                'display': 'flex',
                'flex-direction': 'column',
                'align-items': 'center'
            },
            theme: {
                dark: {
                    '--ce-theme-bg': '#BF90EE',
                    '--ce-theme-text': '#F5D629',
                },
                light: {
                    '--ce-theme-bg': '#9658D5',
                    '--ce-theme-text': '#26FFD9',
                },
            },
            content: [
                {
                    tag: 'div',
                    style: {
                        'margin-bottom': '10px',
                    },
                    content: 'Use settings to switch the theme',
                },
                {
                    tag: 'div',
                    style: {
                        'width': '100%',
                        'height': '300px',
                        'background-color': 'var(--ce-theme-bg)',
                        'color': 'var(--ce-theme-text)',
                        'text-align': 'center',
                        'display': 'flex',
                        'justify-content': 'center',
                        'align-items': 'center',
                    },
                    content: 'Some text',
                },
            ]
        }),
    },
};

Editor.getActionParams()Editor.getActionParams()

Returns an object with normalized filtering (action) parameters.

Supported chart typesSupported chart types

• Chart (Gravity Charts)
• Table
• Advanced chart

ArgumentsArguments

None.

Returned resultReturned result

JSON object in the following format:

{
  "key": "value"
}

Where:

• key (string): Parameter name.
• value (array of strings): Values of parameters used by the current chart for filtering.

ExampleExample

_ap_City=Moscow

module.exports = {
    "Year": "2024",
    "City": ["Moscow", "Sochi"]
};

const actionParams = Editor.getActionParams();

{
  "City": ["Moscow"]
}

Chart examplesChart examples

Example of cross-filtering: Clicking the advanced chart on the left filters Markdown on the right.

Editor.getCurrentPage()Editor.getCurrentPage()

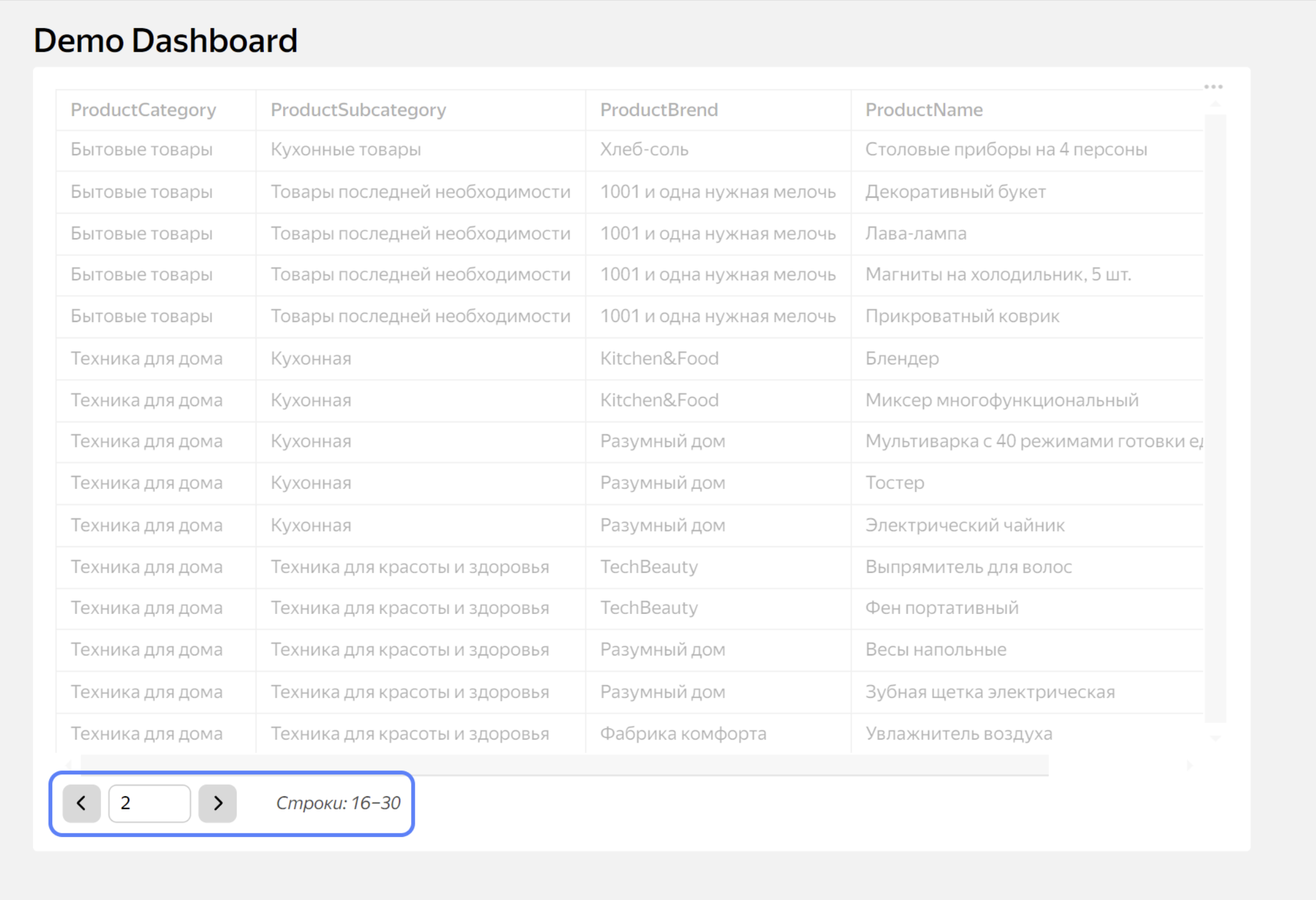

Returns the current page number value in a table with pagination enabled.

Supported chart typesSupported chart types

Table.

ArgumentsArguments

No.

Returned resultReturned result

Number corresponding to page number.

ExampleExample

module.exports = {
    paginator: {
        enabled: true,
        limit: 5
    }
};

const page = Editor.getCurrentPage();

Editor.getId(arg)Editor.getId(arg)

Returns the object id from the links field in the Meta tab.

Supported chart typesSupported chart types

All.

ArgumentsArguments

arg (string): String with the key name (alias) in the links object on the Meta tab.

Returned resultReturned result

String with the id value.

ExampleExample

module.exports = {
  "links": {
      "myBestDataset": "tlzr1t5kto9cg"
  }
};

module.exports = {
  'myDatasetSource': {
      datasetId: Editor.getId('myBestDataset'),
      data: {
          fields: [
              {
                  ref: {
                      type: "title",
                      title: "PaymentType",
                  },
              },
  	        {
                  ref: {
                      type: "title",
                      title: "OrderYear",
                  },
              },
  	        {
                  ref: {
                      type: "title",
                      title: "OrderMonth",
                  },
              },
          ],
      },
  },
};

Editor.getLoadedData()Editor.getLoadedData()

Returns an object with data requested on the Sources tab.

Supported chart typesSupported chart types

All.

ArgumentsArguments

No.

Returned resultReturned result

Depends on data source and visualization type.

ExampleExample

Example for the table with source based on a dataset.

const {buildSource} = require('libs/dataset/v2');
const datasetId = Editor.getId('myDatasetKeyName');
module.exports = {
    'myChartDataSource': buildSource({
        id: datasetId,
        columns: ['Year', 'Country', 'City'],
        where,
        order_by: [{
            direction: 'ASC',
            column: 'Year',
        }],
    }),
};

const data = Editor.getLoadedData();

{
    "travelSet": {
        "result": {
            "data": {
                "Data": [
                    [
                        "2013",
                        "Russia",
                        "Moscow"
                    ],
                    [
                        "2014",
                        "Russia",
                        "Sochi"
                    ]
                ],
                "Type": [
                    "ListType",
                    [
                        "StructType",
                        [
                            [
                                "Year",
                                [
                                    "OptionalType",
                                    [
                                        "DataType",
                                        "Int64"
                                    ]
                                ]
                            ],
                            [
                                "Country",
                                [
                                    "OptionalType",
                                    [
                                        "DataType",
                                        "String"
                                    ]
                                ]
                            ],
                            [
                                "City",
                                [
                                    "OptionalType",
                                    [
                                        "DataType",
                                        "String"
                                    ]
                                ]
                            ]
                        ]
                    ]
                ]
            },
            "query": "SELECT `A`, `D`, `C`\n LIMIT 1000001",
            "data_export_forbidden": false,
            "fields": [
                {
                    "guid": "34ca4a89-f609-4e00-83af-4ae0********",
                    "title": "DateStart",
                    "data_type": "date",
                    "calc_mode": "direct"
                },
                {
                    "guid": "50927ab0-3a7e-11ec-965f-71d2********",
                    "title": "Year",
                    "data_type": "integer",
                    "calc_mode": "formula"
                },
                {
                    "guid": "13dbfc8f-b649-4201-b3d0-fb8b********",
                    "title": "City",
                    "data_type": "string",
                    "calc_mode": "direct"
                },
                {
                    "guid": "d079937f-6bc4-4133-9171-4009********",
                    "title": "Country",
                    "data_type": "string",
                    "calc_mode": "direct"
                }
            ]
        }
    }
}

Chart examplesChart examples

Example of using Editor.getLoadedData() in a dataset-based table

Editor.getParam(name)Editor.getParam(name)

Returns a normalized value of the parameter with name for name.

Supported chart typesSupported chart types

All.

ArgumentsArguments

name (string): Parameter name.

Returned resultReturned result

Array of strings that returns the parameter value.

ExampleExample

Example for the table with source based on a dataset.

module.exports = {
    "Year": "2024",
    "City": ["Moscow", "Sochi"]
};

const params = Editor.getParam('Year');

["2024"]

Chart examplesChart examples

Example of a chart accessing a parameter by name

Editor.getParams()Editor.getParams()

Returns an object with normalized parameters.

Supported chart typesSupported chart types

All.

ArgumentsArguments

No.

Returned resultReturned result

JSON object in the following format:

{
  "key": "value"
}

Where:

• key (string): Parameter name.
• value (array of strings): Parameter values.

ExampleExample

Example for the table with source based on a dataset.

module.exports = {
    "Year": "2024",
    "City": ["Moscow", "Sochi"]
};

const params = Editor.getParams();

{
    "Year": ["2024"],
    "City": ["Moscow", "Sochi"]
}

Chart examplesChart examples

Example of using the function for getting all applied parameters

Editor.getWidgetConfig()Editor.getWidgetConfig()

Returns the current widgets settings from a dashboard or report. Can be used to debug custom chart display issues when filtering by that chart.

Supported chart typesSupported chart types

• Chart (Gravity Charts)
• Table
• Advanced chart

ArgumentsArguments

No.

Returned resultReturned result

JSON object in the following format:

{
  "widgetConfig": {
    ...
    "actionParams": {
      "enable": "<boolean>",
      "fields": "<string[]>"
    }
  }
}

Where:

• actionParams: Settings for chart filtering by chart:

  • enable (Boolean): Filtering enabled flag.
  • fields (array of strings): Fields the chart uses for filtering.

ExampleExample

Example for the table with source based on a dataset.

module.exports = {
    events: {
        click: {
            handler: [{type: 'setActionParams'}],
            scope: 'point',
        },
    },
};

const seriesData = [
    [
        {
            y: 5,
            custom: {actionParams: {'Apples': 'John'}},
        },
        {
            y: 3,
            custom: {actionParams: {'Oranges': 'John'}},
        },
        {
            y: 4,
            custom: {actionParams: {'Pears': 'John'}},
        },
        {
            y: 7,
            custom: {actionParams: {'Grapes': 'John'}},
        },
        {
            y: 2,
            custom: {actionParams: {'Bananas': 'John'}},
        },
    ],
    [
        {
            y: 2,
            custom: {actionParams: {'Apples': 'Jane'}},
        },
        {
            y: 2,
            custom: {actionParams: {'Oranges': 'Jane'}},
        },
        {
            y: 3,
            custom: {actionParams: {'Pears': 'Jane'}},
        },
        {
            y: 2,
            custom: {actionParams: {'Grapes': 'Jane'}},
        },
        {
            y: 1,
            custom: {actionParams: {'Bananas': 'Jane'}},
        },
    ],
    [
        {
            y: 3,
            custom: {actionParams: {'Apples': 'Joe'}},
        },
        {
            y: 4,
            custom: {actionParams: {'Oranges': 'Joe'}},
        },
        {
            y: 4,
            custom: {actionParams: {'Pears': 'Joe'}},
        },
        {
            y: 2,
            custom: {actionParams: {'Grapes': 'Joe'}},
        },
        {
            y: 5,
            custom: {actionParams: {'Bananas': 'Joe'}},
        },
    ]

];

const widgetSettings = Editor.getWidgetConfig();
if ('widgetConfig' in widgetSettings && 'enable' in widgetSettings.widgetConfig) {
    Editor.updateConfig({title: ...});
}

module.exports = {
    graphs: [
        {
            name: 'John',
            data: seriesData[0],
        },
        {
            name: 'Jane',
            data: seriesData[1],
        },
        {
            name: 'Joe',
            data: seriesData[2],
        },
    ],
    categories: ['Apples', 'Oranges', 'Pears', 'Grapes', 'Bananas'],
};

Editor.resolveInterval(arg)Editor.resolveInterval(arg)

Converts a time interval to a pair of values representing the interval start and end points.

Supported chart typesSupported chart types

All.

ArgumentsArguments

arg (string): String in the interval format.

Returned resultReturned result

{from, to} object, where from/to is an ISO date if the string matches the format; otherwise, null.

ExampleExample

// current time: 2020-02-26T07:05:52.552Z
const {from, to} = Editor.resolveInterval('__interval___relative_-1y___relative_+10d_eM');
// from === 2019-02-26T00:00:00.000Z
// to === 2020-03-31T23:59:59.999Z

// current time: 2020-02-26T07:05:52.552Z
const interval = Editor.resolveInterval('__interval_2019-01-01T07:08:25.941Z___relative_+1h');
// interval.from === 2019-01-01T07:08:25.941Z
// interval.to === 2020-02-26T08:05:52.552Z

// current time: 2020-02-26T07:05:52.552Z
const interval = Editor.resolveInterval('__interval_2020.01.15___relative_-0d');
// interval === null

Note: Start and end of the interval specified in the Params tab or in the URL will be automatically processed by the helper method for the relative date.
However, if the interval start/end value does not match the relative date format, the original value will be returned instead of null.
For example:

Params tab:

module.exports = {
    first: '__interval_2020-01-01T12:30:11.324Z___relative_+1d',
    second: '',
    incorrect: '__inteval_01.01.2020___relative_-1d'
}

URL parameters: ...?second=__interval___relative_-1y_eQ_2021

// current time: 2020-02-20T12:30:11.324Z
const params = Editor.getParams();
// params === {
//   first: ['__interval_2020-01-01T12:30:11.324Z_2020-02-21T23:59:59.999Z'],
//   second: ['__interval_2019-03-31T23:59:59.999Z_2021'],
//   incorrect: ['__inteval_01.01.2020___relative_-1d']
// }

Editor.resolveOperation()Editor.resolveOperation()

An operation returns a parameter value as a special value. To streamline further operations with that value, you can use this method, which converts the value to the parameter and operation.

Supported chart typesSupported chart types

All.

ArgumentsArguments

No.

ExampleExample

Example for the table with source based on a dataset.

Editor.resolveOperation("__gt_42");

    operation: "GT",
    value: "42",

Editor.resolveRelative(arg)Editor.resolveRelative(arg)

Takes a string in relative date format and returns an ISO date if the string matches the format; otherwise, returns null.

Supported chart typesSupported chart types

All.

ArgumentsArguments

arg (string): String in relative date format.

Returned resultReturned result

ISO date if the provided arg argument matches the format; otherwise, null.

ExampleExample

// current time: 2020-02-18T09:14:56.123Z
const date = Editor.resolveRelative('__relative_-7d');
// date === 2020-02-11T00:00:00.000Z

// current time: 2020-02-18T09:14:56.123Z
const date = Editor.resolveRelative('__relative_+30m_sh');
// date === 2020-02-18T09:00:00.000Z

const date = Editor.resolveRelative('2020-01-01');
// date === null

Note: Relative dates specified in the Params tab or in the URL will be automatically processed by the helper method.
However, if the parameter value does not match the relative date format, the original value will be returned instead of null.
For example:

Params tab:

module.exports = {
    date_min: '2020-01-01',
    date_max: '__relative_+1d_sw',
    incorrect: '_relative_d1',
}

URL parameters: ...?date_min=__relative_-7d

// current time: 2020-02-20T12:30:11.324Z
const params = Editor.getParams();
// params === {
//   date_min: ['2020-02-13T00:00:00.000Z'],
//   date_max: ['2020-02-17T00:00:00.000Z'],
//   incorrect: ['_relative_d1']
// }

Editor.setChartsInsights(args)Editor.setChartsInsights(args)

Adds a notification to a chart.

Supported chart typesSupported chart types

All.

ArgumentsArguments

args: Array of JSON objects in the following format:

{
  "title": "<string>",
  "message": "<string>",
  "level": "<string>",
  "locator": "<string>",
}

Where:

• title (string): Notification title.

• message (string): Notification text in Markdown.

• level (string): Notification type:

  • info: Note
  • warning: Warning
  • critical: Restriction

  The type of notification determines its priority and the icon displayed. If more than one notification has been added to the chart, only one of them will have its icon shown in collapsed view.

• locator (string): Unique ID for each notification within the chart.

ExampleExample

Editor.setChartsInsights([
    {
        title: 'markdown',
        message: 'Use [markdown](https://datalens.yandex-team.ru/docs/editor/widgets/markdown/)',
        level: 'critical',
        locator: '1'
    },
    {
        title: 'List',
        message: 'Use a separator to move to a new line \\n \n- one\n- two\n- three',
        level: 'info',
        locator: '4'
    },
    {
        title: 'Table',
        message: 'Header | Header \n:--- | :--- |\nText | Text ',
        level: 'warning',
        locator: '2'
    },
    {
        title: 'Attention',
        message: 'The data will be unavailable during tomorrow's drill',
        level: 'critical',
        locator: 'qaz'
    }
]);

Chart examplesChart examples

Example of a chart with notifications

Editor.updateActionParams()Editor.updateActionParams()

Updates an object with filtering (action) parameters.

Supported chart typesSupported chart types

• Chart (Gravity Charts)
• Table
• Advanced chart

ArgumentsArguments

JSON object in the following format:

{
  "key": "value"
}

Where:

• key (string): Parameter name.
• value (array of strings): Values of parameters used by the current chart for filtering.

Returned resultReturned result

No.

ExampleExample

module.exports = {
    "Year": "2024",
    "City": ["Moscow", "Sochi"]
};

const actionParams = Editor.updateActionParams({"City": "Moscow"});

{
  "City": ["Moscow"]
}

Chart examplesChart examples

Example of cross-filtering: Clicking the advanced chart on the left filters Markdown on the right.

Editor.updateParams(params)Editor.updateParams(params)

Extends the definition of the chart parameters with the params argument.

We do not recommend updating parameters inside charts and controls as this may cause issues with components and related items. However, as an option of last resort, you can use this method instead of mutating the original params object. If there is a mutation, chart stability is not guaranteed.

Supported chart typesSupported chart types

All.

ArgumentsArguments

params: JSON object in the following format:

{
  "key": "value"
}

Where:

• key (string): Parameter name.
• value (array of strings): Parameter values. Single values are also transmitted within the array.

ExampleExample

Example for the table with source based on a dataset.

module.exports = {
    "Year": "2024",
    "City": ["Moscow", "Sochi"]
};

Editor.updateParams({"City": ["Vladimir"]});

{
  "Year": ["2024"],
  "City": ["Vladimir"]
}

Editor.wrapFn(conf)Editor.wrapFn(conf)

Function for generating a chart handler; it runs in a sandboxed browser with limited access to the browser API. Avoid resource-intensive calculations that may cause lags in the chart display. Also, minimize the information provided in args.

The Editor.wrapFn function is sensitive to syntax errors. So if you have issues when using the function, check your syntax first.

Supported chart typesSupported chart types

• Chart (Gravity Charts)
• Advanced chart

ArgumentsArguments

conf: Object in the following format:

fn: function(highchartsArgs1, …, highchartsArgsN, arg1, …, argN) {
    ...
},
args: [arg1, …, argN],
libs: [lib1, …, libN],

Where:

• fn: Handler function. It cannot be a link or contain links to external variables (including functions).

• args: Array of arguments for the handler function. These arguments are provided after all method-specific ones.

  Note

  Extensive parameters transmitted in args slow the script down, so we recommend transmitting as little information as possible using them.

• libs: Array of strings specifying the libraries the handler function will use. We recommend that you specify the library name together with its version, e.g., date-utils@2.3.0 or date-utils@2.5.3. If you specify the library name without its version, e.g., date-utils, the latest version (latest) published in the npm registry will be used.

  Possible values for libraries to connect: date-utils@2.3.0, date-utils@2.5.3 (date-util alias), d3@7.9.0 (d3 alias), d3-chord@3.0.1 (d3-chord alias), and d3-sankey@0.12.3 (d3-sankey alias).

  Warning

  • Specifying multiple versions of the same library may cause it to behave unexpectedly or render it complete inoperable.
  • In some cases, referring to a library without specifying its version may cause unpredictable results in the handler function.

ExamplesExamples

Example for an advanced chart:

 module.exports = {
    render: Editor.wrapFn({
        fn: function() {
            return 'Hello world';
        },
    }),
};

Chart examplesChart examples

Use case with the d3 library connected, based on the advanced chart
