Infrastructure map
The infrastructure map shows the relationships between cloud resources as well as between networks and subnets within the resource folder.

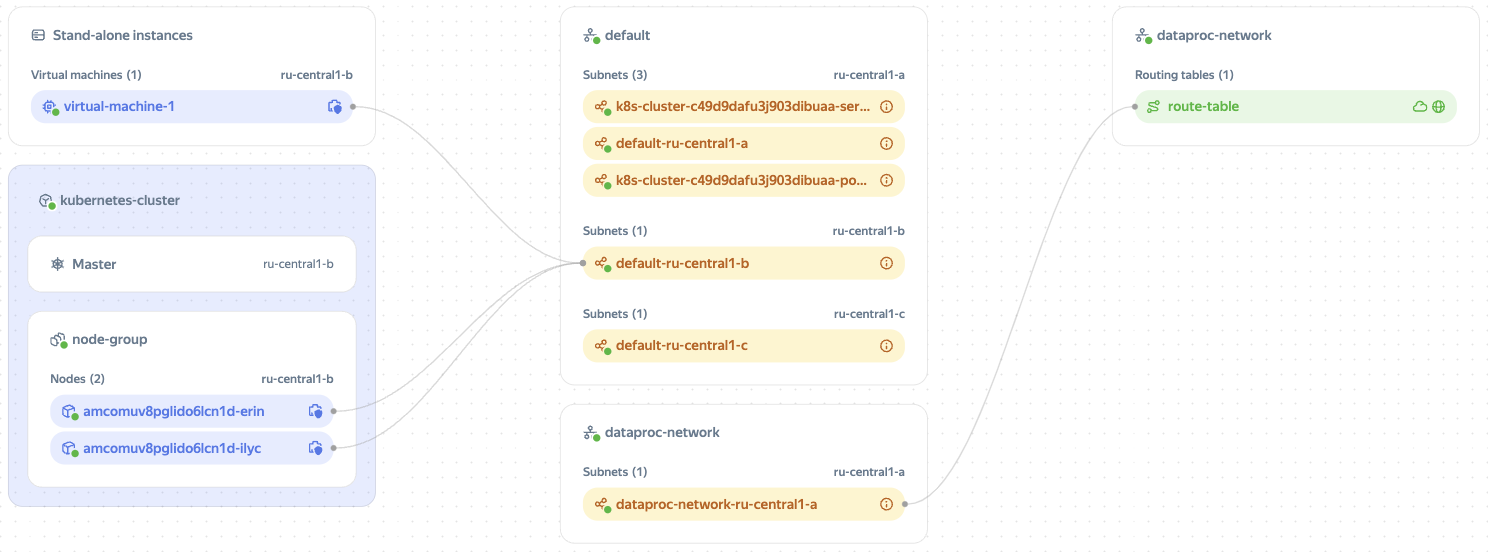

Infrastructure map example:
You can use the infrastructure map to visualize networks. For example, with the map, you can identify the subnets with the highest loads or with configured route tables.
Resources displayed on the infrastructure map
- Instance groups.
- Virtual machines.
- Yandex Managed Service for Kubernetes clusters.
- Managed Service for Kubernetes nodes and node groups.
- Yandex Managed Service for PostgreSQL clusters.
- Yandex Managed Service for ClickHouse® clusters.
- Cloud networks.
- Subnets.
- Route tables.
You have the option to only map network connections for specific resources. This can be useful if you have a large network with a vast number of resources. You can also use the map to navigate to resource pages with a single click. For more information on using the map, see this guide.
Useful links
A cloud network is similar to a traditional LAN in a data center. Cloud networks are created in folders and used for transmitting information between cloud resources and connecting resources to the internet. For more information, see Cloud networks.
A subnet is a range of IP addresses in a cloud network. Addresses from this range can be assigned to cloud resources, such as VMs and database clusters. For more information, see Subnets.
