Data pattern processing

A data pattern is a combination of events, as well as conditions and correlations between these events, used to track various regularities and detect events. Pattern searching is used for analyzing and monitoring event streams in real time, enabling prompt response to changes and making crucial decisions. In data analysis systems, a data pattern builds a rule by which the system figures out whether the incoming event stream meets certain criteria, thus triggering some actions or notifications.

Here is a real-world example of pattern processing in a data stream produced by an IoT device whose buttons trigger certain events. Let's assume you need to find and process the following sequence of button clicks: button 1, button 2, and button 3. The data is transmitted as JSON strings, which are distributed across the ts and button columns of input_stream using data bindings.

The structure of the data to transmit is as follows:

{"ts": 1700000000, "button": 1, "device_id": 1, "zone_id": 24}
{"ts": 1701000000, "button": 2, "device_id": 2, "zone_id": 12}

The body of the SQL query to YQL looks like this:

SELECT * FROM bindings.input_stream MATCH_RECOGNIZE ( -- Searching for patterns from `input_stream`
    PARTITION BY device_id, zone_id -- Partitioning the data into groups by `device_id` and `zone_id` columns
    ORDER BY ts -- Viewing events based on the `ts` column data sorted ascending
    MEASURES
        LAST(B1.ts) AS b1, -- Getting the latest timestamp of clicking button 1 in the query results
        LAST(B3.ts) AS b3  -- Getting the latest timestamp of clicking button 3 in the query results
    ONE ROW PER MATCH            -- Getting one result row per match hit
    AFTER MATCH SKIP TO NEXT ROW -- Moving to the next row once the pattern match is hit
    PATTERN (B1 B2+ B3)      -- Searching through the data for a pattern that includes one button 1 click, one or more button 2 clicks, and one button 3 click
    DEFINE
        B1 AS B1.button = 1, -- Defining the B1 variable as button 1 click event (the `button` field set to 1)
        B2 AS B2.button = 2, -- Defining the B2 variable as button 2 click event (the `button` field set to 2)
        B3 AS B3.button = 3  -- Defining the B3 variable as button 3 click event (the `button` field set to 3)
);

SyntaxSyntax

The MATCH_RECOGNIZE command searches for data based on a given pattern and returns the hits. Here is the SQL syntax of the MATCH_RECOGNIZE command:

MATCH_RECOGNIZE (
    [ PARTITION BY <partition_1> [ ... , <partition_N> ] ]
    [ ORDER BY sorting_key_1 [ ... , sorting_key_N ] ]
    [ MEASURES <expression_1> AS <column_name_1> [ ... , <expression_N> AS <column_name_N> ] ]
    [ ONE ROW PER MATCH | ALL ROWS PER MATCH ]
    [ AFTER MATCH SKIP (TO NEXT ROW | PAST LAST ROW) ]
    PATTERN (<search_pattern>)
    DEFINE <variable_1> AS <predicate_1> [ ... , <variable_N> AS <predicate_N> ]
)

Here is a brief description of the SQL syntax elements of the MATCH_RECOGNIZE command:

• DEFINE: Conditions the rows must meet for each variable: <variable_1> AS <predicate_1> [ ... , <variable_N> AS <predicate_N> ].
• PATTERN: Pattern to search for across the data. It consists of variables and search rules of the pattern described in <search_pattern>. PATTERN works similarly to regular expressions.
• MEASURES: Specifies the list of output columns. Each column of the <expression_1> AS <name_of_column_1> [ ... , <expression_N> AS <name_of_column_N> ] list is an independent construct that sets output columns and describes expressions for their computation.
• ROWS PER MATCH: Determines the amount of output data for each hit match.
• AFTER MATCH SKIP: Sets the method of continuing the search after a match.
• ORDER BY: Determines sorting of input data. Pattern search is performed within the data sorted according to the list of columns or expressions listed in sorting_key_1 [ ... , sorting_key_N ].
• PARTITION BY divides the input data flow as per the specified rules in accordance with <partition_1> [ ... , <partition_N> ]. Pattern search is performed independently in each part.

DEFINEDEFINE

DEFINE <variable_1> AS <predicate_1> [ ... , <variable_N> AS <predicate_N> ]

DEFINE declares variables that are searched for in the input data. Variables are names of SQL expressions computed over the input data. SQL expressions in DEFINE have the same meaning as search expressions in a WHERE SQL clause. For example, the button = 1 expression searches for all rows that contain the button column with the 1 value. Any SQL expressions that can be used to perform a search, including aggregate functions like LAST or FIRST, can act as conditions, e.g., button > 2 AND zone_id < 12 or LAST(button) > 10.

In your SQL statements, make sure to specify the variable name for which you are searching for matches. For instance, in the following SQL command, you need to specify the variable name for which the calculation is being performed (A), for the button = 1 condition:

DEFINE
    A AS A.button = 1

When processing each row of data, all logical expressions of all DEFINE keyword variables are calculated. If during the calculation of the DEFINE variable expressions the logical expression gets the TRUE value, such a row is labeled with the DEFINE variable name and added to the list of rows subject to pattern matching.

ExampleExample

When defining variables in SQL expressions, you can reference other variables:

DEFINE
    A AS A.button = 1 AND LAST(A.zone_id) = 12,
    B AS B.button = 2 AND FIRST(A.zone_id) = 12

An input data row will be calculated as the A variable if it contains a column named button set to 1, and the last row of the set that had previously matched A has a column named zone_id set to 12. A row will be calculated as the B variable if it contains a column named button set to 2, and the first row of the set that had previously matched A has a column named zone_id set to 12.

PATTERNPATTERN

PATTERN (<search_pattern>)

The PATTERN keyword describes the data search pattern in the format derived from variables in the DEFINE section. The PATTERN syntax is similar to the one of regular expressions.

You can use quantifiers in PATTERN. In regular expressions, they determine the number of repetitions of an element or subsequence in the matched pattern. Let’s use the A, B, C, and D variables from the DEFINE section to explain how quantifiers work. Here is the list of supported quantifiers:

Supported pattern search sequences:

ExampleExample

PATTERN (B1 E* B2+ B3)
DEFINE
    B1 as B1.button = 1,
    B2 as B2.button = 2,
    B3 as B3.button = 3

The DEFINE section describes the B1, B2, and B3 variables, while it does not describe E. Such notation allows interpreting E as any event, so the following pattern will be searched: one button 1 click, one or more button 2 clicks, and one button 3 click. Meanwhile, between a click of button 1 and button 2, any number of any other events may occur.

MEASURESMEASURES

MEASURES <expression_1> AS <column_name_1> [ ... , <expression_N> AS <column_name_N> ]

MEASURES describes the set of returned columns when a pattern is found. The set of returned columns should be represented by an SQL expression with aggregate functions over the variables declared in the DEFINE statement.

ExampleExample

In this example, the input data is as follows:

{"ts": 100, "button": 1, "device_id": 3, "zone_id": 0}
{"ts": 200, "button": 1, "device_id": 3, "zone_id": 1}
{"ts": 300, "button": 2, "device_id": 2, "zone_id": 0}
{"ts": 400, "button": 3, "device_id": 1, "zone_id": 1}

MEASURES
    AGGREGATE_LIST(B1.zone_id * 10 + B1.device_id) AS ids,
    COUNT(DISTINCT B1.zone_id) AS count_zones,
    LAST(B3.ts) - FIRST(B1.ts) AS time_diff,
    42 AS meaning_of_life
PATTERN (B1+ B2 B3)
DEFINE
    B1 AS B1.button = 1,
    B2 AS B2.button = 2,
    B3 AS B3.button = 3

Result:

The ids column contains a list of zone_id * 10 + device_id values counted among the rows that had matched the B1 variable. The count_zones column contains the number of the unique zone_id column values among the rows that had matched the B1 variable. The time_diff column contains the difference between the ts column value in the last row of the set that matched the B3 variable and the ts column value in the first row of the set that had matched the B1 variable. The meaning_of_life column contains the 42 constant. Thus, an expression in MEASURES may contain aggregate functions over multiple variables, but only one variable must be inside a single aggregate function.

ROWS PER MATCHROWS PER MATCH

ROWS PER MATCH sets the number of rows of the result per match. ONE ROW PER MATCH is the default mode.

ONE ROW PER MATCH sets ROWS PER MATCH to the one row per match mode. The data schema of the result will be a merge of partitioning columns and dimension columns.

ALL ROWS PER MATCH sets ROWS PER MATCH to output all rows per match except those explicitly excluded by parentheses in the pattern. The data schema of the result will be a merge of original columns and dimension columns.

ExamplesExamples

The input data for all examples are:

{"button": 1, "ts": 100}
{"button": 2, "ts": 200}
{"button": 3, "ts": 300}

Example 1Example 1

MEASURES
    FIRST(B1.ts) AS first_ts,
    FIRST(B2.ts) AS mid_ts,
    LAST(B3.ts) AS last_ts
ONE ROW PER MATCH
PATTERN (B1 {- B2 -} B3)
DEFINE
    B1 AS B1.button = 1,
    B2 AS B2.button = 2,
    B3 AS B3.button = 3

Result:

Example 2Example 2

MEASURES
    FIRST(B1.ts) AS first_ts,
    FIRST(B2.ts) AS mid_ts,
    LAST(B3.ts) AS last_ts
ONE ROW PER MATCH
PATTERN (B1 {- B2 -} B3)
DEFINE
    B1 AS B1.button = 1,
    B2 AS B2.button = 2,
    B3 AS B3.button = 3

Result:

AFTER MATCH SKIPAFTER MATCH SKIP

AFTER MATCH SKIP sets the method of continuing the search after a match. The only supported modes are AFTER MATCH SKIP TO NEXT ROW and AFTER MATCH SKIP PAST LAST ROW. PAST LAST ROW is the default mode.

ExamplesExamples

The input data for all examples are:

{"button": 1, "ts": 100}
{"button": 1, "ts": 200}
{"button": 2, "ts": 300}
{"button": 3, "ts": 400}

Example 1Example 1

MEASURES
    FIRST(B1.ts) AS first_ts,
    LAST(B3.ts) AS last_ts
AFTER MATCH SKIP TO NEXT ROW
PATTERN (B1+ B2 B3)
DEFINE
    B1 AS B1.button = 1,
    B2 AS B2.button = 2,
    B3 AS B3.button = 3

Result:

Example 2Example 2

MEASURES
    FIRST(B1.ts) AS first_ts,
    LAST(B3.ts) AS last_ts
AFTER MATCH SKIP PAST LAST ROW
PATTERN (B1+ B2 B3)
DEFINE
    B1 AS B1.button = 1,
    B2 AS B2.button = 2,
    B3 AS B3.button = 3

Result:

ORDER BYORDER BY

ORDER BY sorting_key_1 [ ... , sorting_key_N ]

sorting_key ::= { <column_names> | <expression> }

ORDER BY: Configures the sorting of input data. Before performing all pattern search operations, the data will be pre-sorted according to the specified keys or expressions. The syntax is similar to the ORDER BY SQL expression.

ExampleExample

ORDER BY CAST(ts AS Timestamp)

Aspects of sorting in streaming queriesAspects of sorting in streaming queries

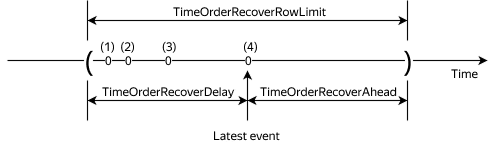

Streaming data is potentially infinite, so it is sorted within the window (TimeOrderRecover). In this algorithm, you can specify exactly one Timestamp type expression as the sorting columns, with ascending (ASC) as the only available sorting order. You can manage window size using the following parameters:

• TimeOrderRecoverAhead, in microseconds, default = -10,000,000 (-10s), must be < 0.
• TimeOrderRecoverDelay, in microseconds, default = 10,000,000 (10s), must be > 0.
• TimeOrderRecoverRowLimit, number of rows, default = 1,000,000, must be > 0.

Windowed sorting works as follows:

• If the event is not in the window, it is allowed through without sorting.
• If the event is in the left half of the window, it goes into sorting.
• If the number of events in the window exceeds TimeOrderRecoverRowLimit, the oldest event in the window leaves TimeOrderRecover and gets into MATCH_RECOGNIZE.
• If the event is the right half of the window, the window shifts to the right and the newly arrived event becomes Latest row. All events falling outside the window leave TimeOrderRecover and get into MATCH_RECOGNIZE.

ExamplesExamples

Example 1Example 1

It is of no concern that events can run forward a lot; however, it does matter that hour-long lags may occur:

PRAGMA config.flags("TimeOrderRecoverDelay", "-3600000000"); -- -1 hour
PRAGMA config.flags("TimeOrderRecoverAhead", "3155760000000000"); -- 100 years

Example 2Example 2

You do not want events from the distant future to disrupt the sorting window. At the same time, you know that events are guaranteed to come at least once an hour:

PRAGMA config.flags("TimeOrderRecoverDelay", "-3600000000"); -- -1 hour
PRAGMA config.flags("TimeOrderRecoverAhead", "3600000000"); -- 1 hour

PARTITION BYPARTITION BY

PARTITION BY <partition_1> [ ... , <partition_N> ]

partition ::= { <column_names> | <expression> }

PARTITION BY splits the input data based on the list of the fields specified in this keyword. The expression converts the source data into several independent stream groups with an independent pattern search in each stream. If no expression is specified, all data is processed as a single group.

ExampleExample

PARTITION BY device_id, zone_id

LimitationsLimitations

Our support for the MATCH_RECOGNIZE command will eventually comply with SQL-2016; currently, however, the following limitations apply:

• ORDER_BY. In streaming queries, you can specify exactly one Timestamp type expression as the sorting columns, with ascending (ASC) as the only available sorting order.
• MEASURES. The PREV/NEXT functions are not supported.
• AFTER MATCH SKIP. The only supported modes are AFTER MATCH SKIP TO NEXT ROW and AFTER MATCH SKIP PAST LAST ROW.
• PATTERN. Union pattern variables are not implemented.
• DEFINE. Aggregation functions are not supported.
