Retail chain's dashboard based on a ClickHouse® DB
Note
In this tutorial all objects will be created and stored in a workbook. If using legacy folder navigation, create an individual directory to work in.
Create a directory
- Go to the DataLens home page
. - In the left-hand panel, select
All objects or Personal directory. - In the top-right corner, click Create → Directory.
- Enter a name for the directory.
- Click Create.
In this tutorial, you will set up a dashboard to visualize sales analytics for a Moscow retail chain. This dashboard will present:
- Sales dynamics by day and month.
- Sales by product categories.
- Heat map of orders.
We will use a Moscow retail chain's demo sales ClickHouse® database as our data source.
To visualize and explore data, set up DataLens and follow the steps below:
- Create a workbook.
- Create a connection.
- Create a dataset.
- Create a line chart.
- Create a bar chart.
- Create a pivot table chart.
- Create a heat map.
- Create a dashboard and add charts to it.
- Add selectors to the dashboard.
Getting started
To get started with DataLens:
- Log in
to your Yandex account. If you do not have an account, create one. - Open the DataLens home page
. - Click Open DataLens.
- Confirm that you have read the Terms of use
and click Log in.
-
Log in
to your Yandex account. -
Open the DataLens home page
. -
Click Open DataLens.
-
Select one of the options:
-
If you already have an organization, select it from the drop-down menu in the Organizations tab and click DataLens.
Note
To activate a DataLens instance, the user must have the
admin
orowner
role. For more information about roles, see Access management in Yandex Cloud Organization. -
If you have a cloud but no organization, click Add new DataLens. In the window that opens, enter your organization's name and description and click Create organization and DataLens. For more information about working with organizations, see Getting started with organizations.
-
If you have any technical questions about the service, contact Yandex Cloud support
Create a workbook
- Go to the DataLens home page
. - In the left-hand panel, select
Collections and workbooks. - In the top-right corner, click Create → Create workbook.
- Enter a name for the workbook:
Tutorials
. - Click Create.
Create a connection
A connection named Sample ClickHouse will be created for database access.
-

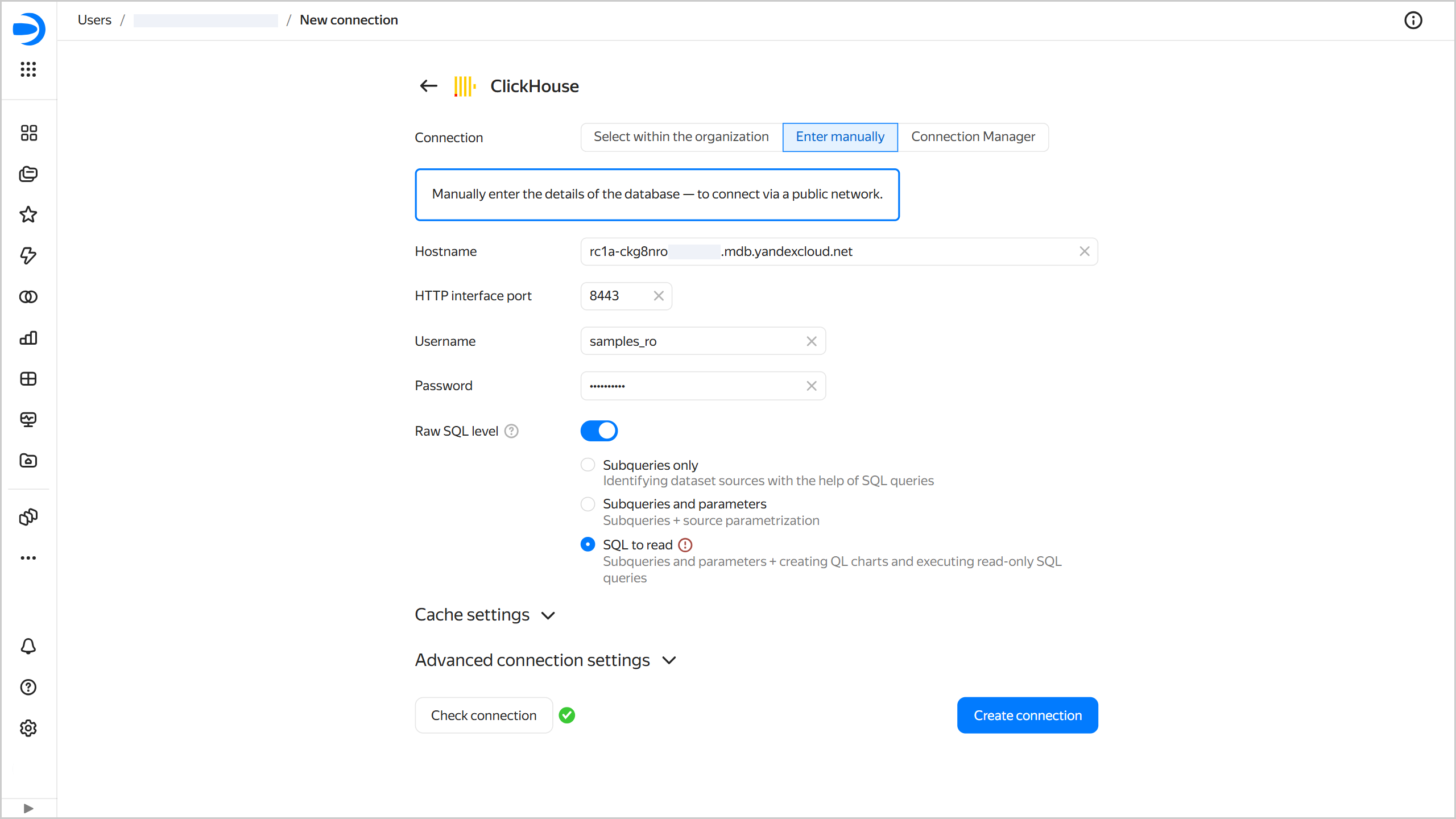

In the top-right corner of the workbook, click Create →
Connection. -
Under Databases, select the ClickHouse® connection.
-

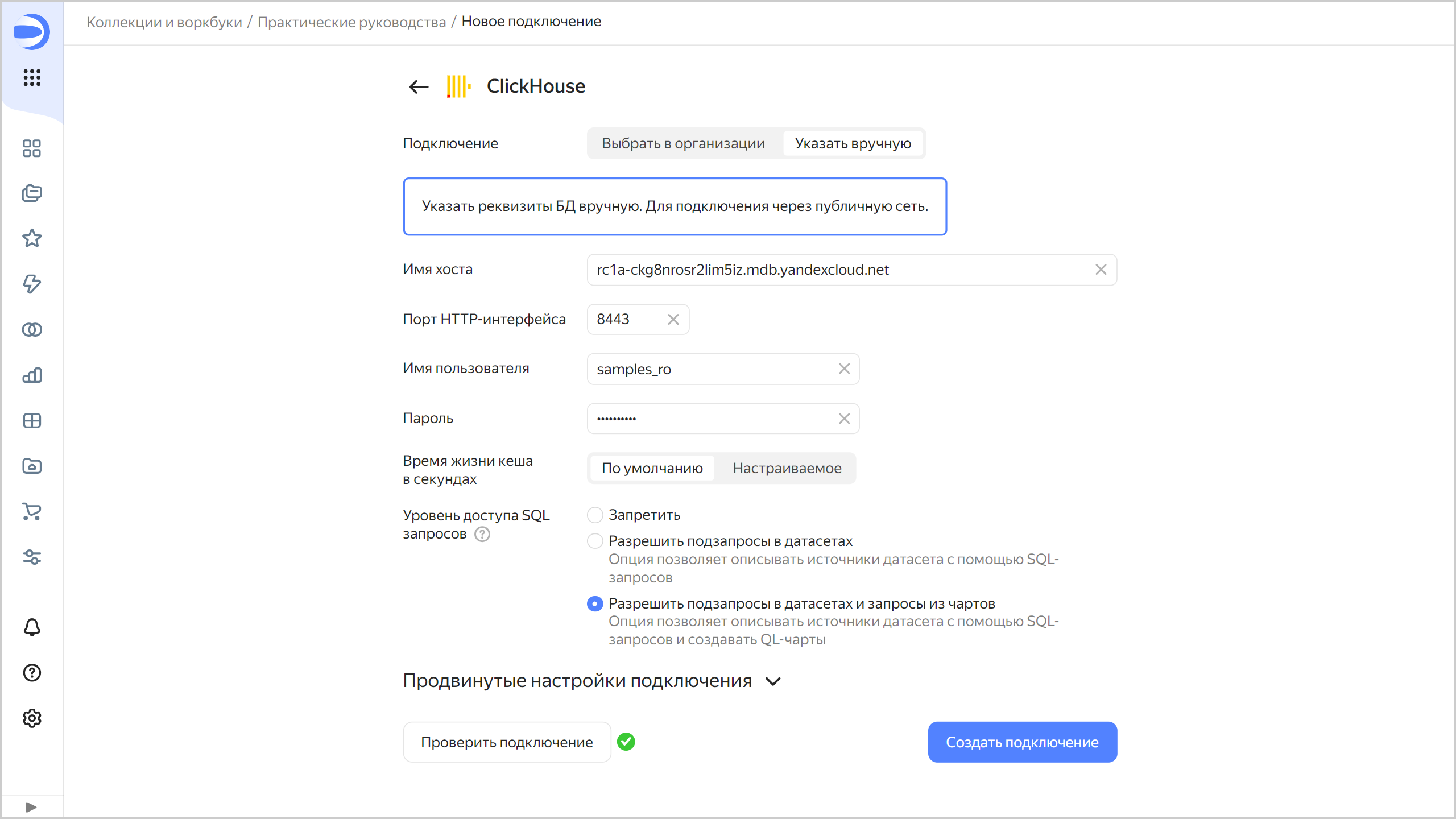

In the window that opens, select
Specify manually
for the connection type and provide the following connection parameters:- Host name:
rc1a-ckg8nrosr2lim5iz.mdb.yandexcloud.net
- HTTP interface port:
8443
(default) - Username:
samples_ro
- Password:
MsgfcjEhJk
- Host name:
-
Enable Allow subqueries in datasets and queries from charts.
-
Click Check connection and make sure you get a green check mark.
-
Click Create connection.
-
Enter the connection name:
Sample ClickHouse
. -
Click Create.
-
Wait for the connection to be saved.
Create a dataset
Create a dataset based on the Sample ClickHouse
connection:
-
In the top-right corner of the connection page, click Create dataset.
-

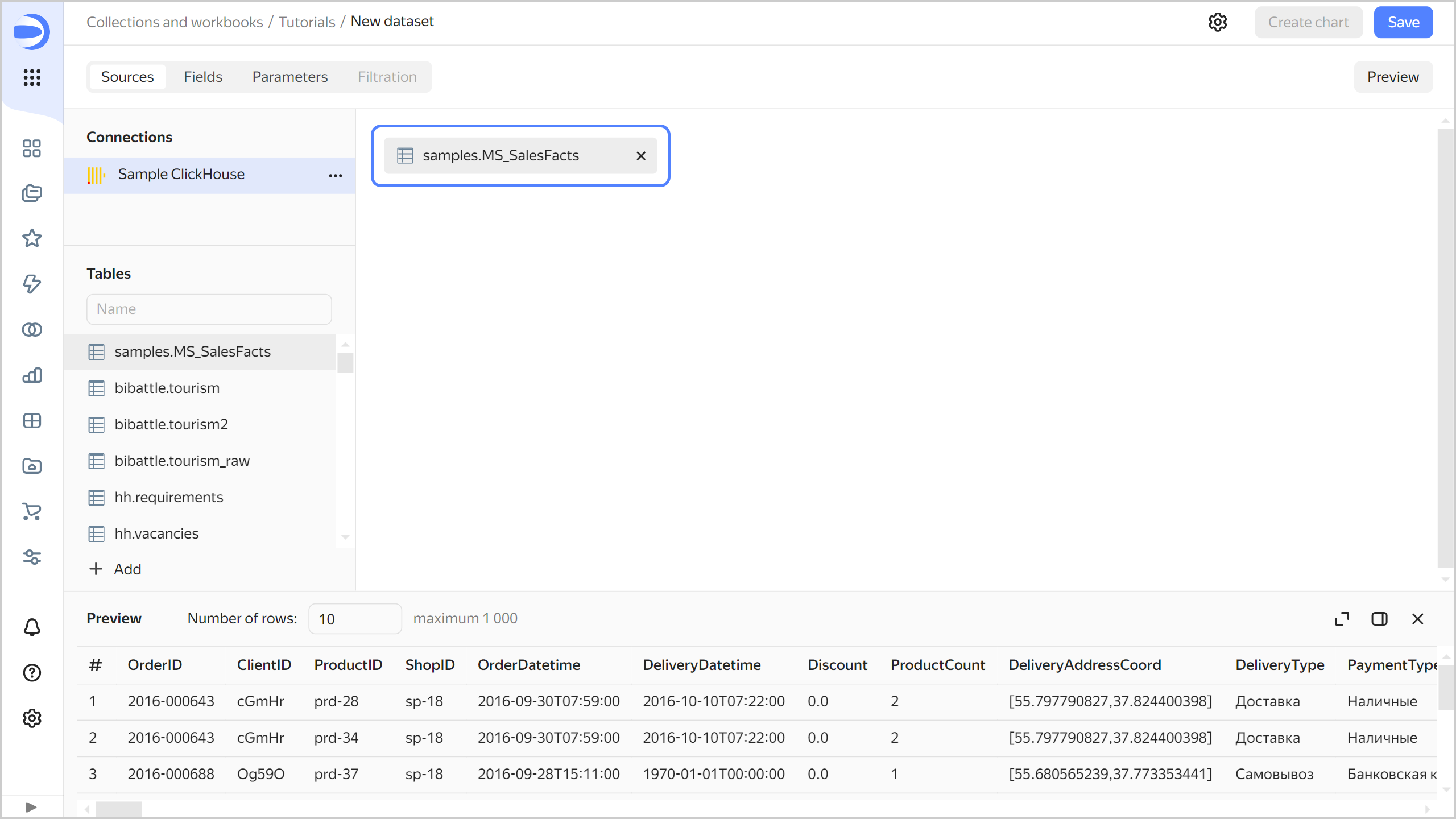

Drag the
MS_SalesFacts
table to the workspace. -

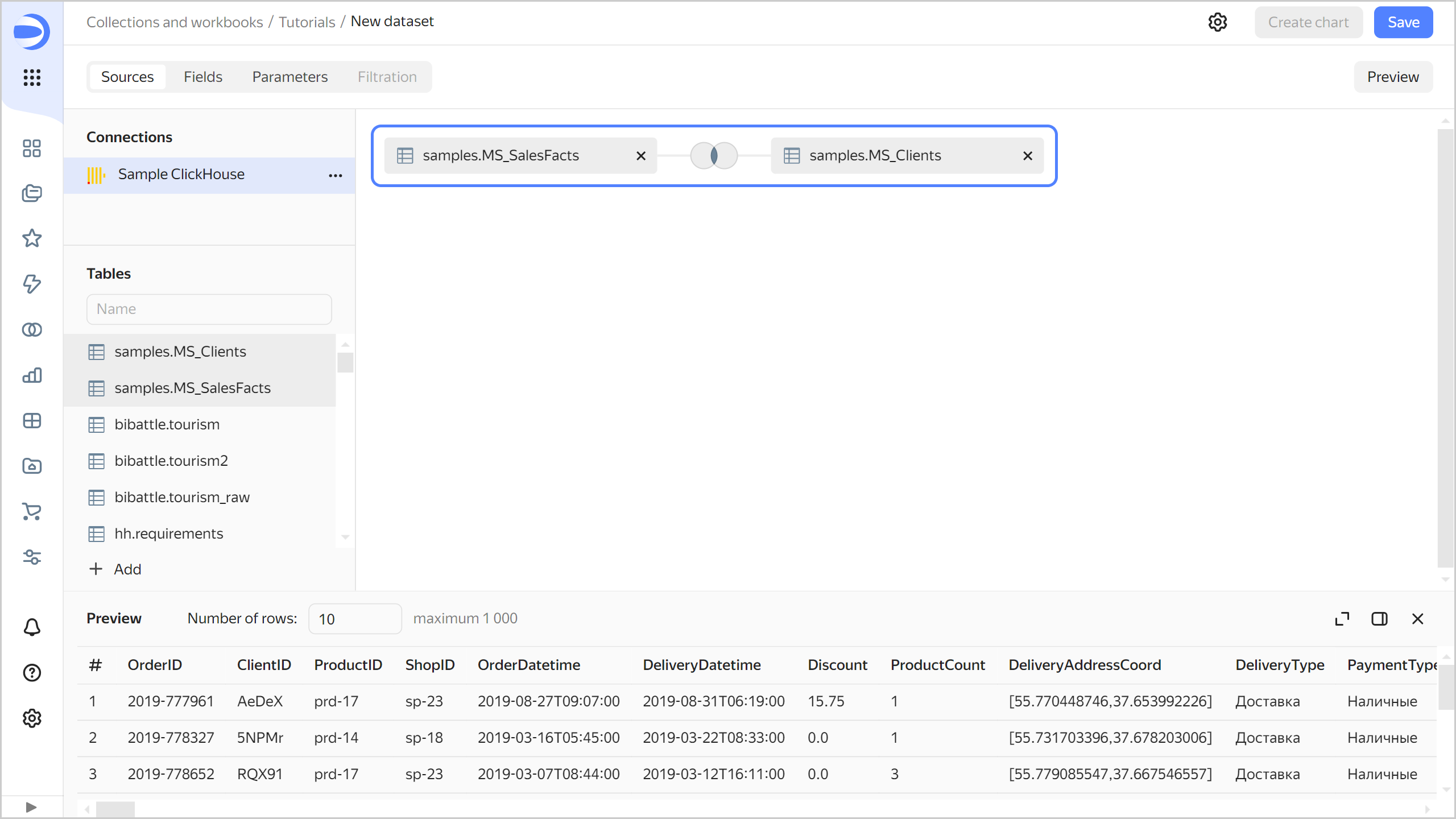

Drag the
MS_Clients
table to the workspace. The tables will be linked together automatically. -

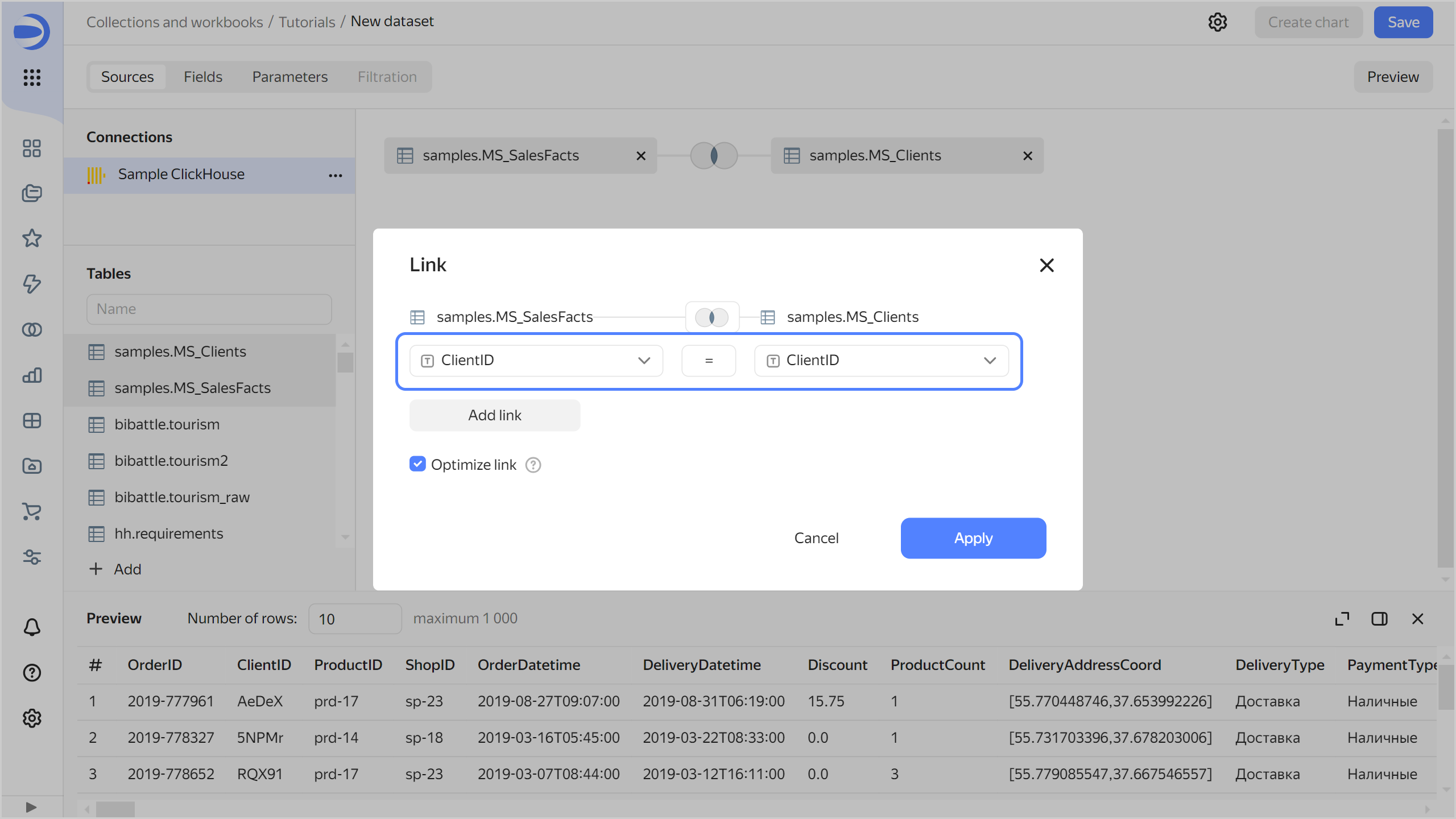

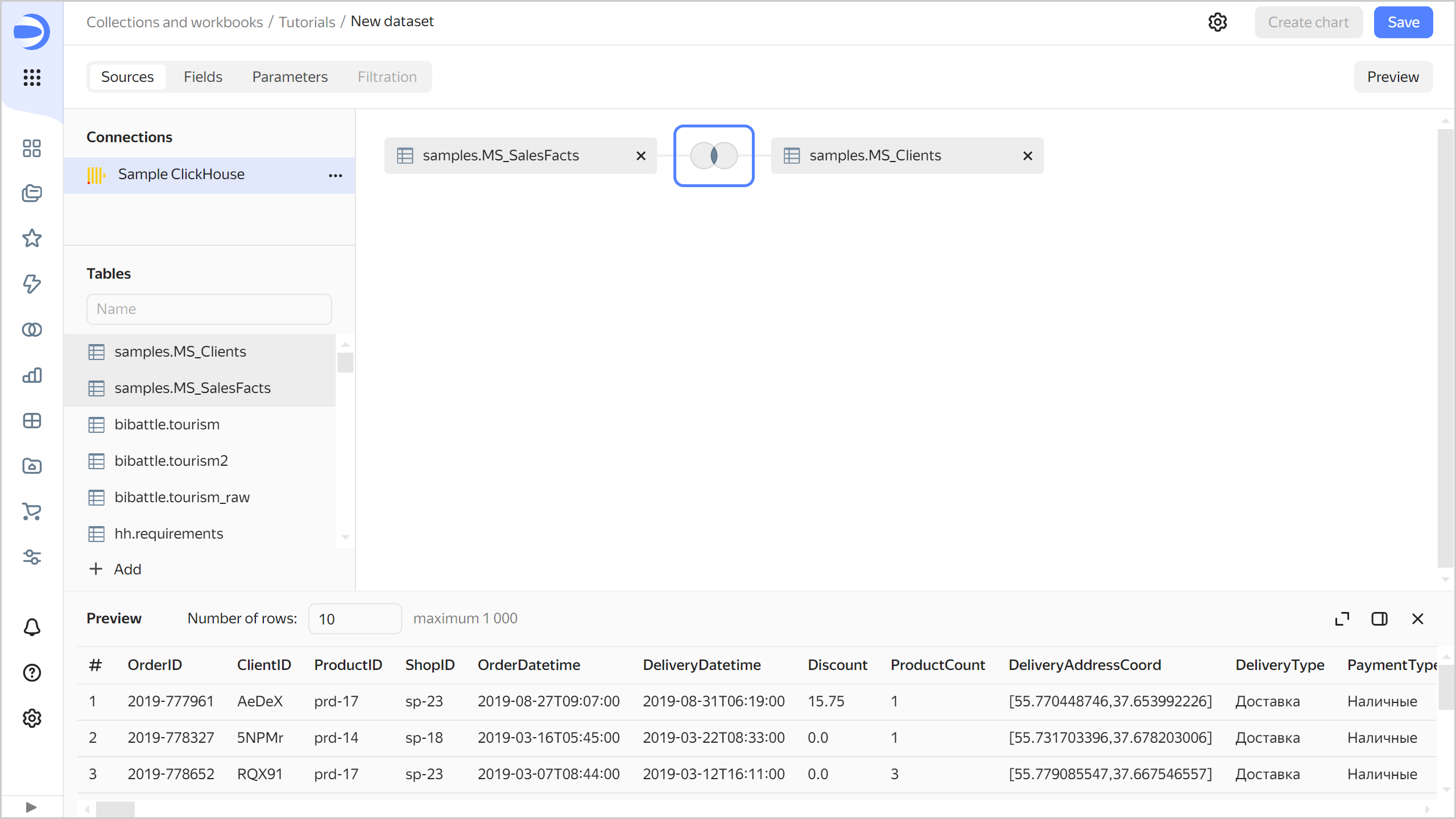

To check the link, click the link icon between the tables.
-
The tables are linked by the
ClientID
field. If needed, you can modify or expand the link by specifying another pair of fields. To close the link settings window, click or anywhere outside the window. -

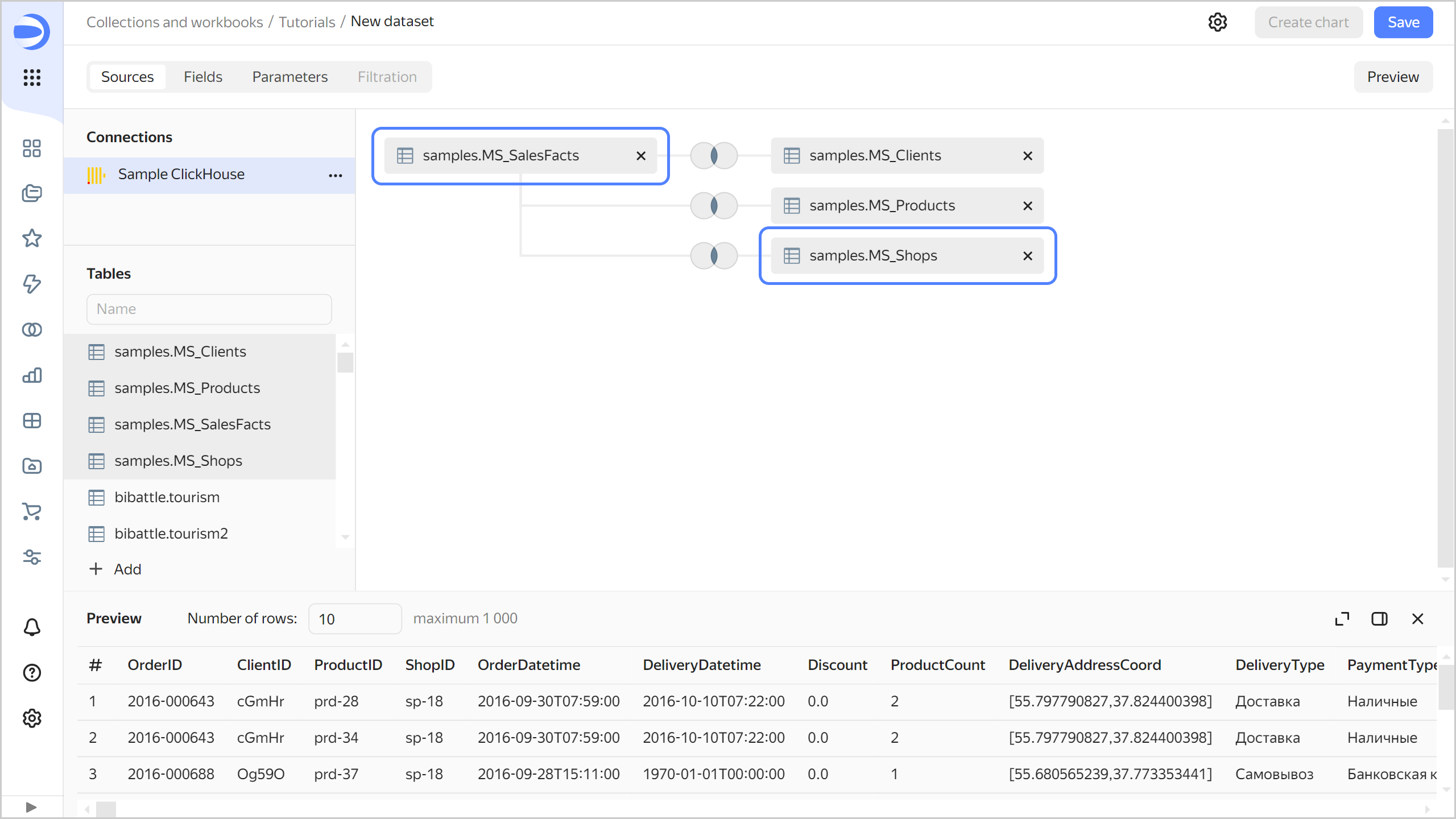

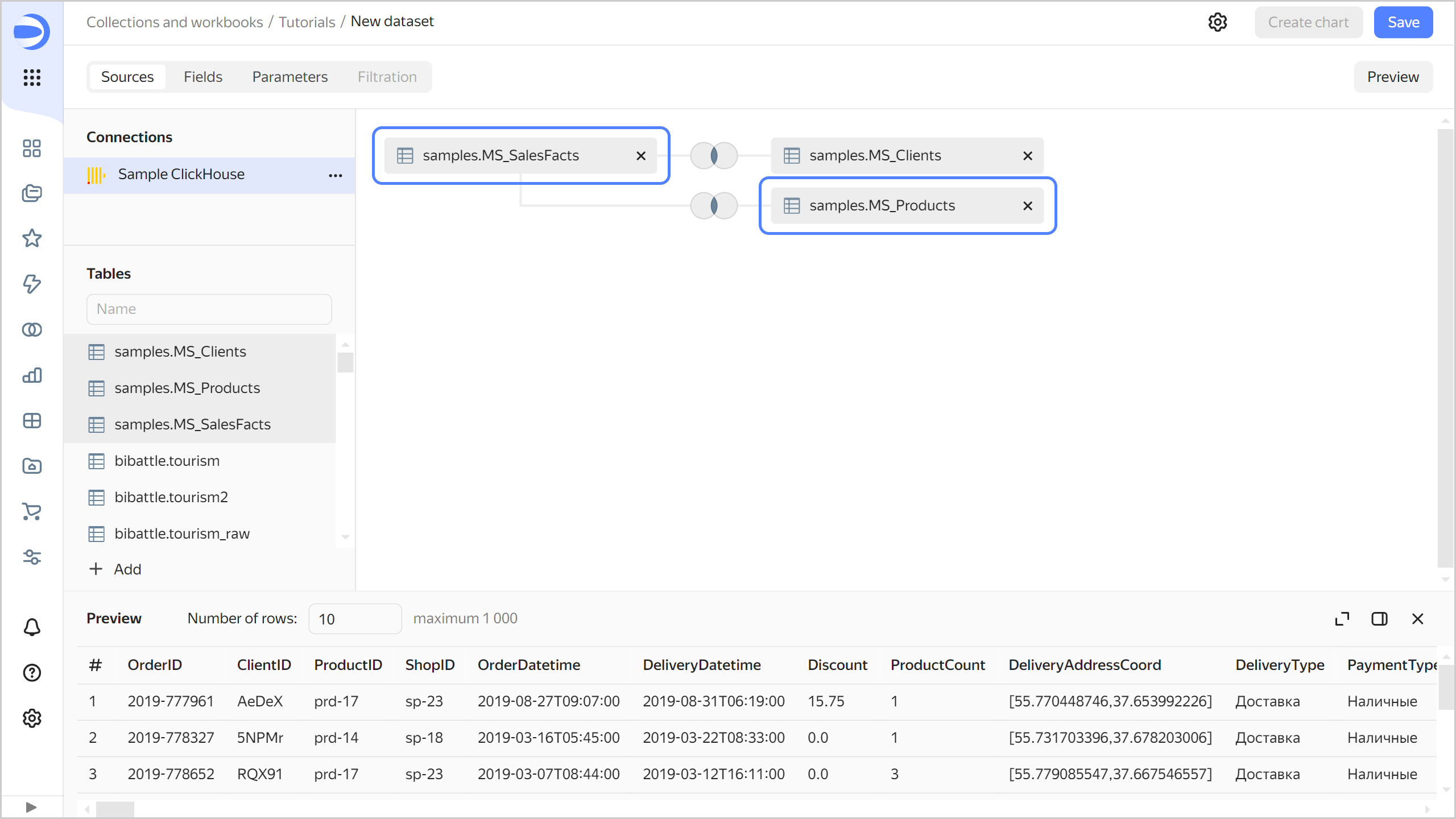

Drag the
MS_Products
table to the workspace. The table will automatically link with the left (root) tableMS_SalesFacts
. -
Drag the
MS_Shops
table to the workspace. The table will automatically link with the left (root) tableMS_SalesFacts
. -
Go to the Fields tab.
-

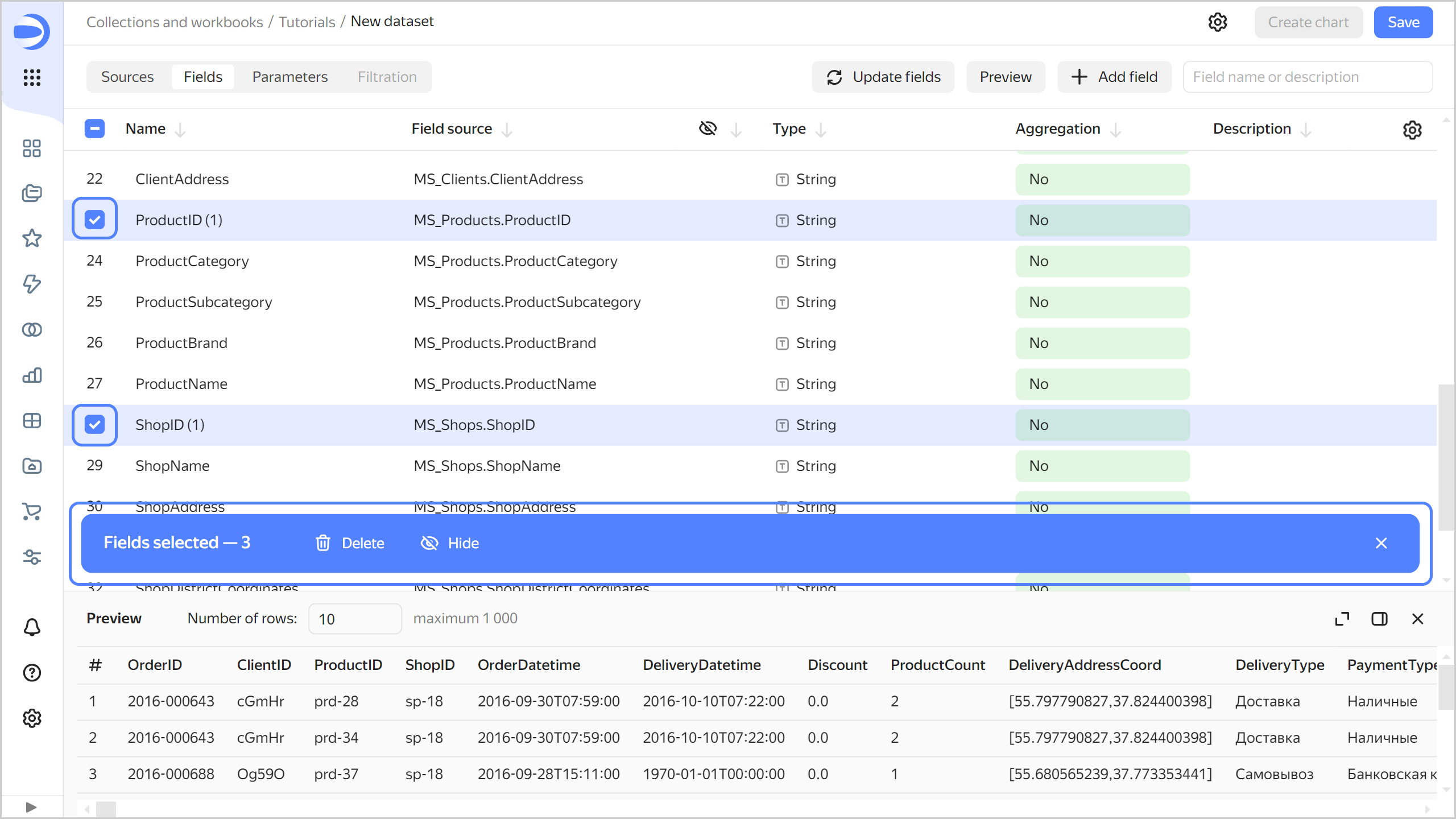

Delete the duplicate fields left over from joining the tables:
ClientID (1)
,ProductID (1)
, andShopID (1)
. To do this, select them and click Delete in the panel below the list of fields. -

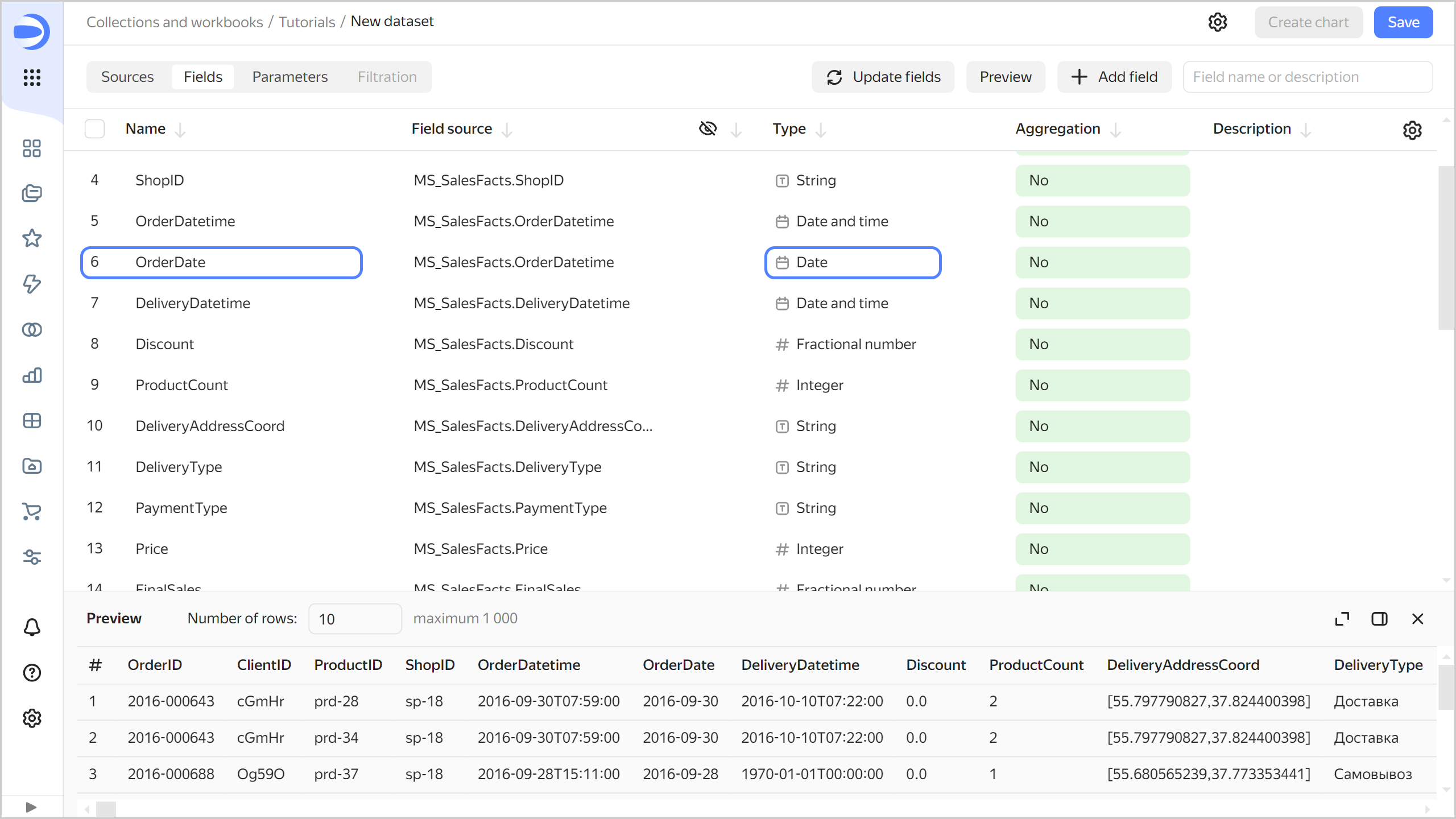

Create an order date field named
OrderDate
:- Duplicate the
OrderDatetime
field: on the right side of the row with the field, click and select Duplicate. - Rename the
OrderDatetime (1)
duplicate field asOrderDate
: click the field name, delete the current name, and enter the new one. - In the Type column, change the data type from Date and time to Date.
- Duplicate the
-
Change data types for the fields as follows:
ShopDistrictCoordinates
: Change to Geopolygon.DeliveryDistrictCoordinates
: Change to Geopolygon.DeliveryAddressCoord
: Change to Geopoint.
-

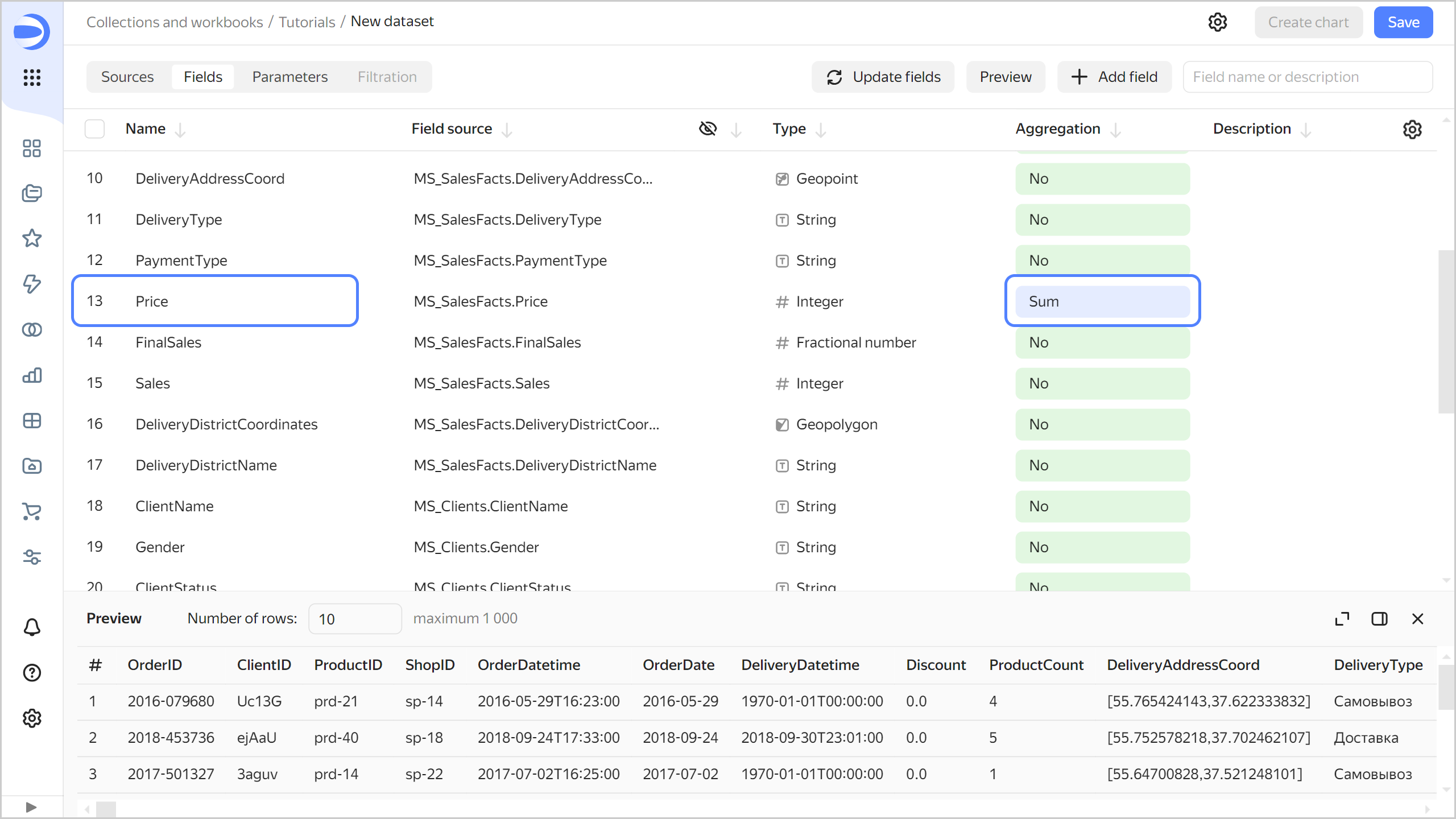

Create a measure for the order amount: in the Aggregation column, select Sum for the
Price
field. The aggregation field changes color to blue: it is now a measure. -
Create a measure for the number of orders:
- Duplicate the
OrderID
field. - Rename the
OrderID (1)
duplicate field toOrderCount
. - Change the aggregation type to Number of unique.
- Duplicate the
-

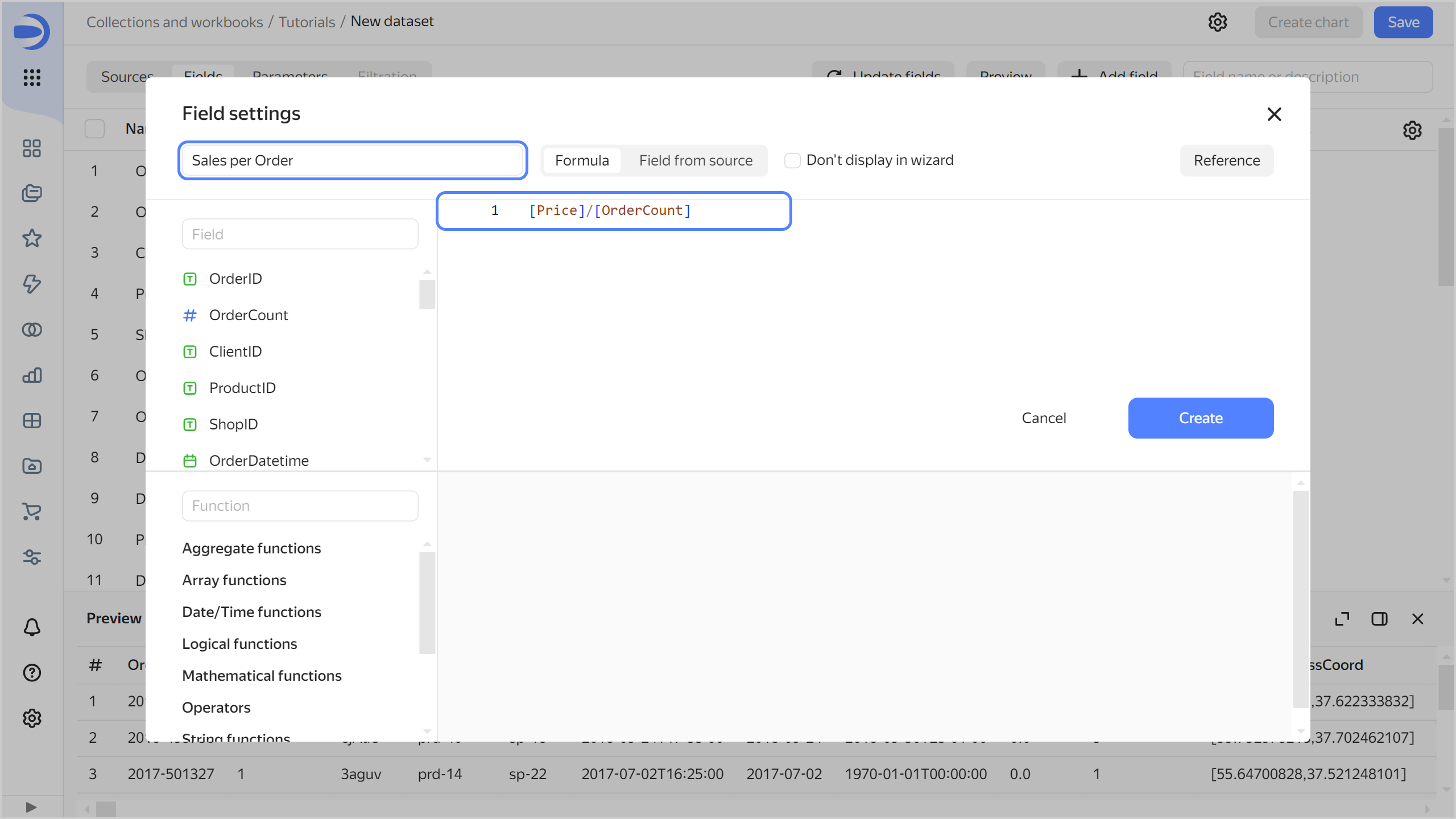

Create a calculated field for the average sales amount per order:
- In the top-right corner, click Add field.
- At the top-left, specify the field name:
Sales per Order
. - In the column to the left, click the
Price
field. - Enter
/
. - In the column to the left, click the
OrderCount
field. - Click Create.
-
Save the dataset:
- In the top-right corner, click Save.
- Enter
Moscow Sales dataset
for the dataset name and click Create.
Create a line chart
To visualize sales dynamics by month, create a line chart:
-
On the dataset page, click Create chart in the top-right corner.
-

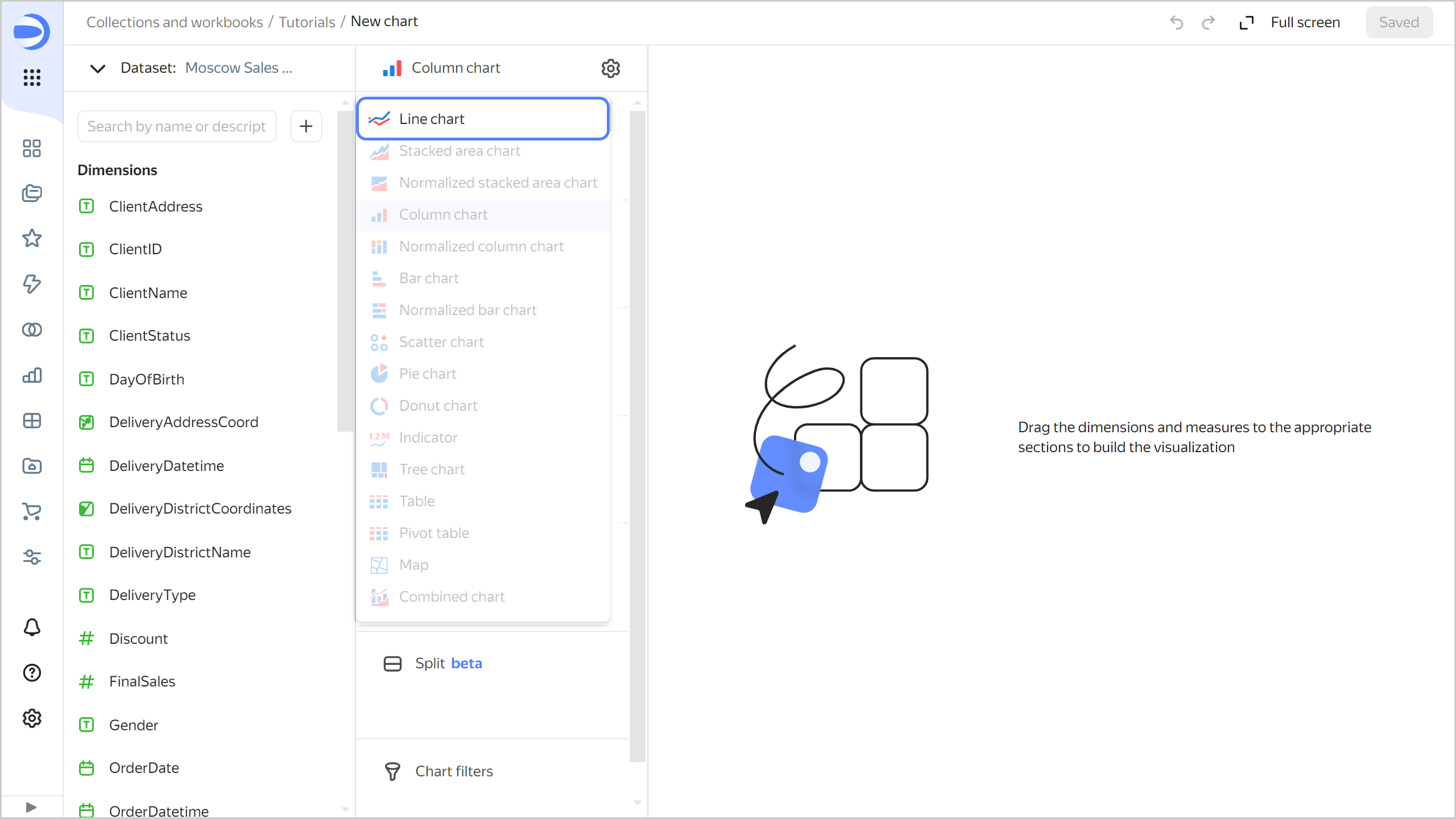

For the visualization type, choose Line chart.
-

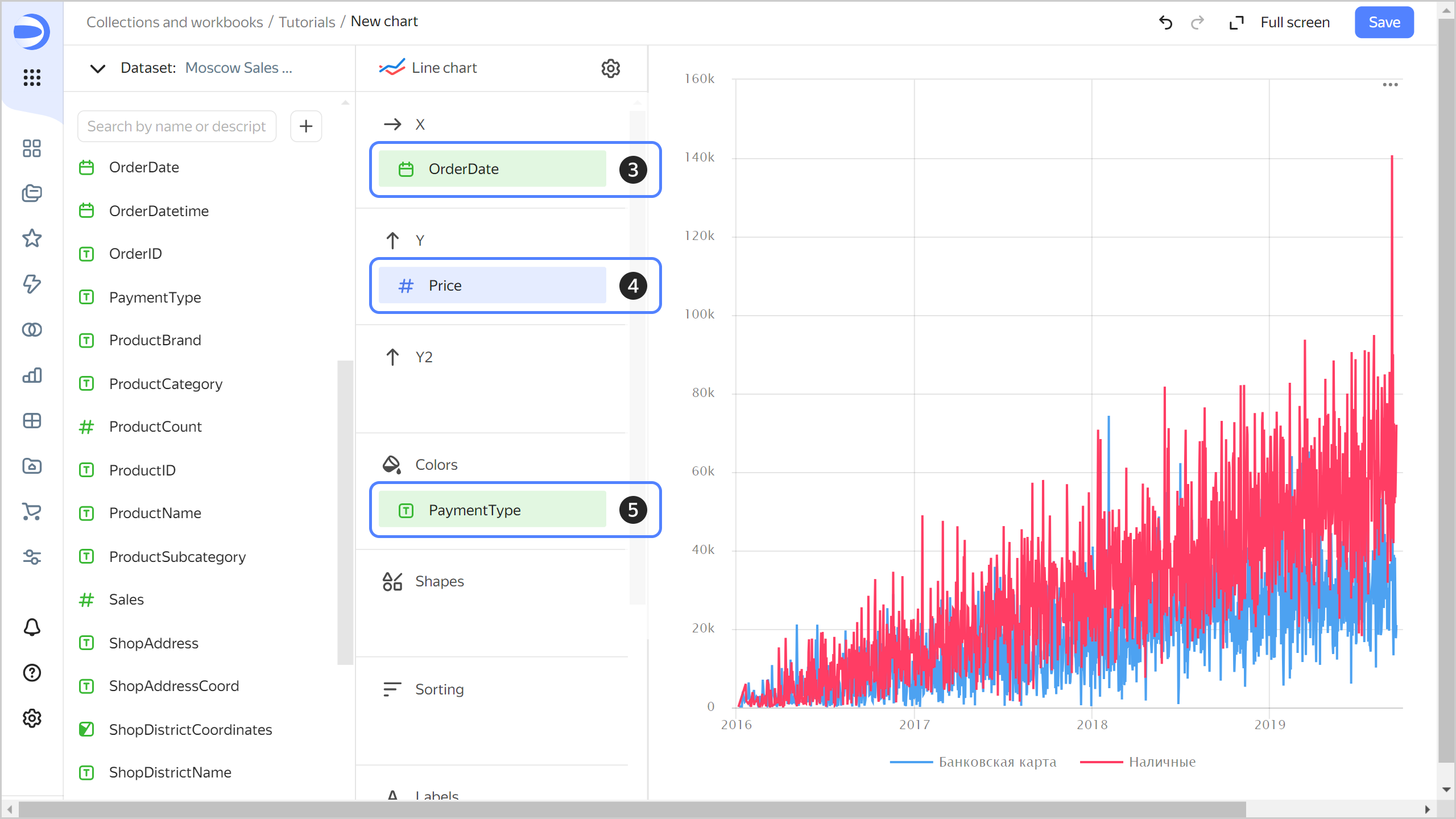

Add a sales date to the chart. To do this, drag the
OrderDate
field from Dimensions to the X section. -
Add a sales measure to the chart. To do this, drag the
Price
field from Measures to the Y section. -
Add a delivery type to the chart. To do this, drag the
PaymentType
field from Dimensions to the Colors section. -

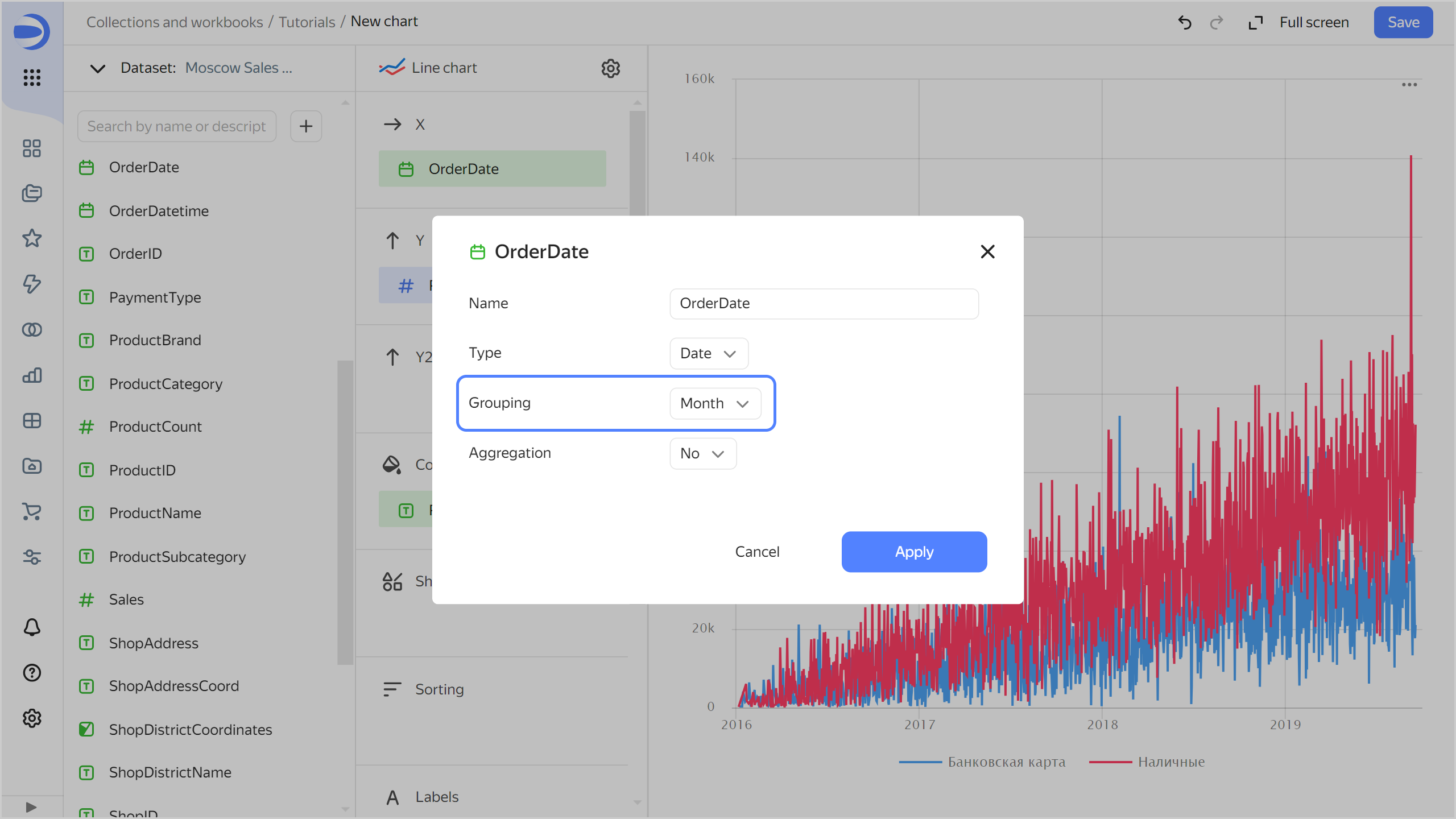

Display the chart by month:
- Click the calendar icon next to the
OrderDate
field in the X section. - In the Grouping field, select Rounding ⟶ Month and click Apply.
- Click the calendar icon next to the
-

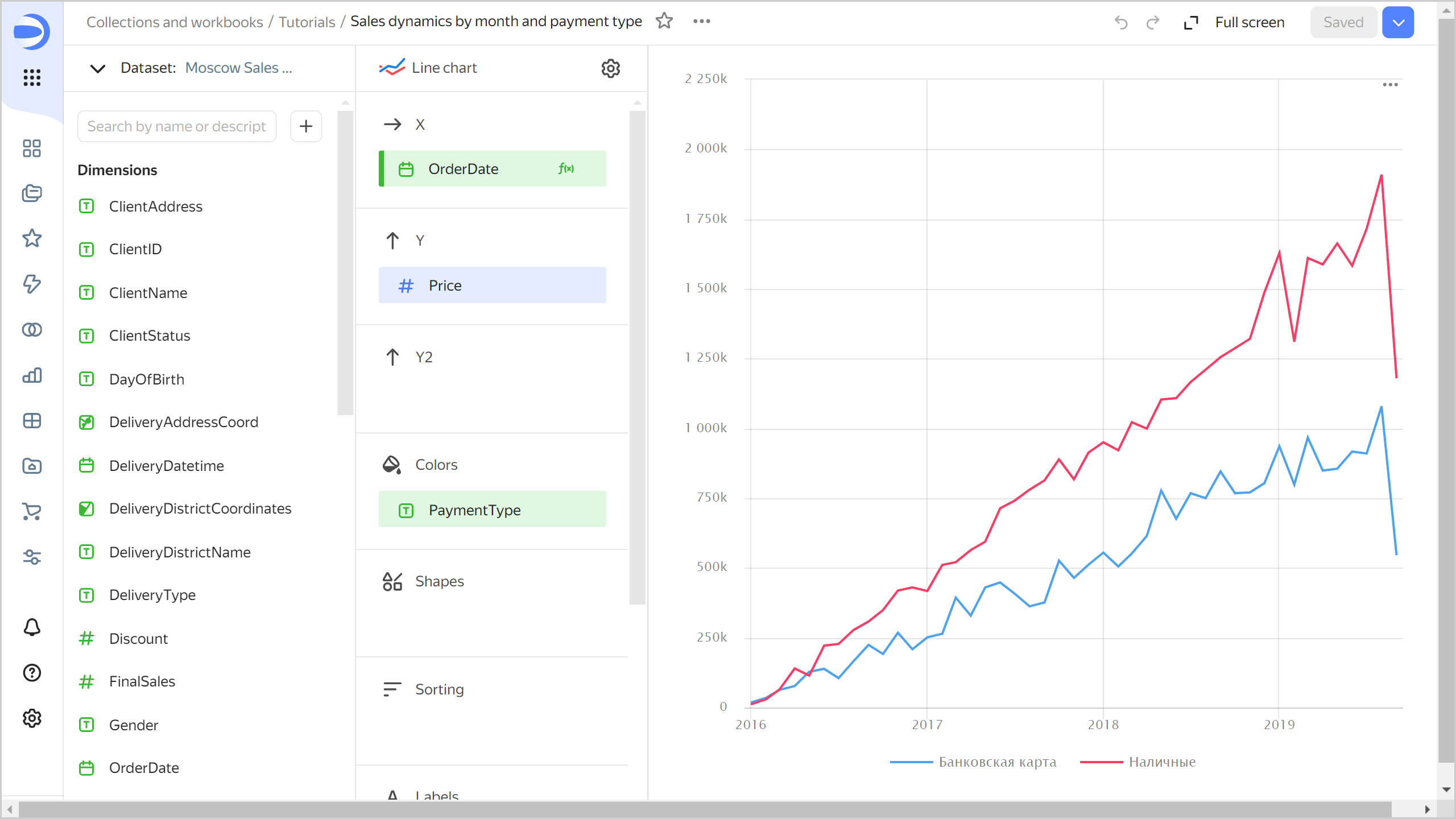

Save the chart:
- In the top-right corner, click Save.
- In the window that opens, enter a name for the chart:
Sales dynamics by month and payment type
, and click Save.
Create a column chart
To visualize sales by brand and product category, create a column chart.
-

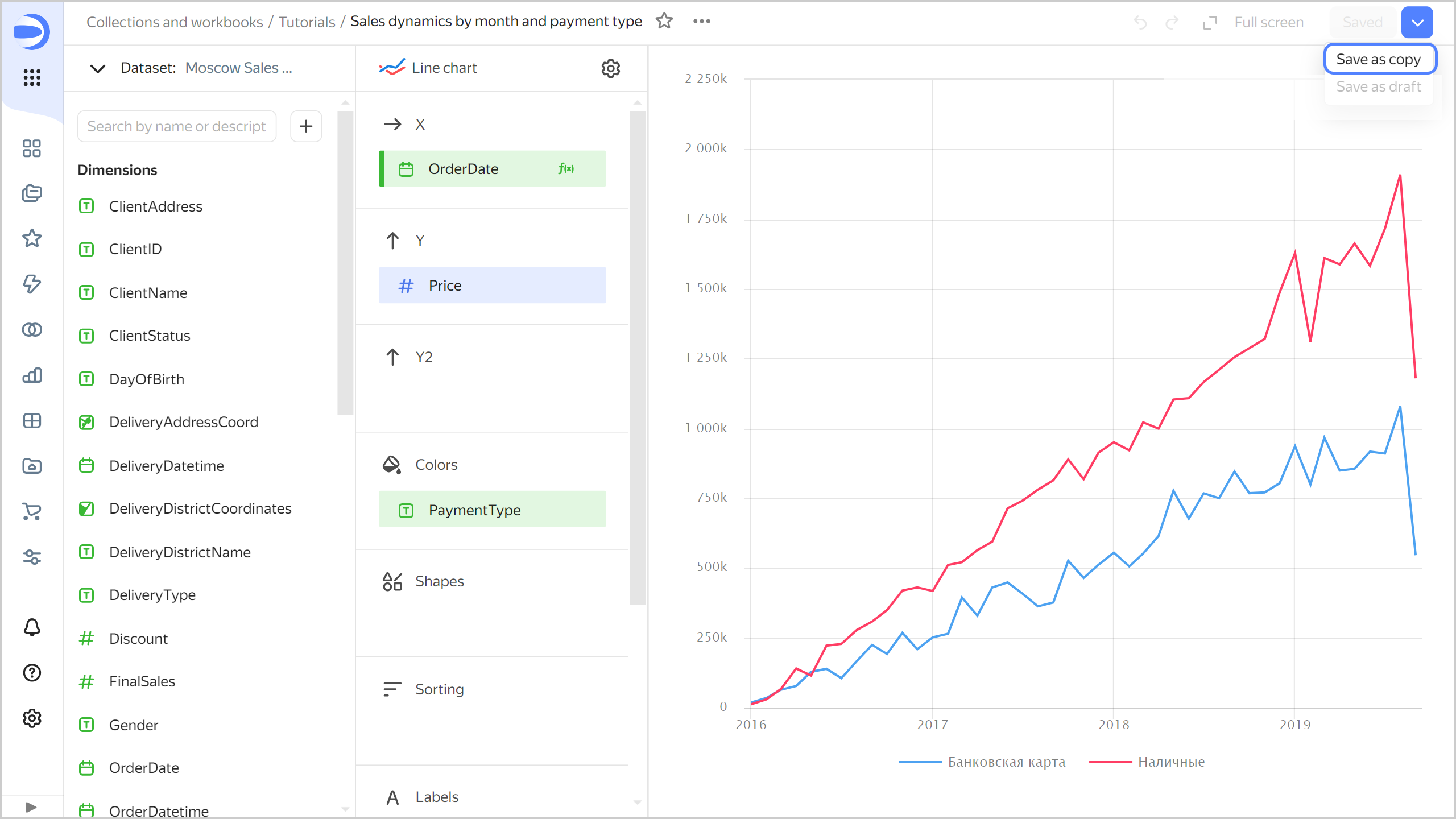

Copy the chart you created in the previous step:
-
In the top-right corner, click
→ Save as copy. -
In the window that opens, enter the
Sales by brand and category
name for the new chart and click Save.
-
-

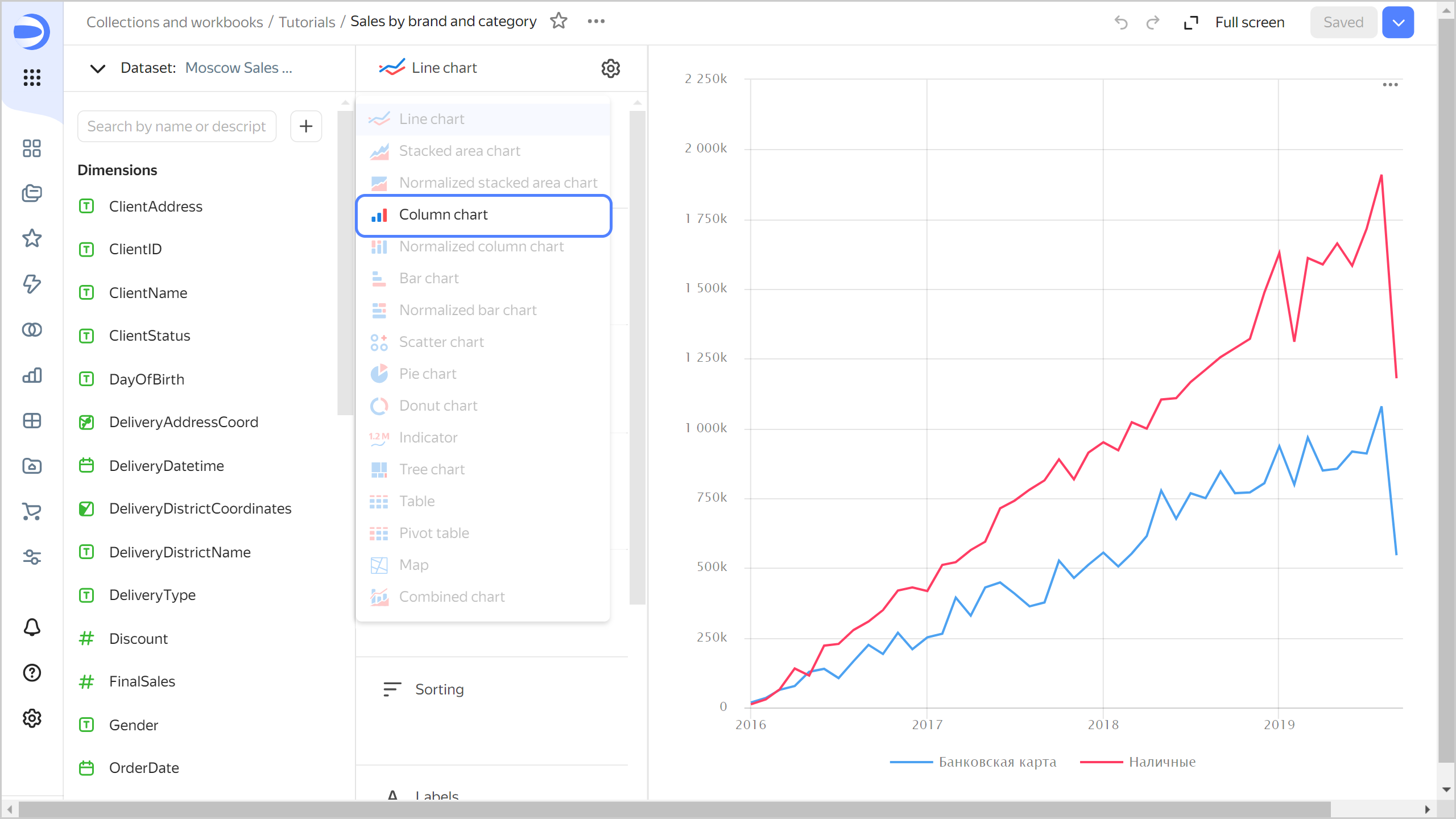

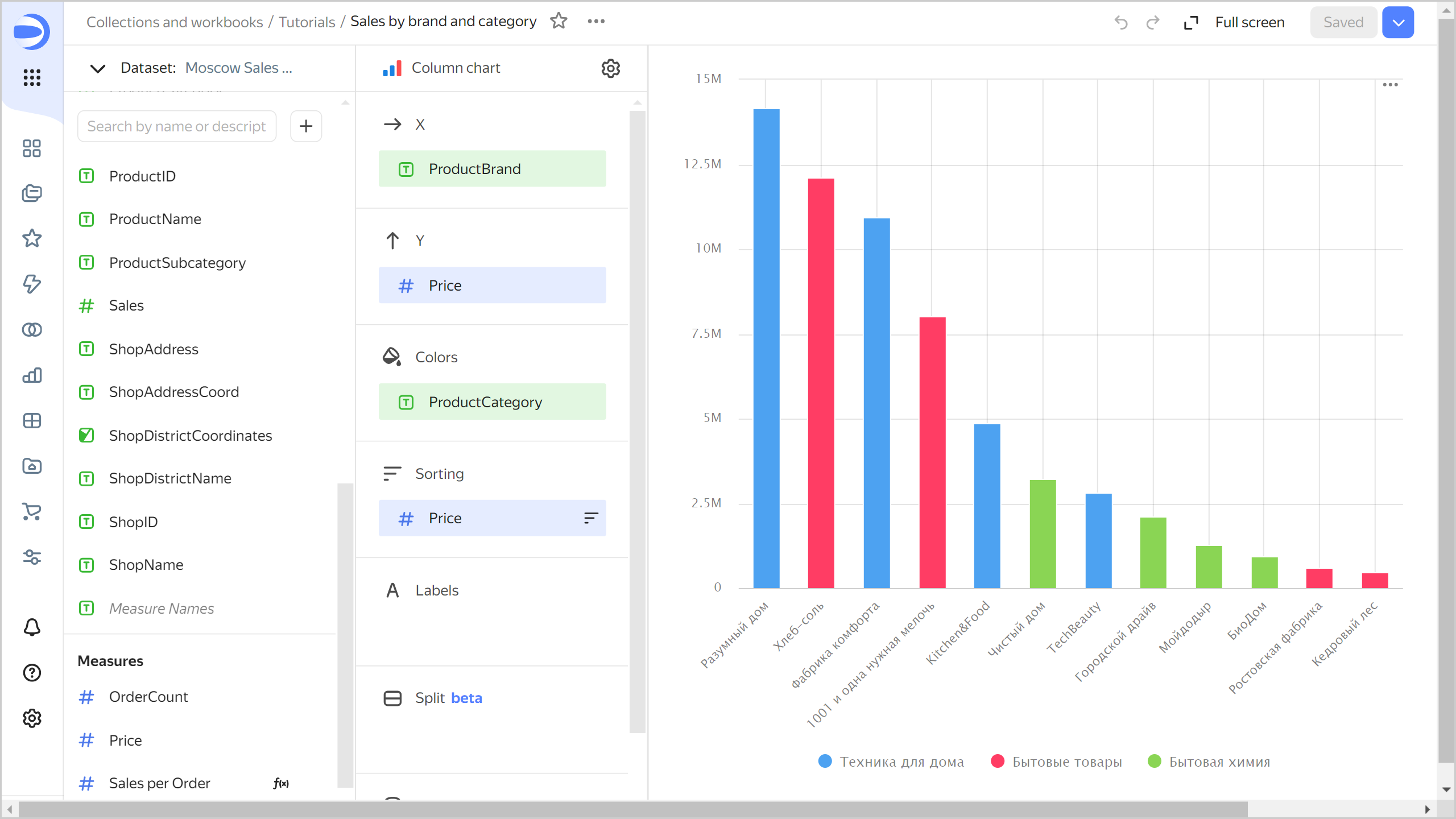

Select the Bar chart visualization type.
-
The
OrderDate
,Price
, andPaymentType
fields are automatically added to the X, Y, and Colors sections, respectively. -
Replace the months with brands on the X-axis. To do this, drag the
ProductBrand
field from Dimensions to the X section and hold it over theOrderDate
field until the latter turns red. -
Under Colors, replace payment types with product categories. To do this, drag the
ProductCategory
field from Dimensions to the Colors section and hold it over thePaymentType
field until the latter turns red. -
Sort the chart in descending order of the sales measure. To do this, drag the
Price
field from Measures to the Sorting section. -
Save your chart: click Save in the top-right corner.
Create a pivot table chart
To visualize sales by product and time, create a pivot table chart.
-
Copy the chart you created in the previous step:
- In the top-right corner, click
→ Save as copy. - In the window that opens, enter the name
Sales by year and product
for the new chart, and click Save.
- In the top-right corner, click
-

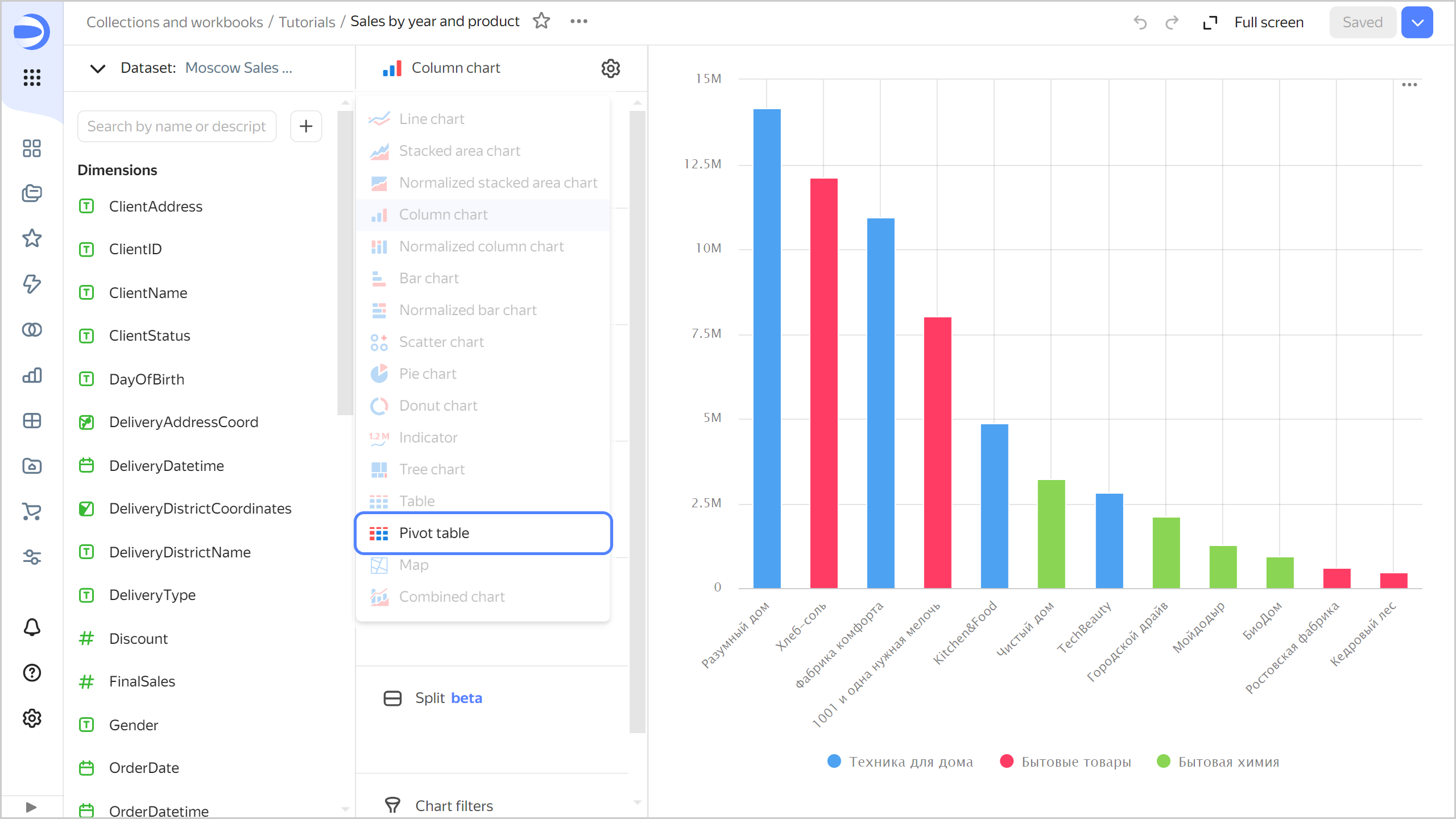

Choose the Pivot table visualization type.
-
The
ProductBrand
andPrice
fields will automatically appear in the Columns and Measures sections, respectively. -
Remove
ProductBrand
from the table. To do this, click (the icon appears when you hover over the field) next to the field in the Columns section. -

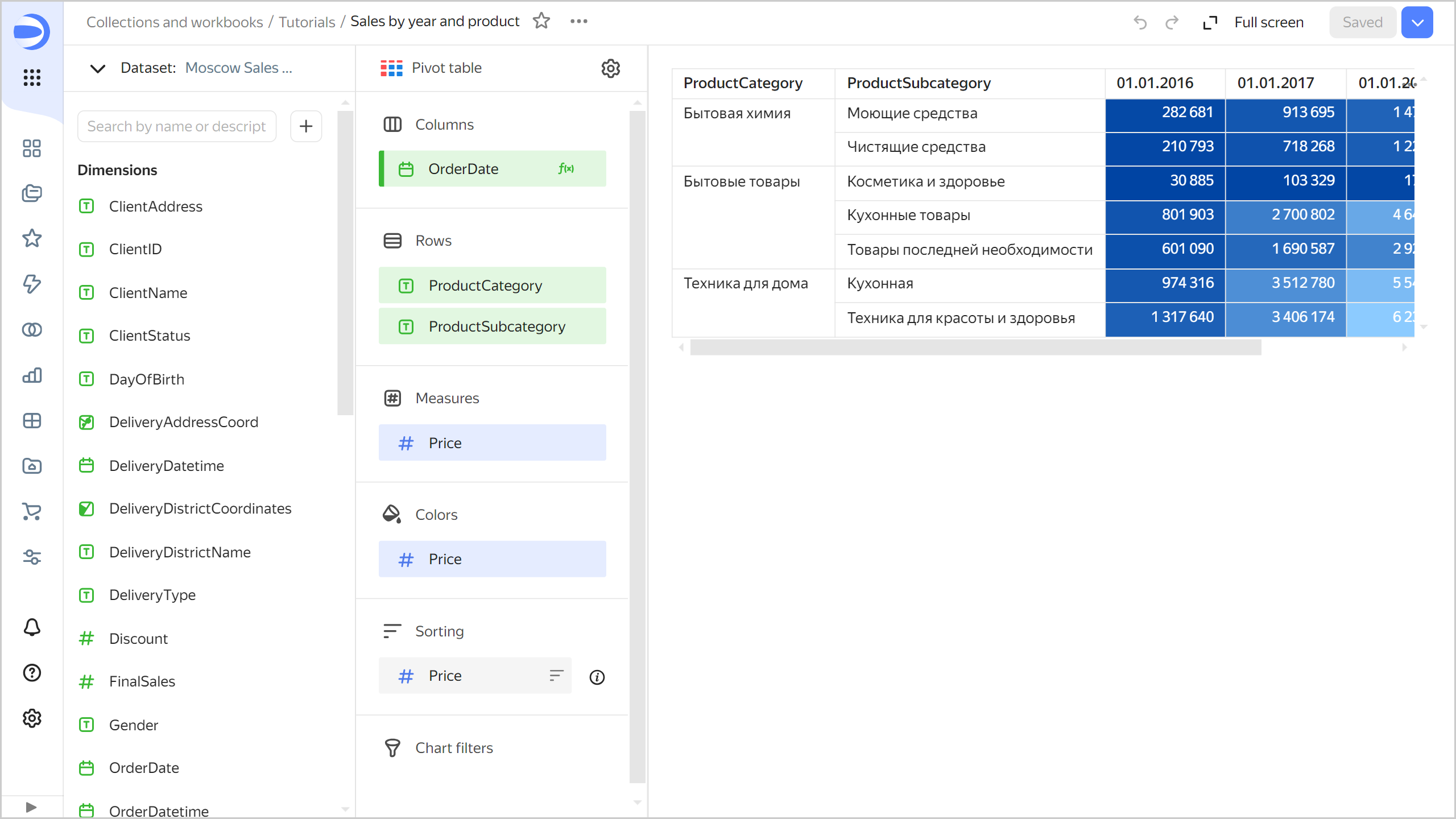

Add the order date to the table. To do this, drag the
OrderDate
field from Dimensions to the Columns section. -
Change the display format in the
OrderDate

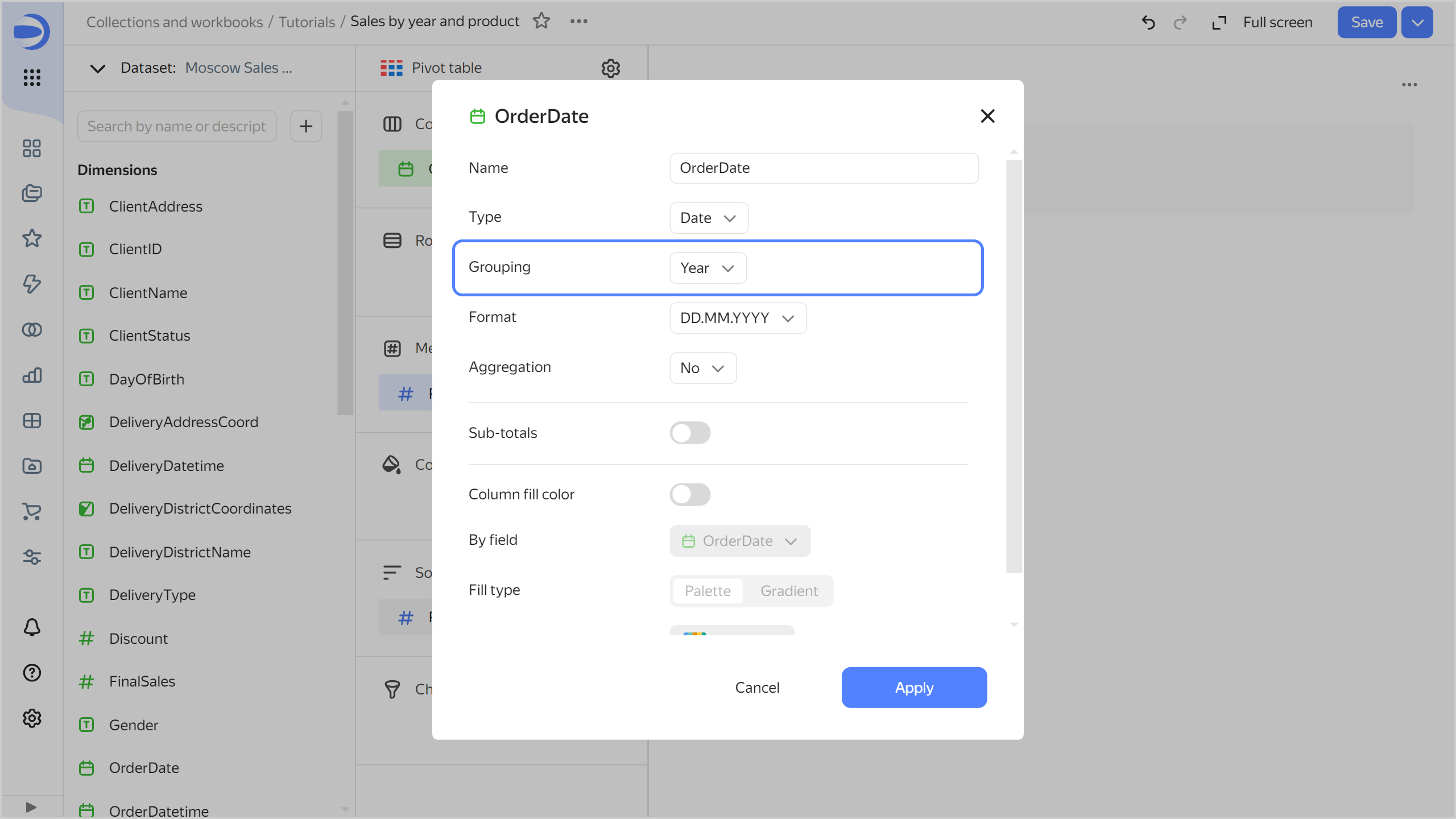

field to years:- Click the calendar icon next to the
OrderDate
field in the Columns section. - In the Grouping field, select Date part ⟶ Year and click Apply.
- Click the calendar icon next to the
-
Add the product category and subcategory to the table. To do this, drag the
ProductCategory
andProductSubcategory
fields from Dimensions to the Rows section. -
Change the color of the sales measure in the table. To do this, drag the
Price
field from Measures to the Colors section. -
In the top-right corner, click Save.
Create a heat map chart
To visualize the density of orders on the map of Moscow, create a heat map chart.
-
Copy the chart you created in the previous step:
- In the top-right corner, click
→ Save as copy. - In the window that opens, enter the
Sales heat map
name for the new chart and click Save.
- In the top-right corner, click
-

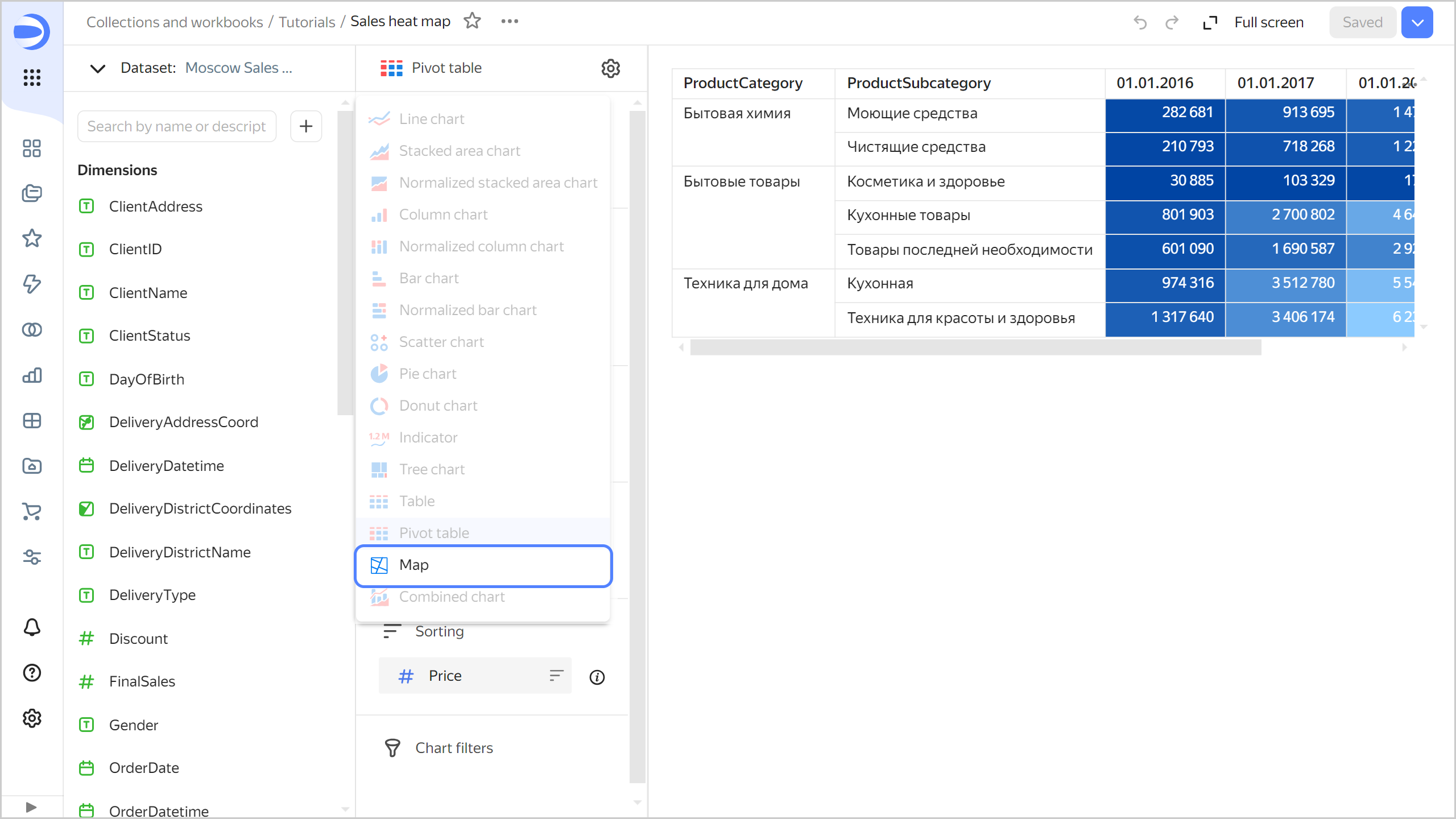

Select the Map visualization type.
-

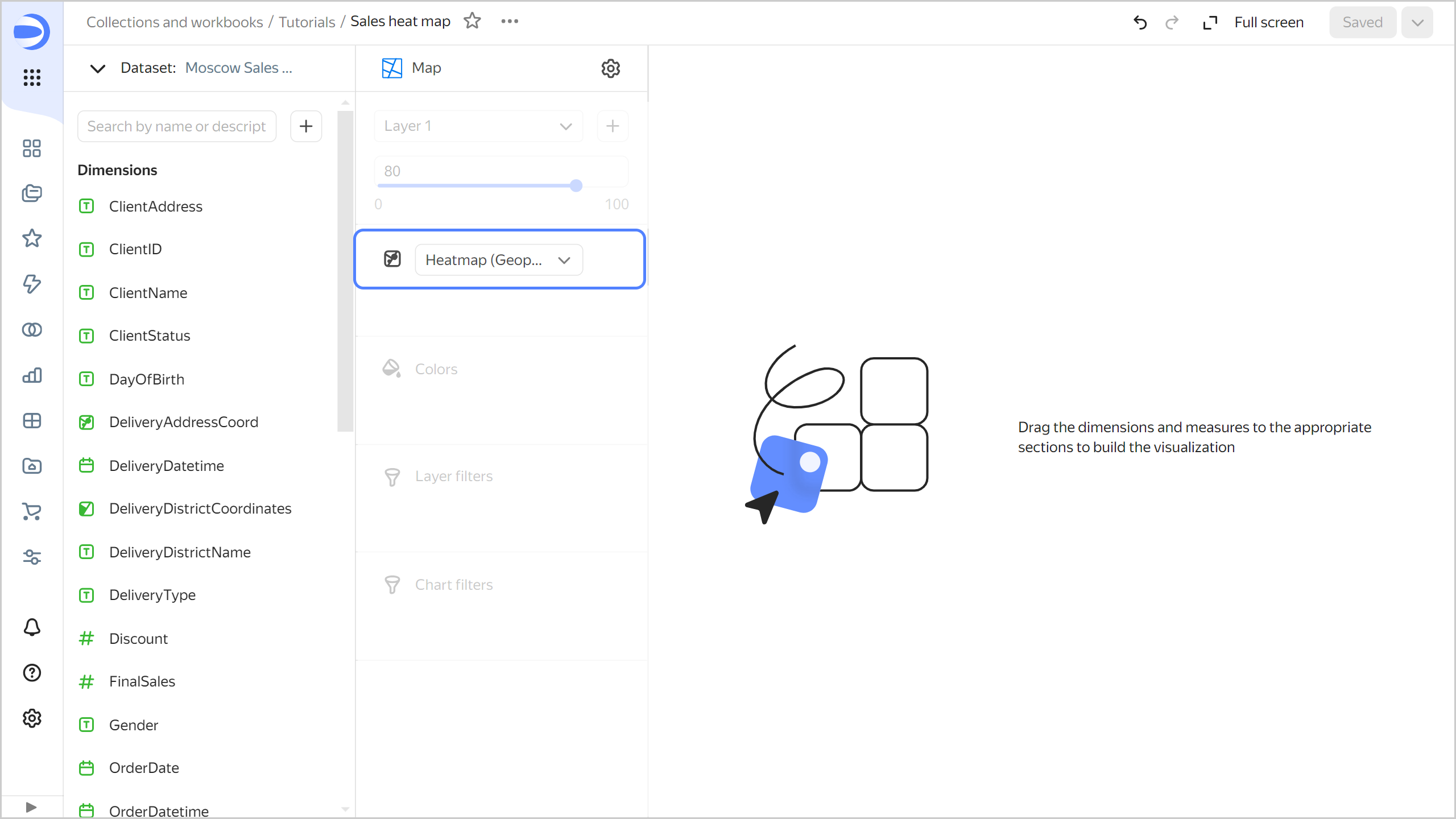

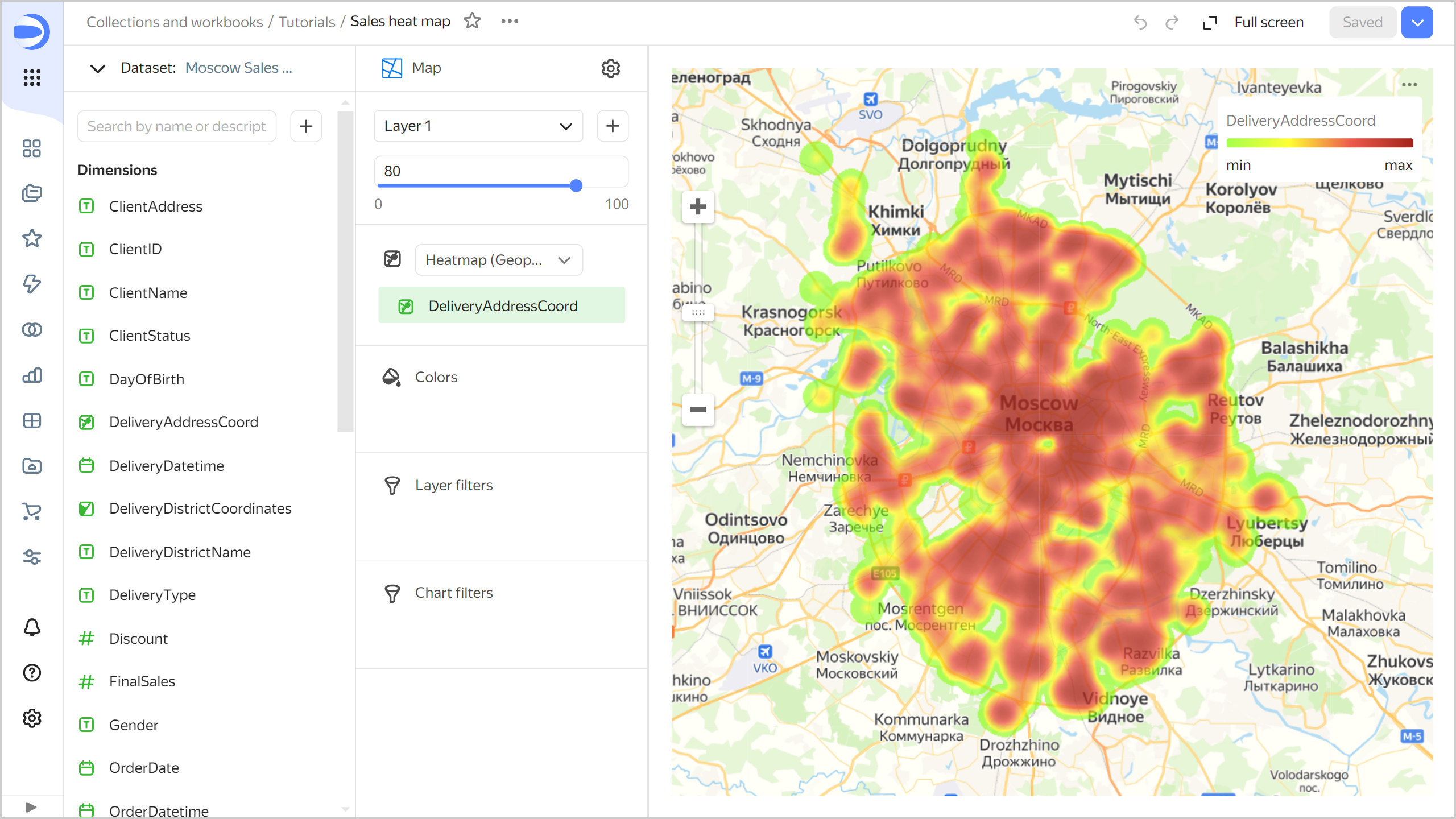

Select the Heat map (Geopoints) layer type.
-
Add the delivery point coordinates to the map. To do this, drag the
DeliveryAddressCoord
field from Dimensions to the Heatmap (Geopoints) section. -
In the top-right corner, click Save.

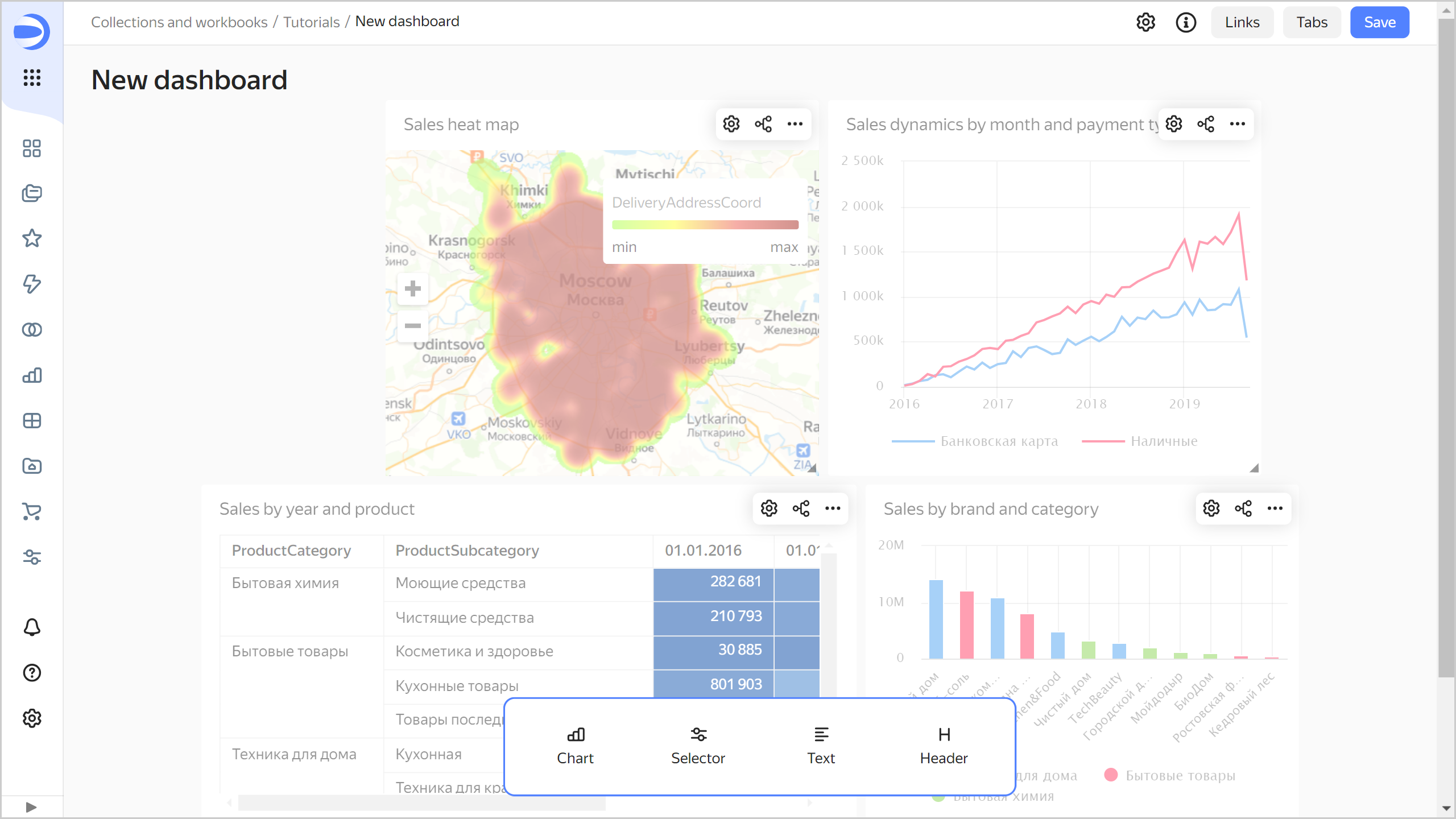

Create a dashboard and add charts to it
Create a dashboard to add charts and other widgets to:
-
In the left-hand panel, select
Collections and workbooks and go to theTutorials
workbook. -
In the top-right corner, click Create →
Dashboard. -

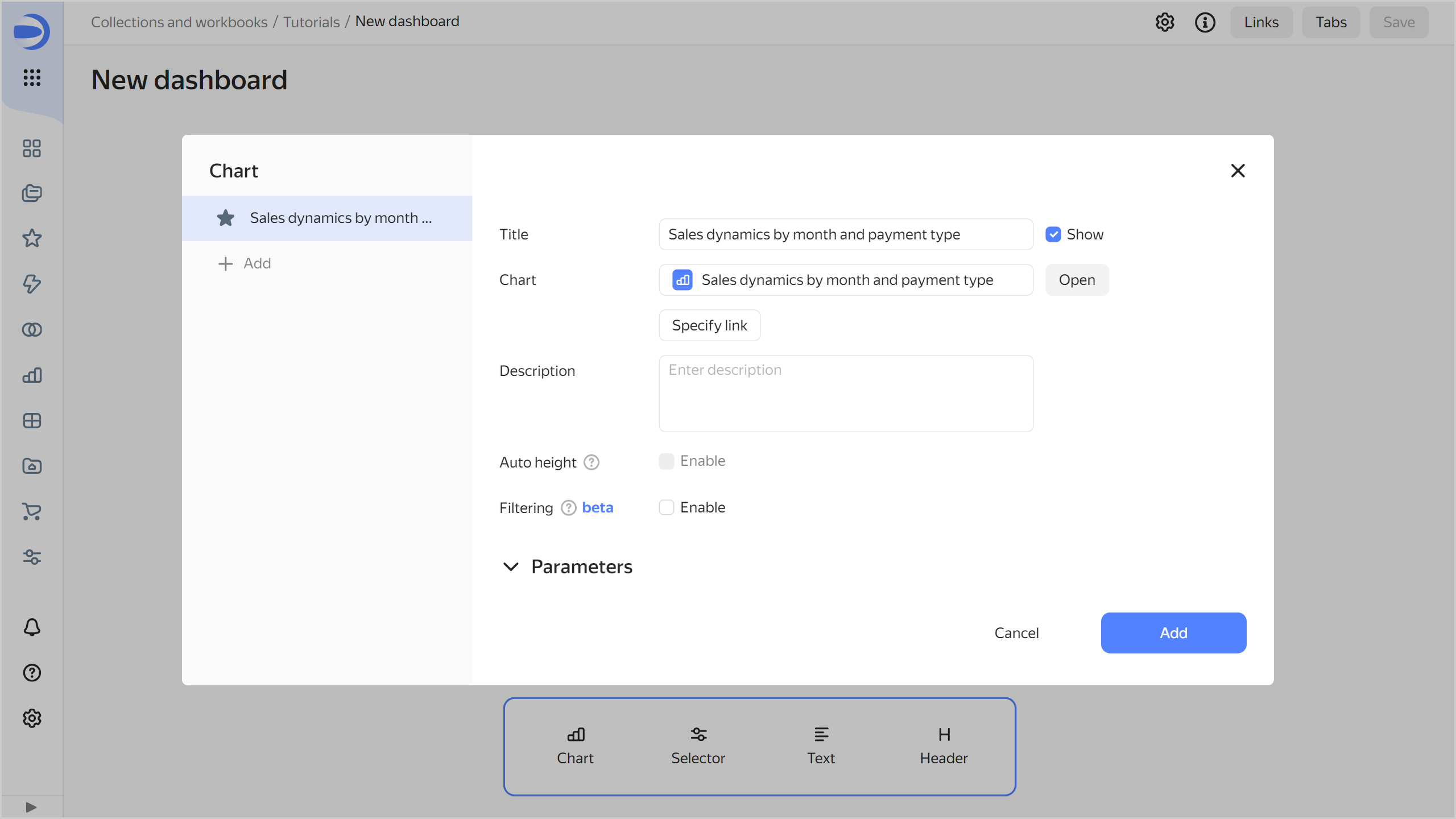

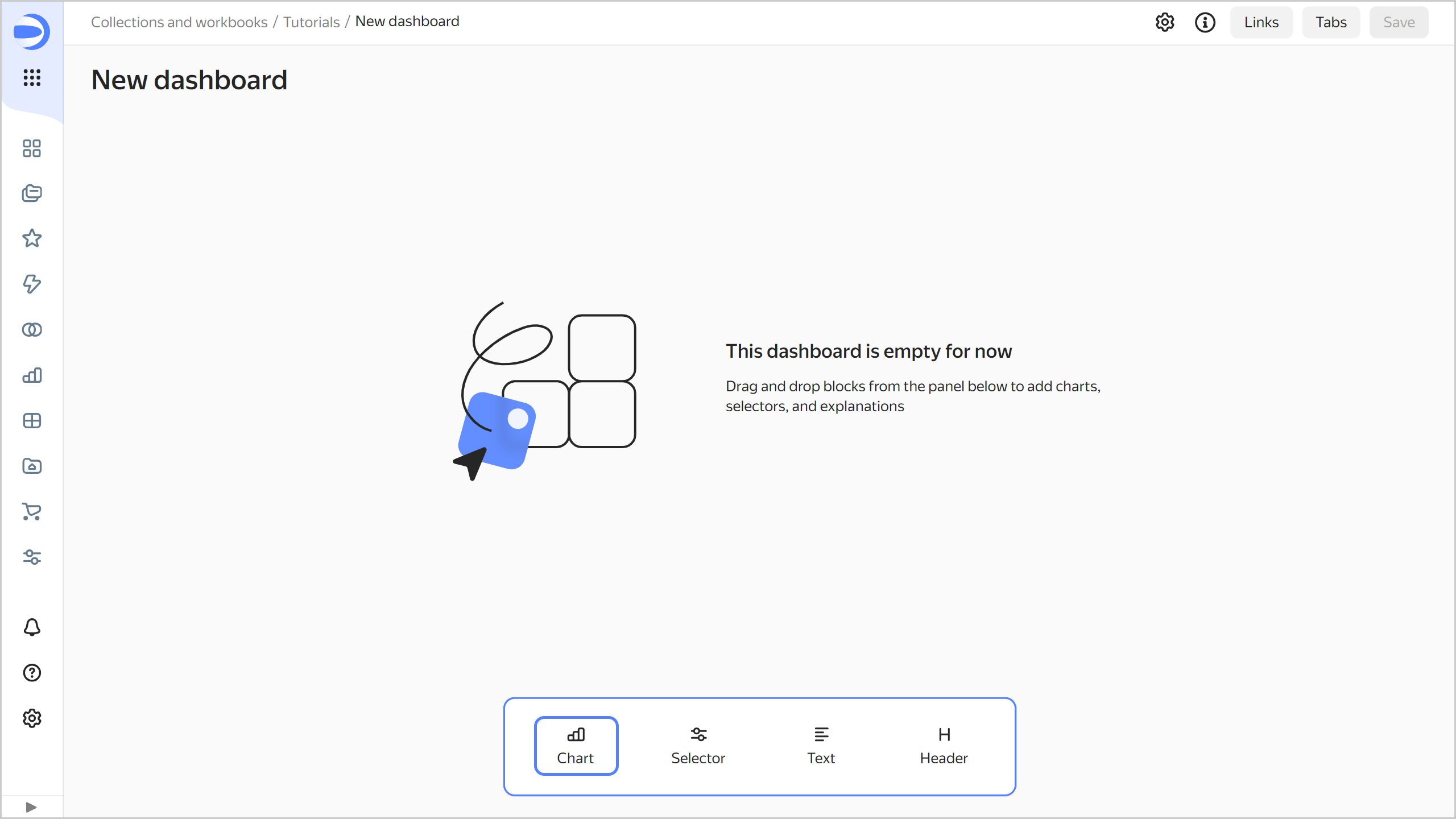

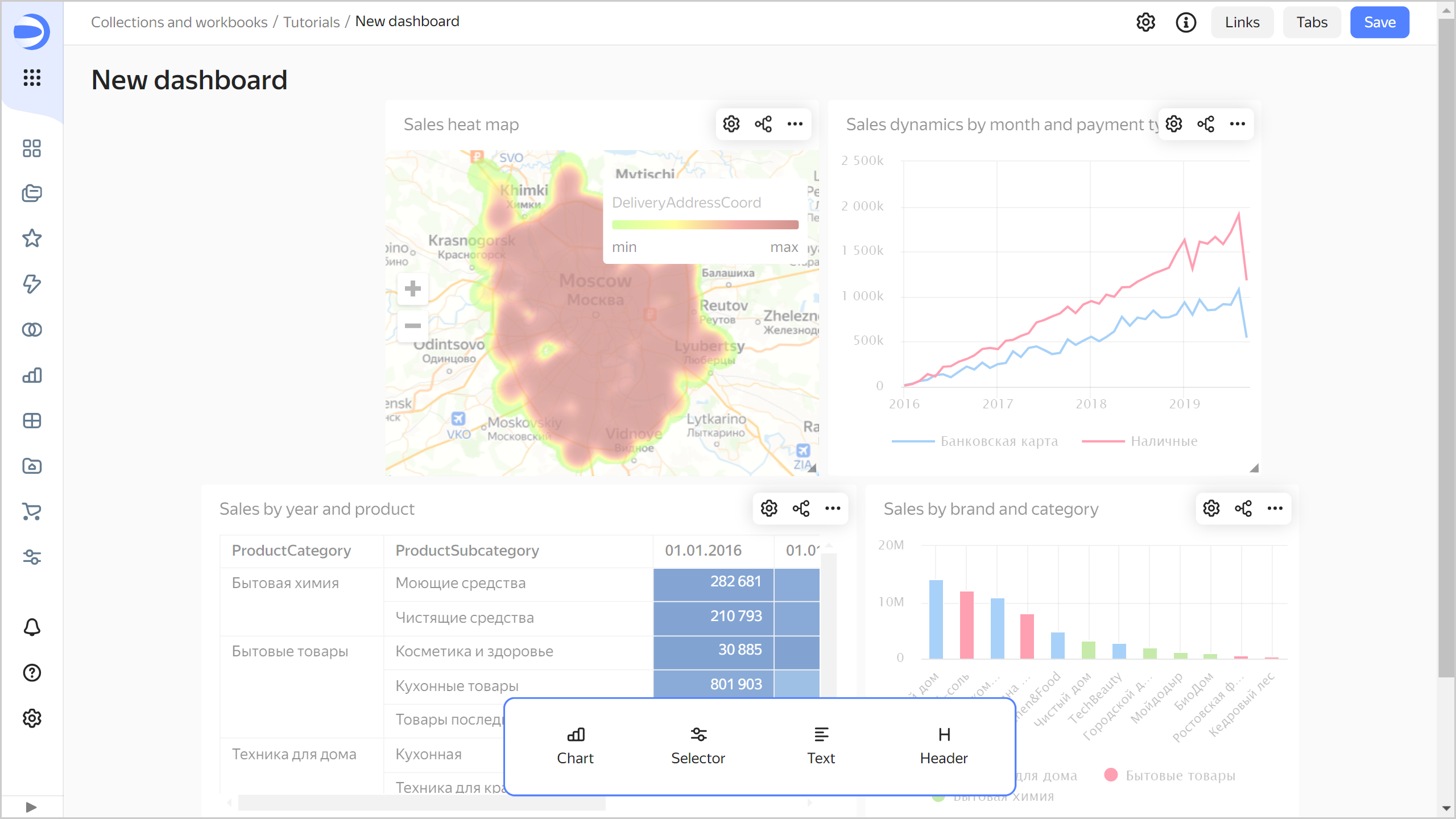

In the panel at the bottom of the page, select Chart.
-
In the window that opens, click Select.
-
Select the chart
Sales dynamics by month and payment type
. -
Click Add.
-
Repeat steps 3-6 to add these charts:
Sales by brand and category
Sales by year and product
Sales heat map
-
Adjust the size of the charts with your mouse and place them on the dashboard as you prefer.
Add selectors to the dashboard
Add selectors to filter your charts by date, Moscow district, product, and customer status:
-
In the panel at the bottom of the page, choose Selector.
-
Add the calendar selector for the order date:

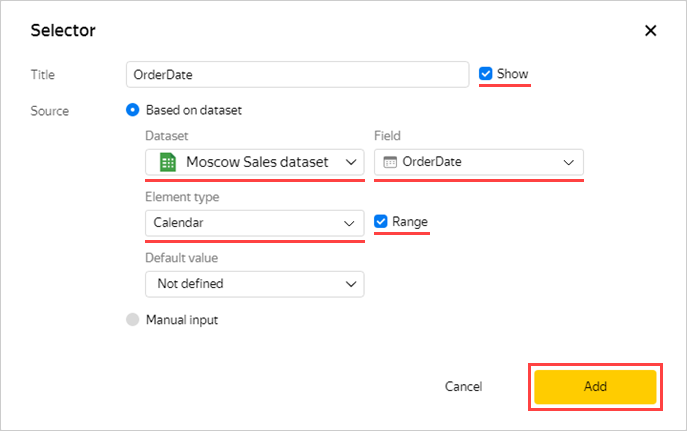

- Select
Moscow Sales dataset
. - Select the
OrderDate
field. - Enable Range.
- Click Save.
- Select
-
Add a product category selector:
- Make sure you selected the
Moscow Sales dataset
dataset. - Select the
ProductCategory
field. - Enable the Multiple choice option.
- Click Save.
- Make sure you selected the
-
Similarly, add selectors for the following fields:
ProductBrand
DeliveryDistrictName
DeliveryType
PaymentType
-
Position the selectors on the dashboard however you like.
-
Save the dashboard:
- In the top-right corner of the dashboard, click Save.
- Enter
Moscow Shops dashboard
for the dashboard name and click Create.

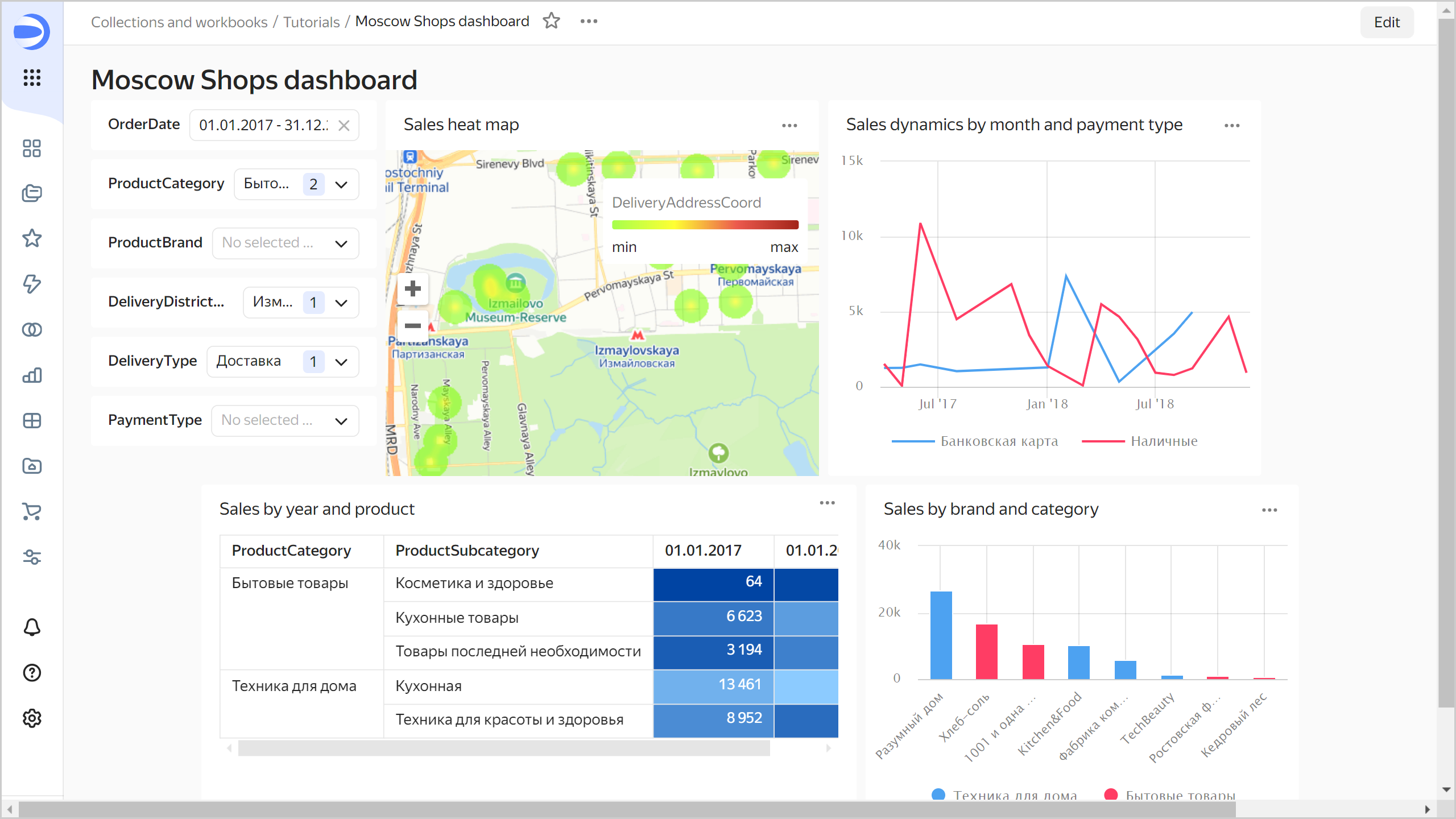

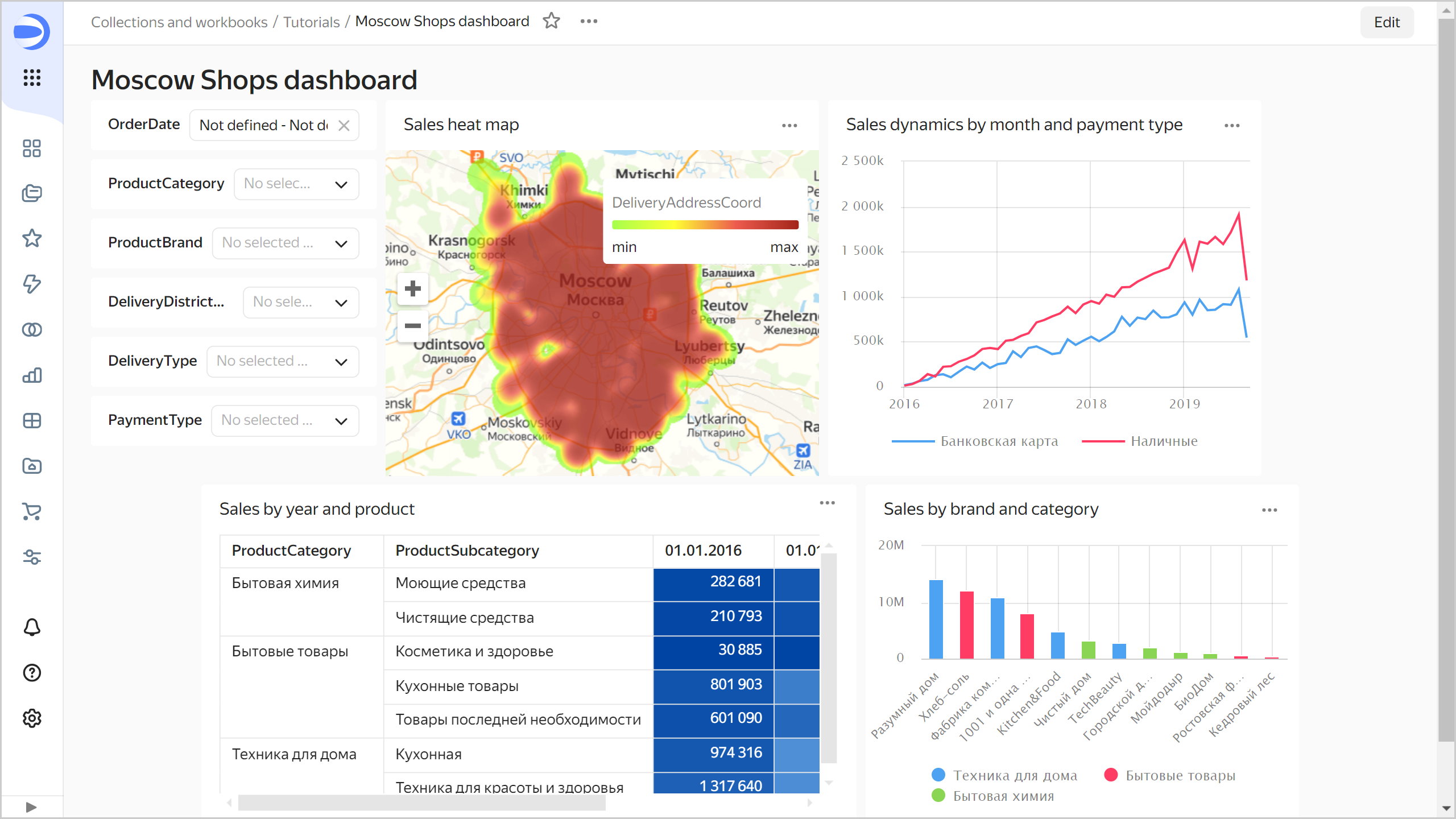

Your dashboard is ready.
You can now use various filter combinations to see how your sales evolved for different products and cross sections. For example, you can analyze the dynamics of sales with delivery for the Household goods
and Home appliances
categories within the Izmaylovo
delivery area over the period 01.01.2017 - 31.12.2018
and estimate the sales density on the heat map. To do this, set the selectors as follows:
OrderDate
:01.01.2017 - 31.12.2018
ProductCategory
:Household goods
andHome appliances
DeliveryDistrictName
:Izmaylovo
DeliveryType
:Delivery
