Building a table based on a dataset

Follow this guide to build a table in Editor based on a dataset. For convenience, we will use a connection and dataset from a deployed demo workbook as the data source.

Getting startedGetting started

To get started with DataLens:

If you have any technical questions about the service, contact Yandex Cloud support. To ask for advice, discuss the solution to your problem or best practices of the service, write to the DataLens chat in Telegram.

Deploy a demo workbookDeploy a demo workbook

1. Deploy the Demo Dashboard demo workbook from the marketplace.

2. Go to the workbook you deployed and find a dataset named 00: Sales on the Datasets tab.

3. Copy the dataset ID by clicking → Copy ID next to it. The ID will be copied to the clipboard.

Create a chart in EditorCreate a chart in Editor

1. In the workbook, click Create → Chart in Editor in the top-right corner. On the page that opens, select the Table visualization type.

2. Link the chart with the dataset by navigating to the Meta tab and adding the connection ID to links:

   {
       "links": {
           "salesDataset": "<dataset_ID>"
   	   }
   }


   Where:

   • <dataset_ID>: Dataset ID copied in the previous step.
   • salesDataset: Any alias name you assign to the dataset and use to request chart data from the source.

   Note

   You need the Meta tab to describe service information about the list of related entities. This information is used to detect what connections and datasets the chart is related to, as well as for the related objects dialog, when copying a workbook and when publishing to Public.

3. Get data from the data source by opening the Source tab and specifying the following:

   const {buildSource} = require('libs/dataset/v2');
   module.exports = {
       'salesSourceData': buildSource({
           datasetId: Editor.getId('salesDataset'),
           columns: ['Payment type', 'Request year', 'Request month', 'Sale, ₽'],
       }),
   };


   salesSourceData: Any alias name you assign to the object with requested chart data and use for access on the Prepare tab.

   The columns field value lists the fields from the dataset.

   Note

   In this example, the const {buildSource} = require('libs/dataset/v2'); service module is used for more convenient operations with datasets.

4. Clear the contents of the Params and Config tabs: they contain a template that is not relevant to our example.

5. On the Prepare tab, create a table:

   Note

   In this example, the const Dataset = require('libs/dataset/v2') service module is used for more convenient operations with datasets. The Dataset.getDatasetRows() method extracts data from the source specified in the datasetName parameter and provides the data in a convenient compact form.

   If you need to, you can use the Editor.getLoadedData() method to get the full data.

   const Dataset = require('libs/dataset/v2');
   const loadedData = Editor.getLoadedData();

   // Getting data from the dataset in a convenient format using the service module
   // datasetName: Dataset name on the Sources tab
   const data = Dataset.getDatasetRows({datasetName: 'salesSourceData'});

   // Helper function to group data by a specified dataset field name
   function groupBy(arr, field) {
       return arr.reduce((acc, item) => {
           const key = item[field];
           if (!acc[key]) {
               acc[key] = [];
           }
           acc[key].push(item);

           return acc;
       }, {});
   }

   // Array containing unique values of the "Order year" field, sorted in ascending numerical order
   const years = Array.from(new Set(data.map(d => String(d['Order year'])))).sort();

   // Common styles for table header cells
   const headStyles = {background: 'var(--g-color-base-misc-light)', verticalAlign: 'middle'};

   // Table header cell configuration
   const head = [
       {
           name: 'Payment type',
           formattedName: Editor.generateHtml({
               tag: 'span',
               content: [
                   {tag: 'span', content: 'Payment type'},
   				// tooltip for a cell header
                   {
                       tag: 'dl-tooltip',
                       content: ' ℹ',
                       style: {
                           display: 'inline-block',
                           margin: '0px 0px 0px 4px',
                           'line-height': '12px',
                           'text-align': 'center',
                           width: '16px',
                           height: '16px',
                           border: '1px solid #ccc',
                           'border-radius': '50%',
                       },
                       attributes : {
                           'data-tooltip-content': {
                               tag: 'i',
                               content: 'Tooltip content',
                           },
                       },
                   }
               ],
           }),
           css: headStyles,
           pinned: true,
       },
       // Creating columns based on the array of values from the "Order year" field obtained earlier
       ...years.map(year => ({
           name: year,
           css: headStyles,
       })),
       {
           name: 'Sales, all years',
           css: headStyles,
       },
   ];

   // Helper function to render a chart line
   function createChart(chartData) {
       const chartWidth = 80;
       const chartHeight = 40;

       // Calculating the minimum and maximum coordinate values
       const minX = Math.min(...chartData.map(d => d.x));
       const maxX = Math.max(...chartData.map(d => d.x));
       const minY = Math.min(...chartData.map(d => d.y));
       const maxY = Math.max(...chartData.map(d => d.y));

       // Calculating coordinates based on the chart container dimensions (chartWidth, chartHeight)
       const coords = chartData.sort((d1, d2) => d1.x - d2.x).map(d => ([
           (d.x - minX) / (maxX - minX) * chartWidth,
           (d.y - minY) / (maxY - minY) * chartHeight,
       ]));
       // Creating a path for the SVG line using the coordinates generated above
       let d = "";
       coords.forEach((_, x) => {
           d += d === "" ? "M" : " L";
           d += `${coords[x][0]} ${coords[x][1]}`;
       });
       // Creating an SVG with var(--g-color-base-brand) for line color and thickness of 2px
       return `
           <svg width="${chartWidth}" height="${chartHeight}">
               <path
                   d="${d}"
                   style="fill: none; stroke: var(--g-color-base-brand); stroke-width: 2;"
               />
           </svg>`;
   }

   const rows = [];

   // Helper function for number formatting
   const formatSalesValue = new Intl.NumberFormat('ru-RU').format;
   const postfix = ', ₽';

   // Rows grouped by the "Payment type" field
   const groupedData = groupBy(data, 'Payment type');
   // Generating and populating table rows for each grouped payment type
   Object.entries(groupedData).forEach(([key, items]) => {
       // Rows grouped by the "Order year" field
       const salesByYears = groupBy(items, 'Order year');
       // Calculating the sum for the "Sale, ₽" field across all years
       const totalSales = items.reduce((sum, d) => sum + d['Sale, ₽'], 0);
       rows.push({
           cells: [
               {
                   value: key,
               },
               // Creating columns based on previously prepared "Order year" values
               ...years.map(year => {
                   const salesByYear = salesByYears[year] ?? [];
                   const yearSales = salesByYear.map(d => ({
                       x: new Date(d['Order month']).getTime(),
                       y: d['Sale, ₽'],
                   }));
                   const maxSales = Math.max(...salesByYear.map(d => d['Sale, ₽']));
                   const minSales = Math.min(...salesByYear.map(d => d['Sale, ₽']));

                   return {
                       value: maxSales,
                       formattedValue: Editor.generateHtml(`
                           <div>
                               ${createChart(yearSales)}
                               <div style="margin-top: 8px;">Min: <b>${formatSalesValue(minSales)}${postfix}<b></div>
                               <div>Max: <b>${formatSalesValue(maxSales)}${postfix}</b></div>
                           </div>
                       `),
                   };
               }),
               {
                   value: totalSales,
                   formattedValue: formatSalesValue(totalSales) + postfix,
                   css: {
                       verticalAlign: 'middle',
                       textAlign: 'center',
                       fontSize: '16px',
                   },
               },
           ],
       });
   });

   module.exports = {head, rows};

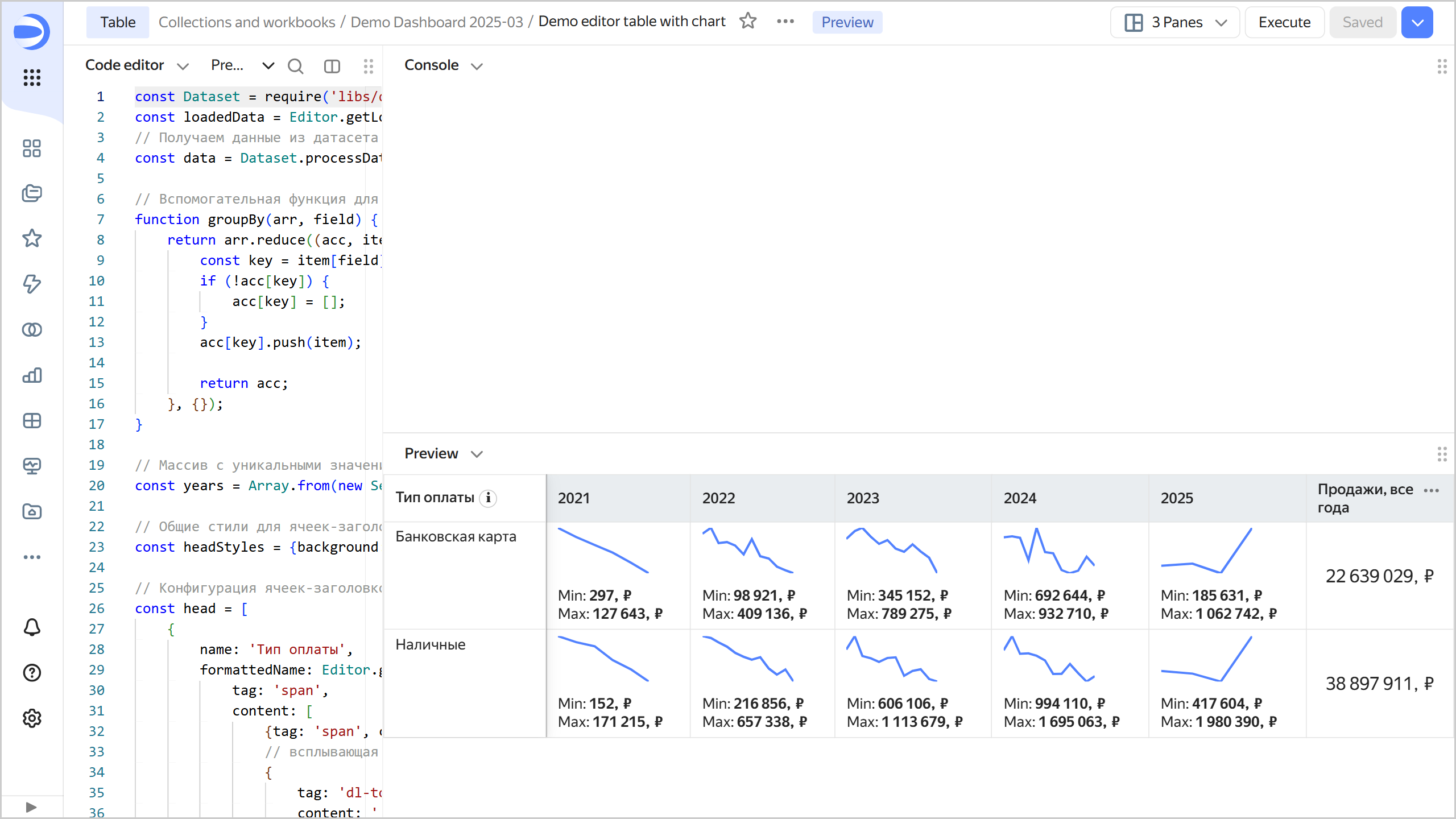

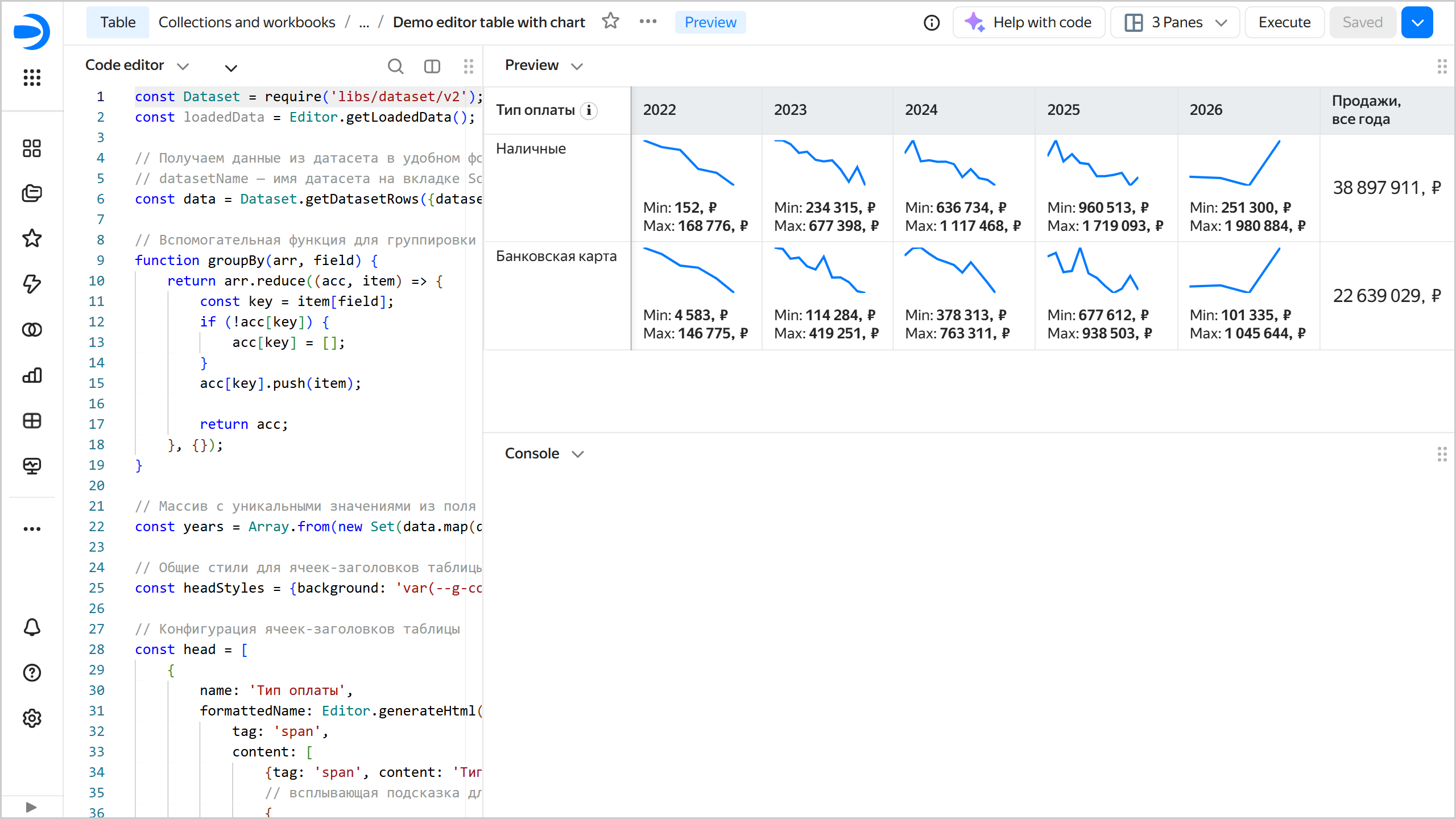

6. At the top of the chart, click Run. The preview will show the dataset as a table with rows grouped by the Payment type field and columns grouped by the Order year field, along with a monthly sales chart:



7. To save the chart, click Save in the top-right corner and enter a name for the chart.
