Working with a VM from a public image

Written by
Updated at October 15, 2024

Connecting to a VM

You can connect to a virtual machine via SSH using an SSH key pair, via OS Login, or using a serial console.

Connecting via SSH

This method for connecting to a virtual machine uses an SSH key pair: the public key resides on the VM, while the private one is kept by the user. Connecting with a key pair is more secure than with a username and password.

Note

SSH connections using a login and password are disabled by default on public Linux images that are provided by Yandex Cloud.

Creating an SSH key pair

  1. Open the terminal.

  2. Use the ssh-keygen command to create a new key:

    ssh-keygen -t ed25519 -C "<optional_comment>"

    You can specify an empty string in the -C parameter to avoid adding a comment, or you may not specify the -C parameter at all: in this case, a default comment will be added.

    After running this command, you will be prompted to specify the name and path to the key files, as well as enter the password for the private key. If you only specify the name, the key pair will be created in the current directory. The public key will be saved in a file with the .pub extension, while the private key, in a file without extension.

    By default, the command prompts you to save the key under the id_ed25519 name in the following directory: /home/<username>/.ssh. If there is already an SSH key named id_ed25519 in this directory, you may accidentally overwrite it and lose access to the resources it is used in. Therefore, you may want to use unique names for all SSH keys.

If you do not have OpenSSH installed yet, follow this guide to install it.

  1. Run cmd.exe or powershell.exe (make sure to update PowerShell before doing so).

  2. Use the ssh-keygen command to create a new key:

    ssh-keygen -t ed25519 -C "<optional_comment>"

    You can specify an empty string in the -C parameter to avoid adding a comment, or you may not specify the -C parameter at all: in this case, a default comment will be added.

    After running this command, you will be prompted to specify the name and path to the key files, as well as enter the password for the private key. If you only specify the name, the key pair will be created in the current directory. The public key will be saved in a file with the .pub extension, while the private key, in a file without extension.

    By default, the command prompts you to save the key under the id_ed25519 name in the following directory: C:\Users\<username>/.ssh. If there is already an SSH key named id_ed25519 in this directory, you may accidentally overwrite it and lose access to the resources it is used in. Therefore, you may want to use unique names for all SSH keys.

Create keys using the PuTTY app:

  1. Download and install PuTTY.

  2. Make sure the directory where you installed PuTTY is included in PATH:

    1. Right-click My computer. Click Properties.
    2. In the window that opens, select Additional system parameters, then Environment variables (located in the lower part of the window).
    3. Under System variables, find PATH and click Edit.
    4. In the Variable value field, append the path to the directory where you installed PuTTY.

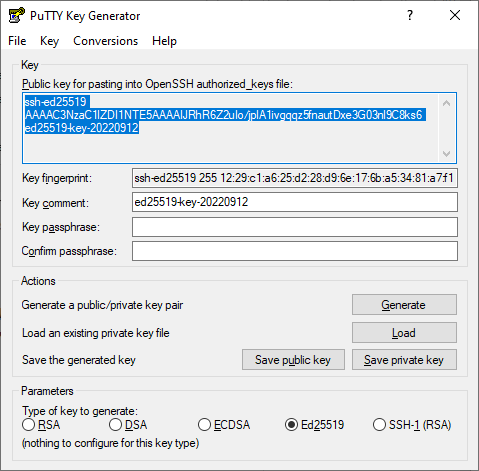

  3. Launch the PuTTYgen app.

  4. Select EdDSA as the pair type to generate. Click Generate and move the cursor in the field above it until key creation is complete.

    ssh_generate_key

  5. In Key passphrase, enter a strong password. Enter it again in the field below.

  6. Click Save private key and save the private key. Do not share its key phrase with anyone.

  7. Click Save public key and save the public key in the following file: <key_name>.pub.

Connecting using an SSH key pair

After the VM starts (its status is RUNNING), you can connect to it over SSH. To do this, use ssh in Linux, macOS, and Windows 10/11, or PuTTY in Windows 7/8.

To connect, specify the VM address. This can be either its IP address or FQDN. You can also connect from another Yandex Cloud VM using FQDN if this VM is connected to the same virtual network. You can find out the IP address in the management console by going to the Network section on the VM's page.

Connecting via OS Login

OS Login is used to provide users with SSH access to VMs through IAM. To access a VM via OS Login, enable OS Login access at the organization level.

To connect to a VM via OS Login , users must have the compute.osLogin or compute.osAdminLogin role and the VM must support OS Login at the OS level. You can create a new virtual machine with OS Login support or configure access via OS Login for an existing VM.

To connect to a virtual machine via OS Login, specify the VM name or ID.

You cannot use an SSH key to connect to VMs with OS Login access enabled over a standard SSH client.

Pre-installed software passwords

In addition to operating system distributions, there are public images with pre-installed software available in Cloud Marketplace. To get passwords to configure the pre-installed software in such images:

  1. Connect to the VM.

  2. You can find the pre-installed software passwords in the /root/default_passwords.txt file. Only a superuser has read and write access to the file. Get a list of passwords using this command:

    sudo cat /root/default_passwords.txt

If a public VM image has no pre-installed software, there will be no passwords file provided.

Using SSL

To use SSL, generate an SSL certificate yourself and configure the web server to use it.

To create an SSL certificate, you can use Yandex Certificate Manager. You can export the certificate and use it on the web server.

Filtering network traffic

On public image-based VMs, only those ports are open which are required for the configuration and operation of the pre-installed software.

You can view a list of open ports for a particular VM when connecting to it using an SSH key pair. To open additional ports, use the iptables utility.

At the cloud network level, security groups are used to filter the network traffic. To allow specific traffic for a virtual machine at the network level, configure a security group and associate it with the VM.

Install updates

On public image-based VMs, the OS and software are not updated automatically. You can update them on your own.
