Yandex Tracker: data export and visualization
Visualizing data from Tracker to Yandex DataLens allows you to build more advanced analytics than when using the Tracker tools.
To visualize data from Tracker to DataLens:
- Set up regular export of data to external storage.
- Visualize the required metrics and data using DataLens.
To visualize the data, follow these steps:
- Prepare your cloud.
- Create a DB for storing the Tracker data.
- Create an OAuth token for Tracker access.
- Create a Cloud Functions function for importing the data.
- Create a connection to DataLens.
- Create a dataset.
- Create a chart.
- Create a dashboard in DataLens and add charts to it.
Getting started
Note
We recommend creating a separate Tracker account to use the service.
Sign up for Yandex Cloud and create a billing account:
- Go to the management console
and log in to Yandex Cloud or create an account if you do not have one yet. - On the Yandex Cloud Billing
page, make sure you have a billing account linked and it has theACTIVE
orTRIAL_ACTIVE
status. If you do not have a billing account, create one.
If you have an active billing account, you can go to the cloud page
Learn more about clouds and folders.
Required paid resources
- Continuously running Managed Service for ClickHouse® cluster (see Managed Service for ClickHouse® pricing).
- Cloud Functions function usage (see Cloud Functions pricing).
If you no longer need the resources you created, delete them.
Create a DB for storing the Tracker data
- Go to the management console
. - In the top-left corner, click
All services. - Select Data platform → Managed Service for ClickHouse.
- Click Create ClickHouse cluster.
- Specify the cluster parameters:
- Basic parameters:
- Environment:
PRODUCTION
- Version:
22.8 LTS
- Environment:
- Resources:
- Platform:
Intel Ice Lake
- Type:
Standard
- Host class:
s3-c2-m8 (2 vCPU, 8 GB)
- Platform:
- Size of storage:
30 GB
- Hosts:
- Public access:
Enabled
- Public access:
- DBMS settings:
- User management via SQL:
Disabled
- Managing databases via SQL:
Disabled
- Username:
tracker_data
- DB name:
db1
- User management via SQL:
- Service settings:
- DataLens access:
Enabled
- Serverless access:
Enabled
For a full list of settings, see Managed Service for ClickHouse® settings.
- DataLens access:
- Basic parameters:
- Click Create cluster. Wait for the created cluster status to change to
Alive
. - Copy and save the host name for further setup.
![tracker-host-name]Cloud Functions(../../_assets/dl-tracker-host-name.png =680x372)
Create an OAuth token for Tracker access
-
Go to the Create an app
page. -
Fill out the fields below:
- Service name
- Platforms:
Web services
- Redirect URI: Click Enter URL for debugging or type
https://oauth.yandex.ru/verification_code
.
-
Under Data access, specify:
Read from tracker
Write in tracker
-
Click Create app.
-
In the window that opens, enter the following URL in the browser search bar:
https://oauth.yandex.ru/authorize?response_type=token&client_id=<app_ID>
Where
client_id
is the ID of the created application from the ClientID field. -
Log in under the Tracker account to be used for data visualization.
-
Save the received OAuth token.
Create a Cloud Functions function for importing the data
- Go to the management console
. - In the top-left corner, click
All services. - Select Serverless computing → Cloud Functions.
- Click Create function.
- Specify a name for the function and click Create.
- In the Editor window that opens, select the
Python
runtime environment. - Click Continue.
- In the Method field, click ZIP archive.
- Attach a test archive
. - In the Entry point field, specify
tracker_import.handler
. - Under Parameters, specify:
- Timeout, sec:
60
- Memory:
1024
- Environment variables:
-
TRACKER_ORG_ID
: Yandex 360 for business organization IDNote
If you are using a Yandex Cloud Organization organization (you can check this on the administration page
), replace theX-Org-ID
header withX-Cloud-Org-Id
in thetracker_import.py
function code. -
TRACKER_OAUTH_TOKEN
: OAuth token of the Tracker account -
CH_HOST
: Host name -
CH_DB
: Database name -
CH_USER
: Username -
CH_PASSWORD
: Password -
CH_ISSUES_TABLE
:tracker_issues
-
CH_CHANGELOG_TABLE
:tracker_changelog
-
TRACKER_INITIAL_HISTORY_DEPTH
:1d
-
CH_STATUSES_VIEW
:v_tracker_statuses
-
- Timeout, sec:
- Click Save changes.
- In the Testing tab, click Run test.
- The test result is a data import log:
{ "statusCode": 200, "headers": { "Content-Type": "text/plain" }, "isBase64Encoded": false, "body": "OK" }
- Create a trigger to regularly export new data to the DB:
- Open the Cloud Functions section.
- Click
→ Create trigger. - Set the trigger type to Timer.
- In the Cron expression field, select
Every day
. - Under Function settings, click Create new account.
- Enter the account name. By default, the account is assigned the
functions.functionInvoker
role to work with the trigger. - Click Create.
- Click Create trigger.
Create a connection in DataLens
-
Open the Managed Service for ClickHouse® cluster.
-
On the left side of the window, select
DataLens. -
Click Create connection.
-

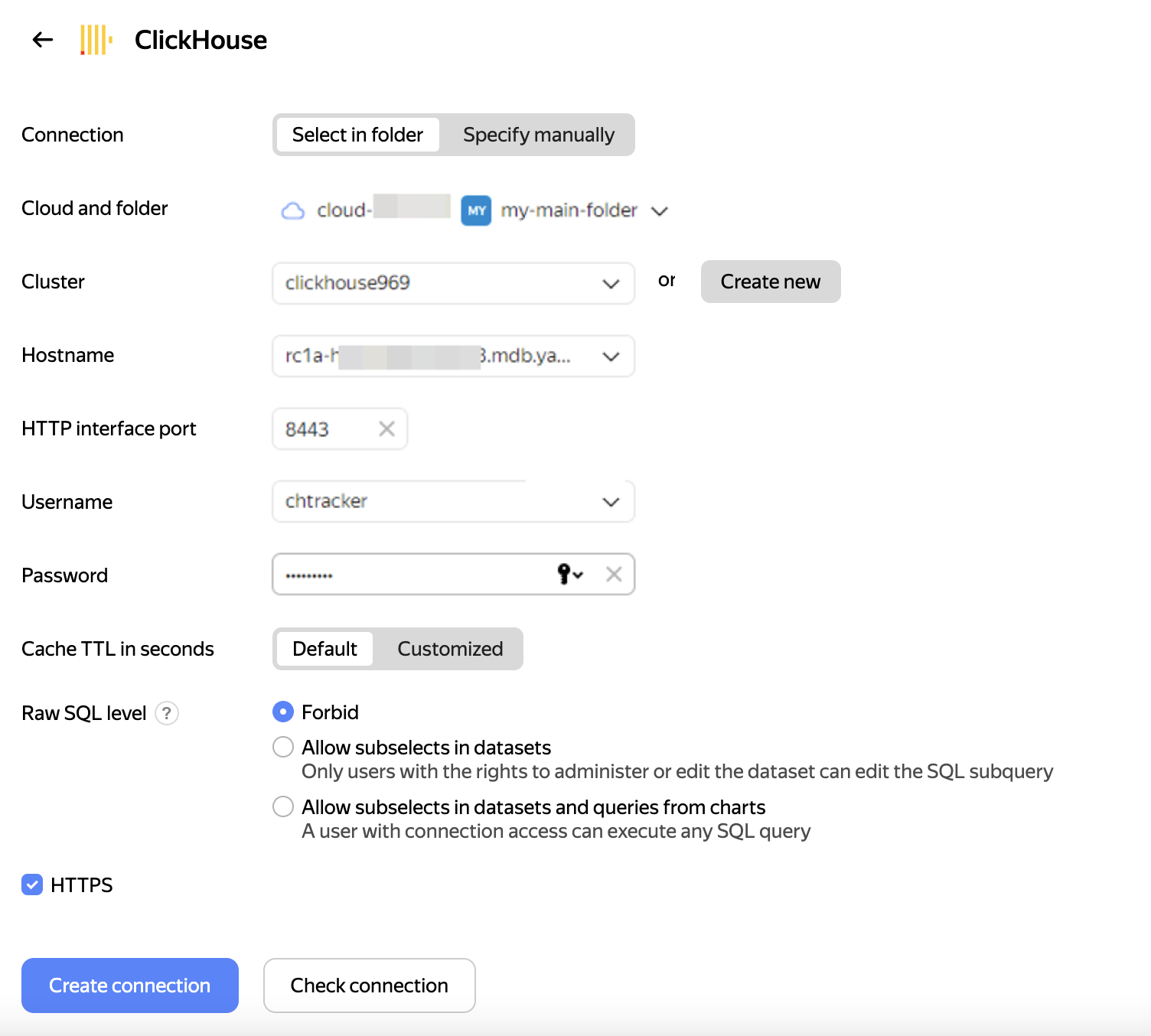

Specify the connection settings:
-
Connection:
Select in a folder
. -
Cluster: Cluster specified when creating a database.
-
Hostname: Host specified when creating a database.
-
HTTP interface port:
8443
. -
Username: Username specified when creating a database.
-
Password: Password specified when creating a database.
-
Cache TTL in seconds:
Default
. -
Raw SQL level:
Forbid
. -
HTTPS:
Enabled
.
-
-
Click Create connection.
Create a dataset
- Go to the connections page
. - Select a connection.
- In the top-right corner, click Create dataset.
- Drag one or more tables to the workspace:
db1.v_tracker_issues
: Current (most recent) issue cross-section.db1.v_tracker_changelog
: Issue parameter change history.Db1.v_tracker_statuses
: Status transition time based on the issue change history.
- Click Save.
Create a chart
-
Go to the DataLens
home page. -
Click Create chart.
-
In the top-left corner, click
Select dataset. -
In the Datasets drop-down list, select the dataset you created in the previous step.
-
On the top panel, select a visualization type. By default, the Column chart type is selected.
Create a dashboard and add charts to it
-
On the Yandex DataLens
home page, click Create dashboard. -
At the top of the dashboard page, click Add→ Chart.
-
Fill in the widget parameters. Pay close attention to the following fields:
- Name: Sets the name of the widget. It is displayed at the top of the widget.
- Chart: Sets the widget to add.
- Description: Sets the description of the widget. It is displayed at the bottom of the widget.
- Auto height: Sets the automatic height for Table and Markdown widgets. If this parameter is disabled, you can set the height of the widget on the page using the mouse.
-
Click Add. The widget will be displayed on the dashboard.
-
Save the dashboard:
- In the top-right corner of the dashboard, click Save.
- Enter a name for the dashboard and click Create.
For more information about setting up dashboards, see Yandex DataLens dashboard.
Sample dashboard based on data from the v_tracker_issues
table

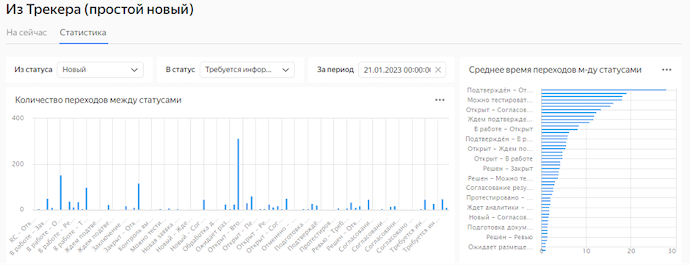

Sample dashboard based on data from the db1.v_tracker_statuses
table
How to delete the resources you created
To stop paying for the resources you created:
