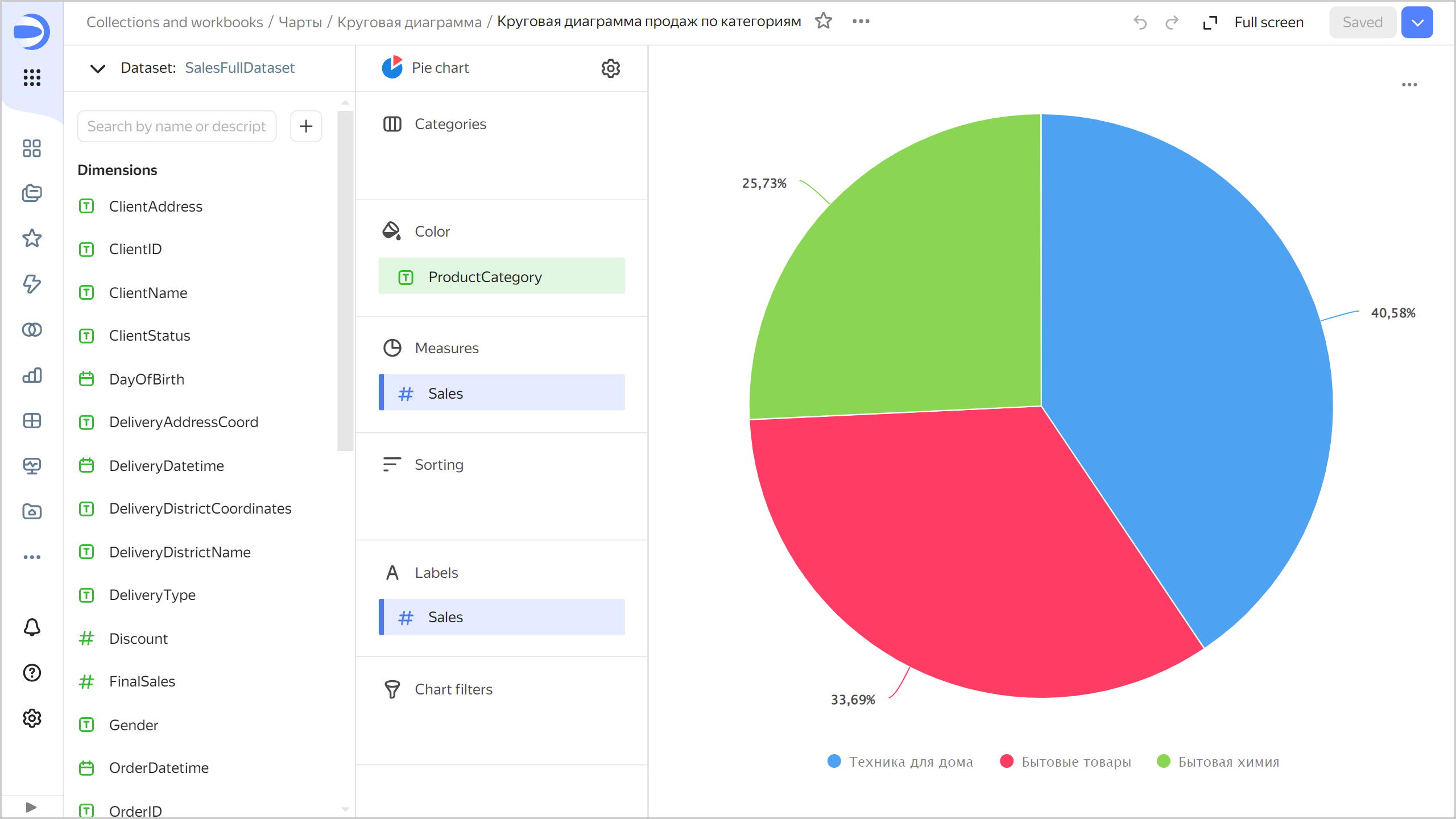

Pie chart

This chart shows a proportional relationship of different categories to a total using circle segments (sectors). The entire circle area is 100% and corresponds to the sum of all categories. The area of each segment corresponds to the percentage of a category in the total amount. Pie charts are a good choice for demonstrating proportions of a small number of segments.

You can highlight multiple small sectors belonging to a larger category with the same color.

Wizard sectionsWizard sections

Creating a pie chartCreating a pie chart

To create a pie chart:

1. Go to the DataLens home page.
2. In the left-hand panel, select Charts.
3. Click Create chart → Chart.
4. At the top left, click Select dataset and specify the dataset to visualize.
5. Select Pie chart as the chart type.
6. Drag a dimension from the dataset to the Categories section.
7. Drag a dimension from the dataset to the Color section.
8. Drag a measure from the dataset to the Measures section. The values will be displayed as pie chart areas.

RecommendationsRecommendations

• If there are many segments, the chart looks cluttered and it becomes difficult to understand the data. If there are more than 4-6 segments in one chart, consider combining the smallest of them into one segment, e.g., Other. You can do this by processing the data, e.g., by creating a calculated field in your dataset or chart.

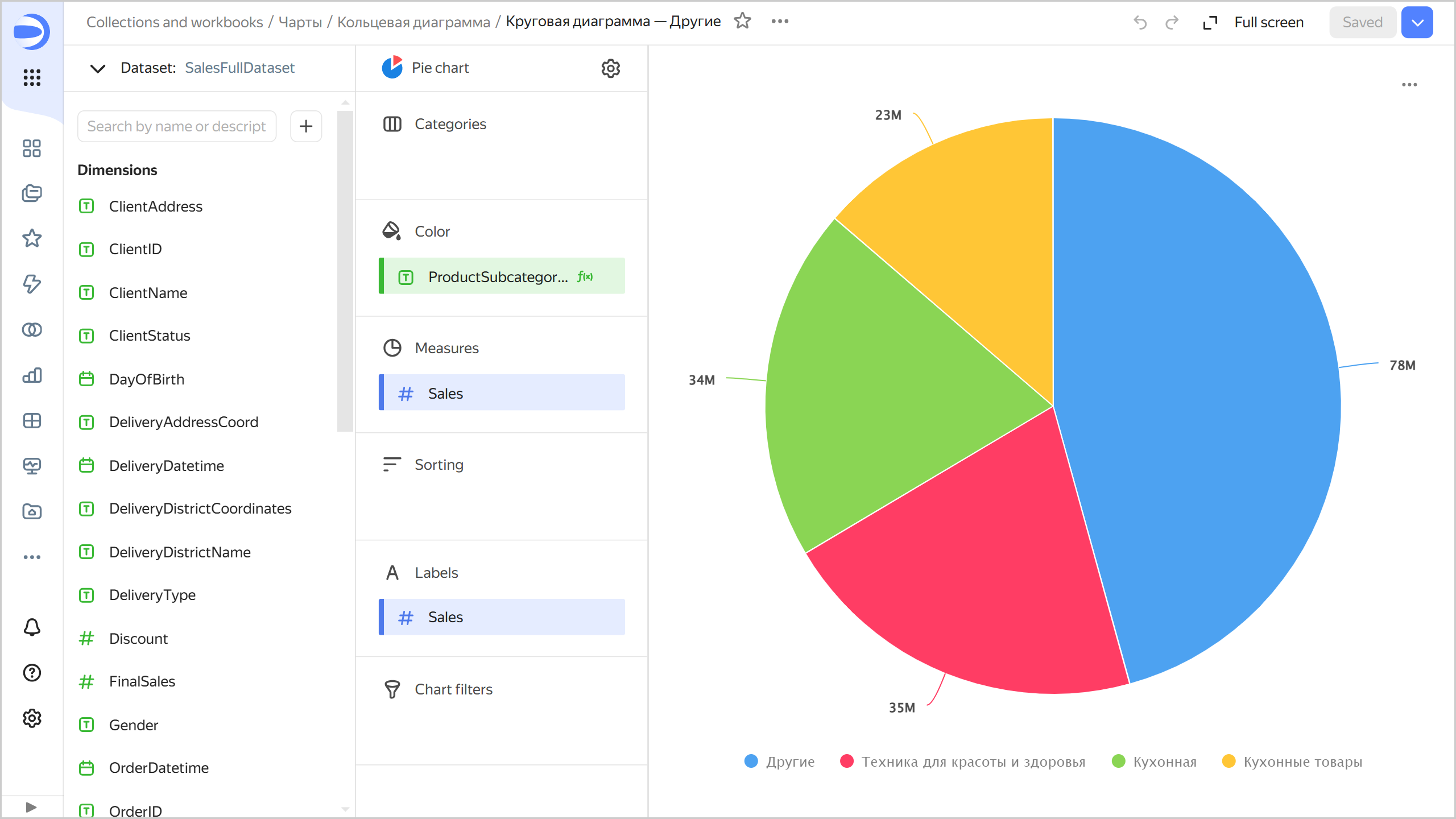

  Example of combining segments in a chart

  Source table

  ProductSubcategory	Sales
  Beauty and health products	11M
  Kitchenware	34M
  Kitchen products	23M
  Detergents	22.5M
  Health and beauty equipment	35M
  Non-essential goods	23M
  Cleaners	21.5M

  To combine multiple segments by the ProductSubcategory field into a joined group:

  1. Add a new field to the chart with the following formula:

     CASE [ProductSubcategory]
         WHEN "Beauty and health equipment" THEN "Beauty and health equipment"
         WHEN "Kitchen" THEN "Kitchen"
         WHEN "Kitchenware" THEN "Kitchenware"
         ELSE "Other"
     END


  2. Drag the new field to the Color section.

  3. Drag the Sales field to the Measures and Signatures sections.

  The sales amount will be calculated separately for the Beauty and health equipment, Kitchen, and Kitchenware subcategories; for other subcategories, in the Other group.



• Combine small segments into larger groups:

  • Use the Categories section to highlight segments.
  • Use the Color section to highlight groups.

• You cannot display negative and null values on this type of chart.

• Do not use pie charts to show changes to proportions over time or for precisely comparing data by category.
